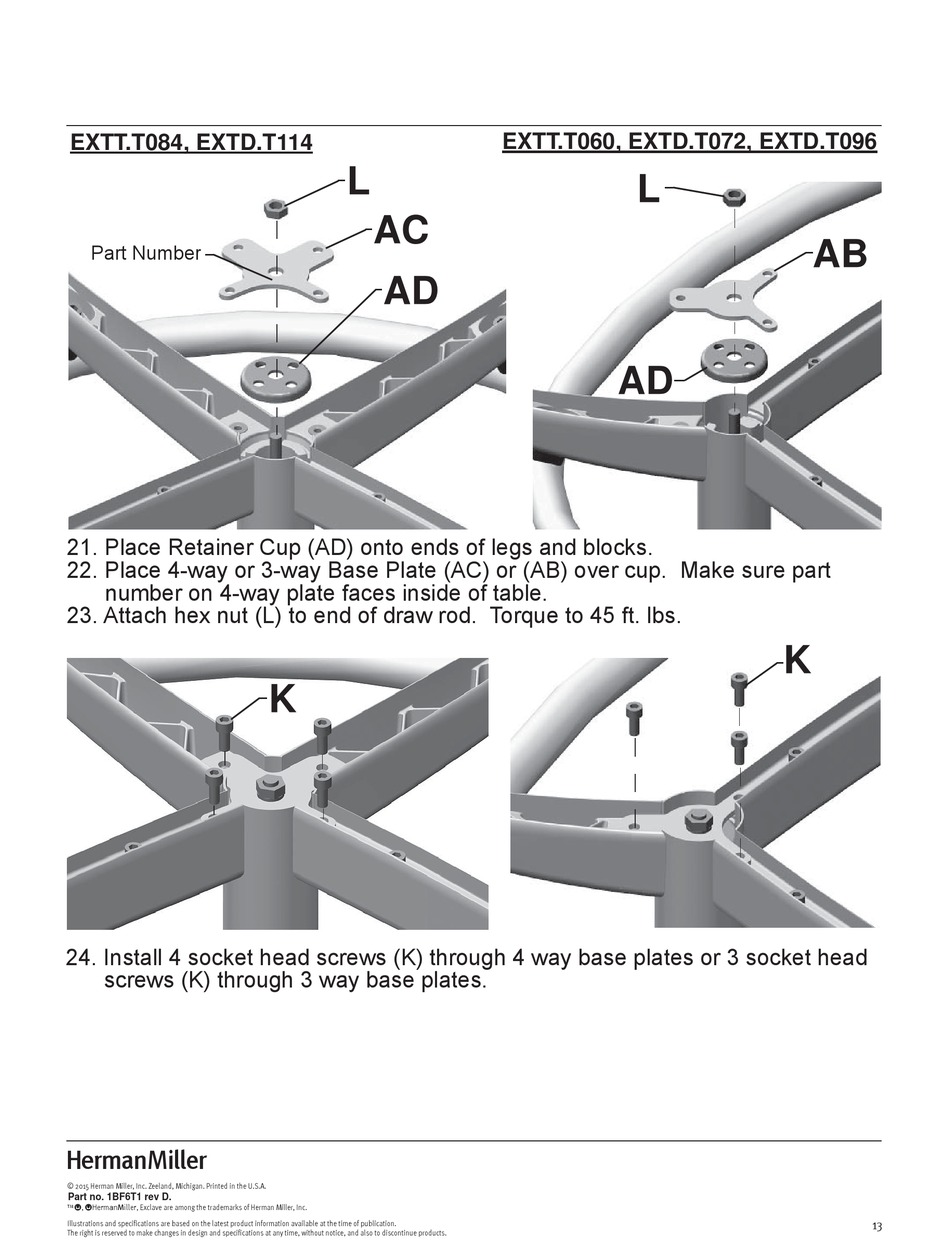

Herman Miller Exclave Meeting Table Installation And Disassembly page 13

EXTT.T084, EXTD.T114 EXTT.T060, EXTD.T072, EXTD.T096
L
L
AC
AB
Part Number
AD
AD
21. Place Retainer Cup (AD) onto ends of legs and blocks.
22. Place 4-way or 3-way Base Plate (AC) or (AB) over cup. Make sure part
number on 4-way plate faces inside of table.
23. Attach hex nut (L) to end of draw rod. Torque to 45 ft. lbs.
K
K
24. Install 4 socket head screws (K) through 4 way base plates or 3 socket head
screws (K) through 3 way base plates.
Z
© 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BF6T1 rev D.
Y, L, Exclave are among the trademarks of Herman Miller, Inc.
TM
13
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
