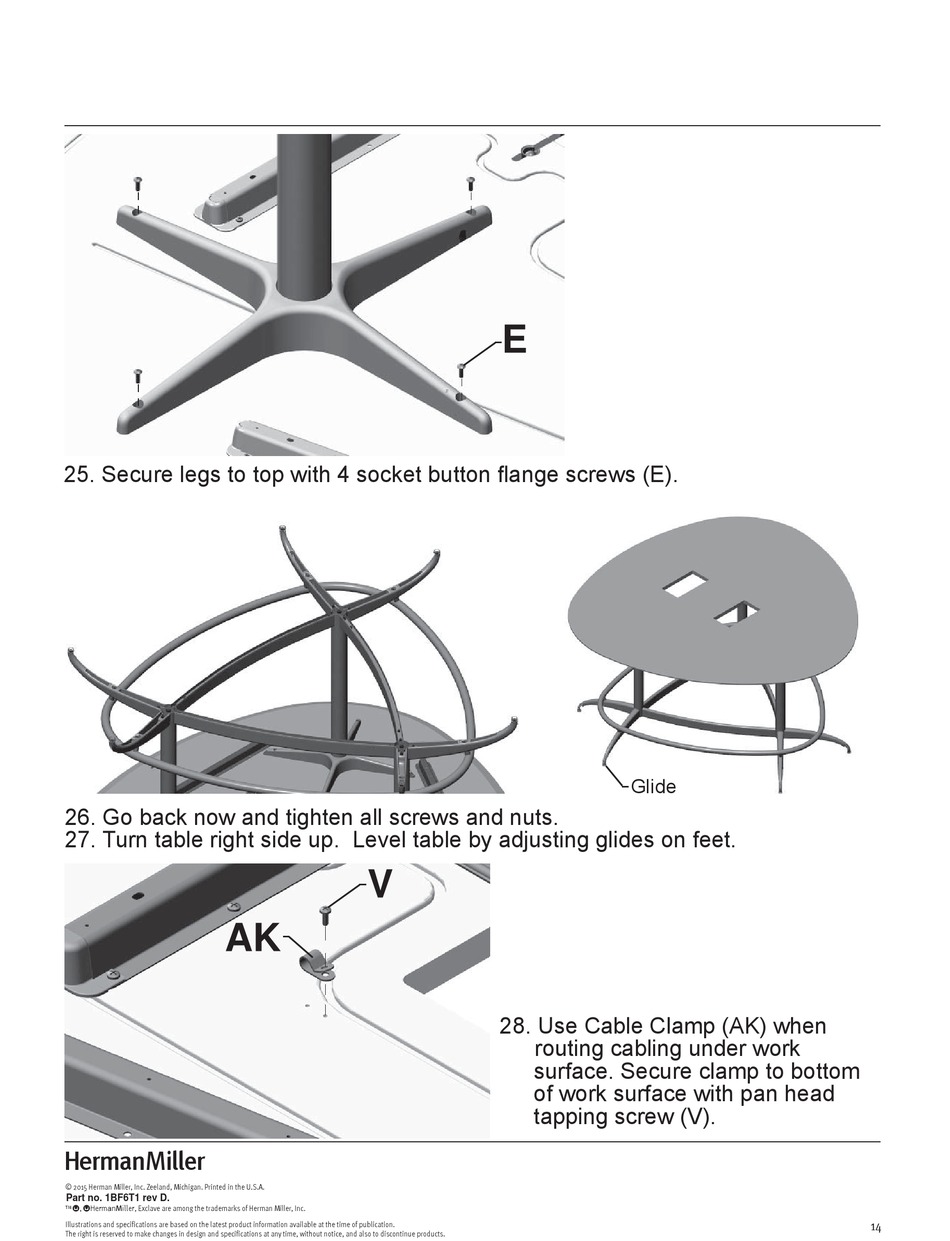

25. Secure legs to top with 4 socket button fl ange screws (E).
26. Go back now and tighten all screws and nuts.
27. Turn table right side up. Level table by adjusting glides on feet.
AK
Z
© 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BF6T1 rev D.
Y, L, Exclave are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
E
V
28. Use Cable Clamp (AK) when
routing cabling under work
s urface. Secure clamp to bottom
o f work surface with pan head
tapping screw (V).
Glide
