Herman Miller Exclave Meeting Table Installation And Disassembly
  1. Manuals
  2. Brands
  3. Herman Miller Manuals
  4. Indoor Furnishing
  5. Exclave Meeting Table
  6. Installation and disassembly

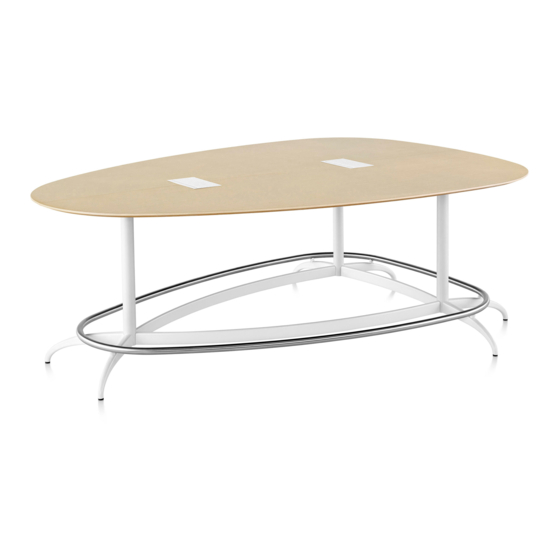

Herman Miller Exclave Meeting Table Installation And Disassembly

Hide thumbs

Advertisement

Quick Links

Download this manual
Y

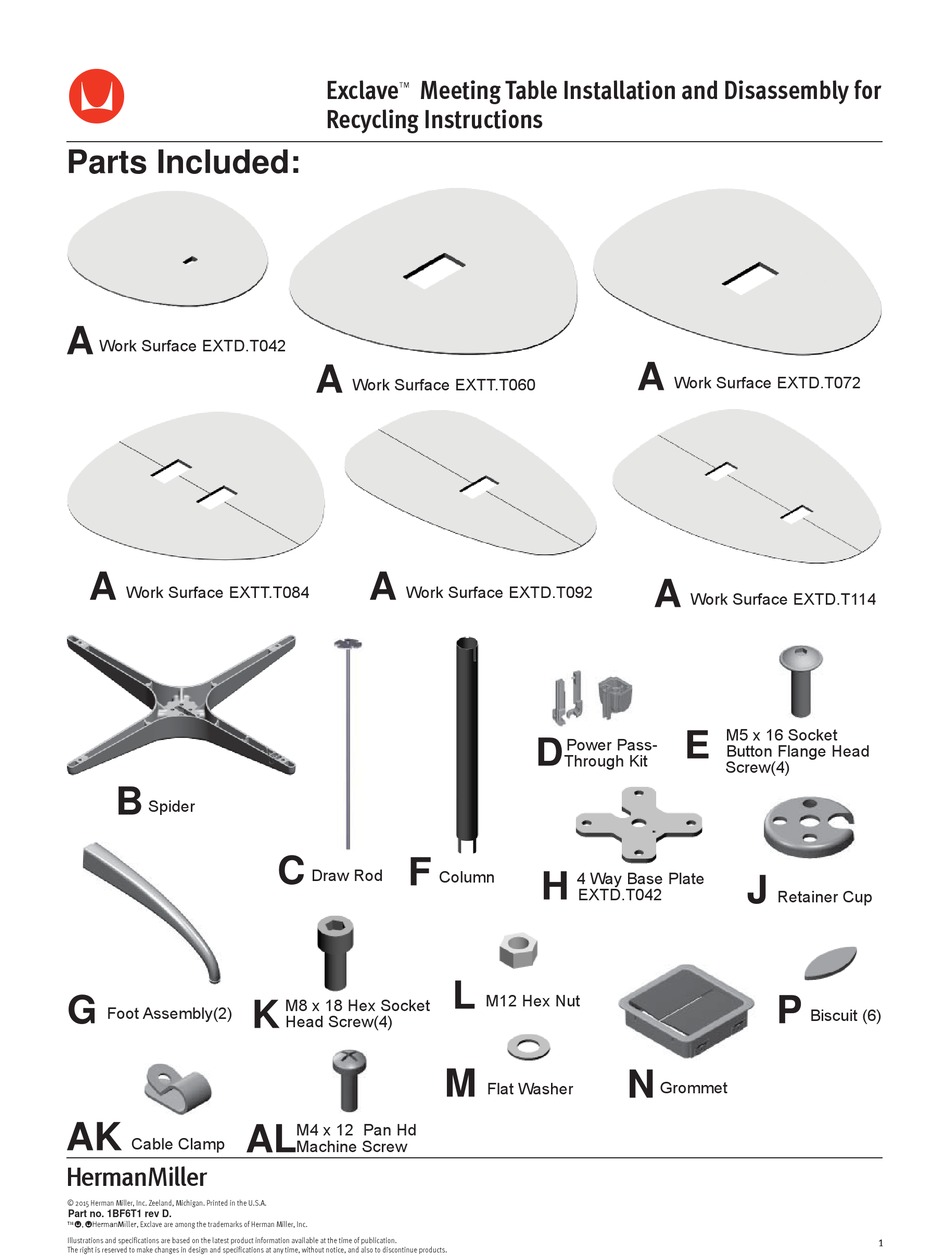

Parts Included:
A
Work Surface EXTD.T042
A
Work Surface EXTT.T084
B
Spider
G
Foot Assembly(2)
AK
Cable Clamp
Z
© 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BF6T1 rev D.
Y, L, Exclave are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Exclave
Meeting Table Installation and Disassembly for
™
Recycling Instructions
A
Work Surface EXTT.T060
A
Work Surface EXTD.T092
C
F
Draw Rod
M8 x 18 Hex Socket
K
Head Screw(4)
M4 x 12 Pan Hd
AL
Machine Screw
Power Pass-
D
Through Kit
Column
4 Way Base Plate
H
EXTD.T042
L
M12 Hex Nut
M
Flat Washer
A
Work Surface EXTD.T072
A
Work Surface EXTD.T114
M5 x 16 Socket
E
Button Flange Head
Screw(4)
J
Retainer Cup
P
N
Grommet
Biscuit (6)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Exclave Meeting Table and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Herman Miller Exclave Meeting Table

Summary of Contents for Herman Miller Exclave Meeting Table

  • Page 1 M4 x 12 Pan Hd Cable Clamp Machine Screw © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
  • Page 2 Column Column Column © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.

  • Page 3: Tools Needed

    5. Place column (F) over tie rod and into spider as shown. Make sure notches in column engage over ribs in spider. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
  • Page 4 Secure clamp to base plate with pan head machine screw (AL). © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
  • Page 5 4. Insert Joint Fasteners (R) into cutouts in surface halves. 5. Tighten fasteners with small allen wrench. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
  • Page 6 (V). Note: See next page for stiffener locations. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
  • Page 7 EXTD.T096 EXTT.T084 EXTD.T114 © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
  • Page 8 12. Place spiders on work surface, rotating until arm with arm fi ller   a lign with slot     i n work surface. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D.
  • Page 9 COLUMN-SEATED-8' TABLE BACK Note: Front refers to one column end of table. Back refers to two column end. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
  • Page 10 fl atwasher (M) and hex socket head screw (Z). See product foot confi guration on next page. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
  • Page 11 Foot Foot EXTT.084 © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
  • Page 12 Make sure blocks fully engage onto columns. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
  • Page 13 24. Install 4 socket head screws (K) through 4 way base plates or 3 socket head screws (K) through 3 way base plates. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
  • Page 14   o f work surface with pan head   tapping screw (V). © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
  • Page 15 - Run wires and cabling through riser. Secure to work surface with cable clamps as described in step 28. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
  • Page 16 Cut out size and location for retrofi tting Electrical Distibutor into tops. Note: Herman Miller not responsible for any damages done to tops during this process. 9.5’ (EXTD.114)Table Note: 9.5’, 8’ & 6’ tables have this size cut out 163.83mm 78.14”...
  • Page 17 12.45” 163.83mm 6.45” © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
  • Page 18 Non-ferrous metals should be separated and recycled separately. To disassemble product, reverse the above installation steps. © 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Part no. 1BF6T1 rev D. Y, L, Exclave are among the trademarks of Herman Miller, Inc.
