Herman Miller Exclave Meeting Table Installation And Disassembly page 4

G
G

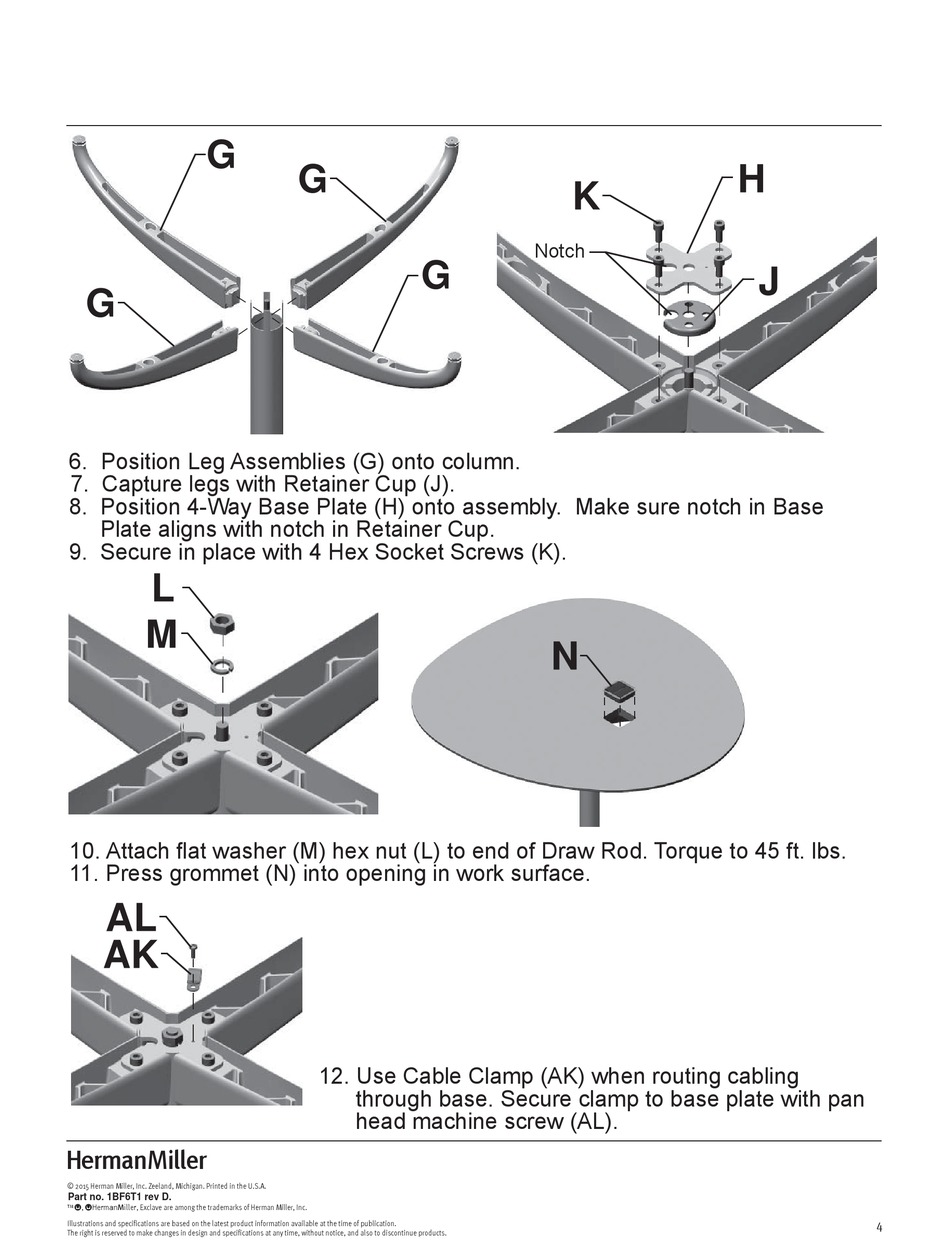

6. Position Leg Assemblies (G) onto column.
7 . Capture legs with Retainer Cup (J).
8. Position 4-Way Base Plate (H) onto assembly. Make sure notch in Base
Plate aligns with notch in Retainer Cup.
9. Secure in place with 4 Hex Socket Screws (K).
L
M
10. Attach fl at washer (M) hex nut (L) to end of Draw Rod. Torque to 45 ft. lbs.
11. Press grommet (N) into opening in work surface.
AL
AK
Z
