Herman Miller Exclave Meeting Table Installation And Disassembly page 10

EXTT.
AJ

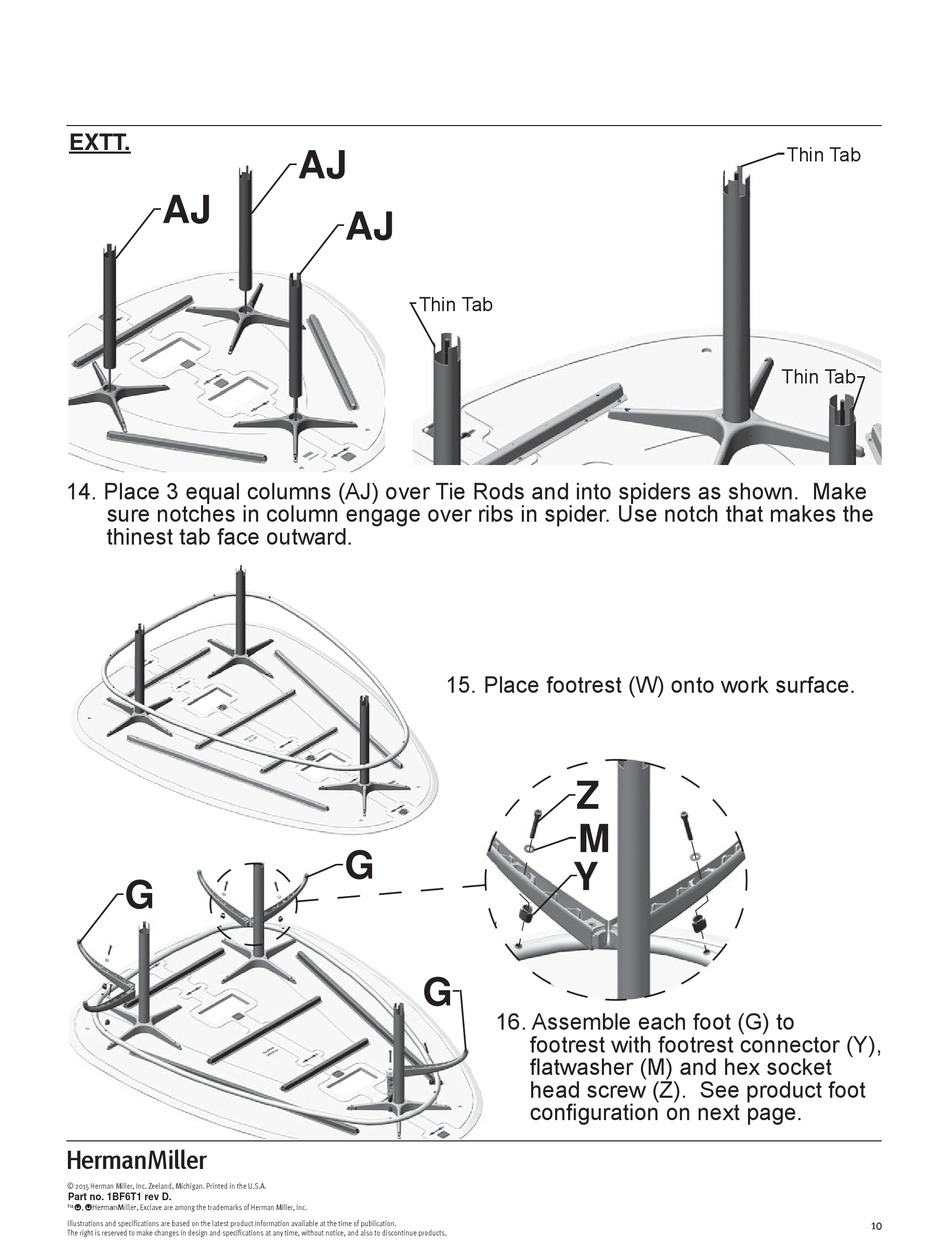

14. Place 3 equal columns (AJ) over Tie Rods and into spiders as shown. Make
sure notches in column engage over ribs in spider. Use notch that makes the
thinest tab face outward.
G
Z
© 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BF6T1 rev D.
Y, L, Exclave are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
AJ
AJ
Thin Tab
15. Place footrest (W) onto work surface.
G
G
Z
M
Y
16. Assemble each foot (G) to
footrest with footrest connector (Y),
fl atwasher (M) and hex socket
head screw (Z). See product foot
confi guration on next page.
Thin Tab
Thin Tab
10
