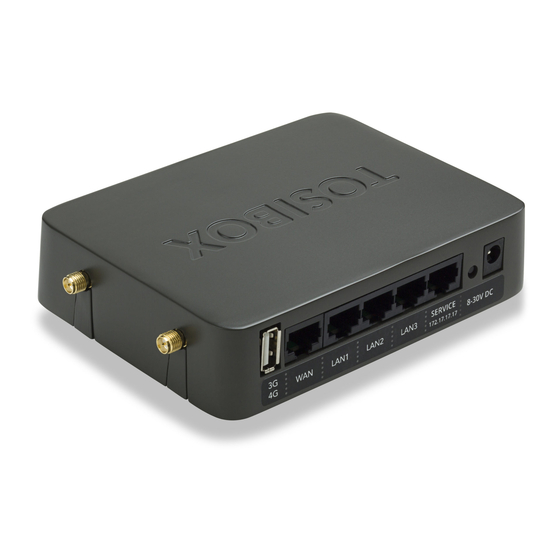

Tosibox Lock 100 Quick Start Manual
Hide thumbs
Also See for Lock 100:
- User manual (70 pages) ,
- Quick start manual (2 pages) ,
- User manual (44 pages)
Advertisement
1

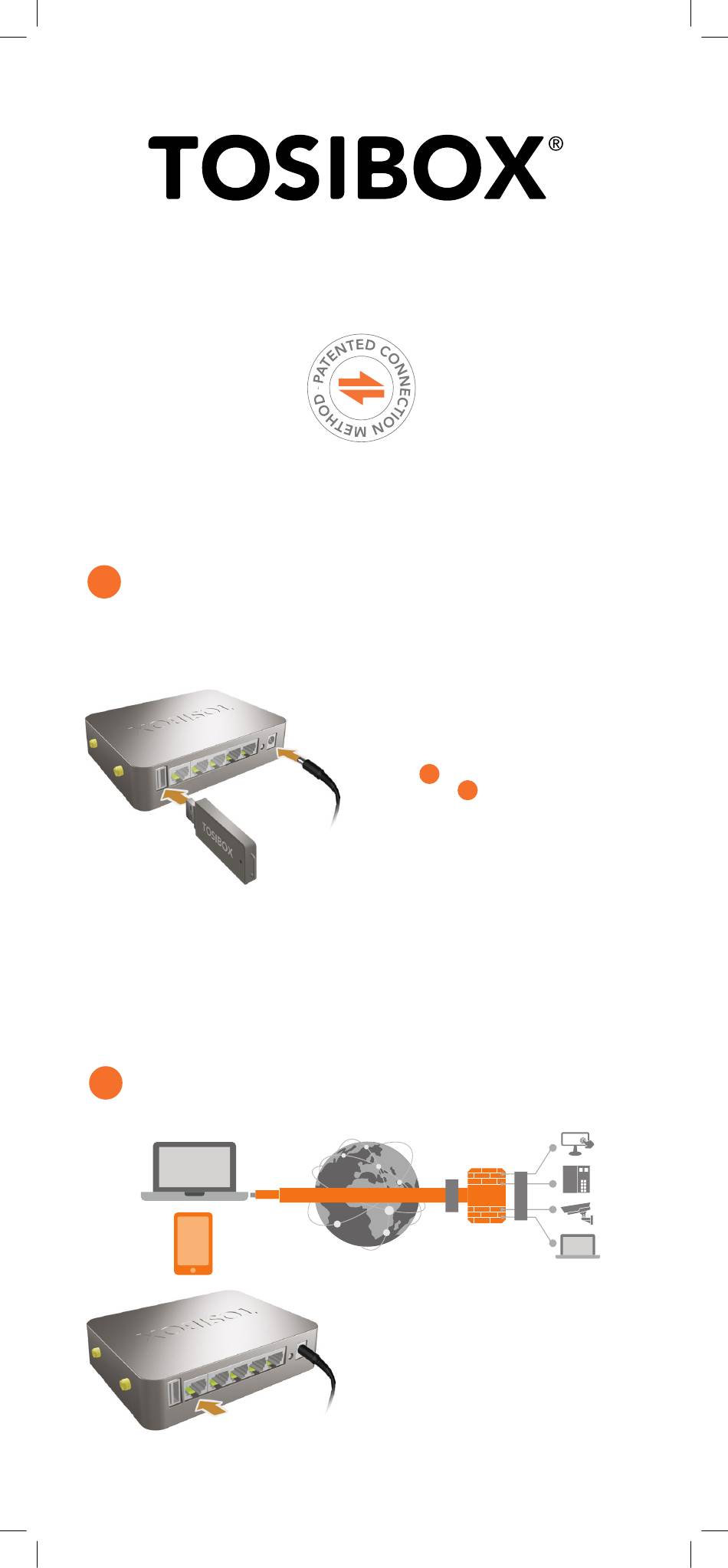

Matching the Lock with the Key
TOSIBOX
®
Lock
TOSIBOX
®
Key
Deploying into Broadband Networks
2a
PC
®
TOSIBOX
Mobile
Client
WAN
Internet /xDSL router
Lock 100
Quick Start Guide
Copyright © Tosibox Oy, 2019
1.
2.
3.
AC Adapter
VPN tunnel through Internet
®
TOSIBOX
Key
1.
2.
Connect the AC adapter to the Lock and wait
for 2 minutes.
Insert the Key into the USB port of the Lock. When
the LED on the Key stops blinking, (after approx.
10 seconds) the matching is complete and you can
remove the Key from the USB port.
2a
Go to
if deploying into broadband networks
(ethernet) or
if deploying into mobile
2b
networks.
L
W
®
TOSIBOX
A
A
Lock
N
N
Firewall
Connect an Internet-connected ethernet cable to
the Lock's WAN port.
Plug the devices into the Lock's LAN ports (LAN
1-3 or connect wirelessly via WLAN). If the devices
have static IP addresses, please see
Lock
in the TOSIBOX
®
user manual.
HMI
PLC
Camera
PC
Deploying the
