Tosibox Lock 200 Quick Start Manual

1

Matching the Lock with the Key

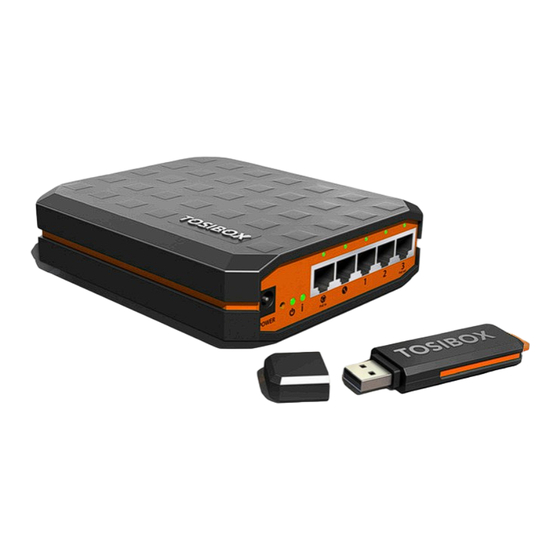

TOSIBOX ® Lock
AC Adapter
Power 8-27V DC
1.
2.
3.

Deploying into Broadband Networks

2a
PC
®
TOSIBOX
Mobile
Client
Lock 200
Quick Start Guide v1.5
Copyright © Tosibox Oy, 2017
Connect the AC adapter to the Lock and wait for 2 minutes.
Insert the Key into the USB port of the Lock. When the LED on the Key
turns off or the Info LED on Lock front panel stops blinking, (after approx.
10 seconds) the matching is complete and you can remove the Key from
the USB port.
Go to 2a if deploying into broadband networks (ethernet) or
Deploying Into Mobile Networks. If deploying Locks as DHCP client into
existing networks, please see the TOSIBOX
VPN tunnel through Internet
®
TOSIBOX
Key
® user manual.
W
A
N
1. Connect an Internet-connected ethernet cable
to the Lock's WAN port
2. Plug the devices into the Lock's LAN ports (LAN
1-3). If the devices have static IP addresses,
please see
user manual.
WAN
Internet /xDSL router
TOSIBOX ® Key
2b if
L
®
TOSIBOX
A
Lock
N
Firewall
.
Deploying the Lock in the TOSIBOX
HMI
PLC
Camera
PC
®
