EVAL-M3-IM564 User Manual
iMOTION™ Modular Application Design Kit
Main features of EVAL-M3-IM564

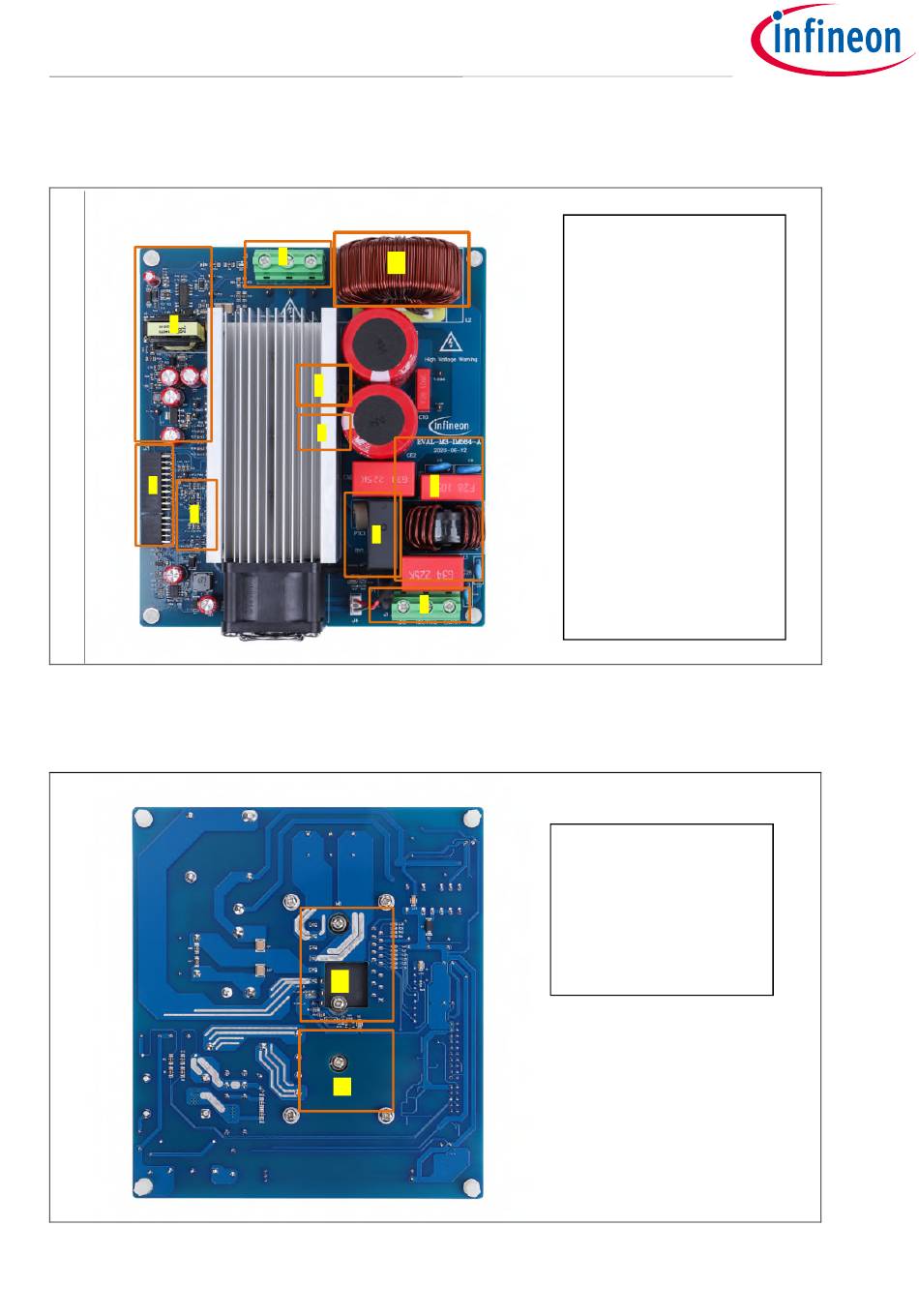

Figure 2 points out the functional groups on the top side of the EVAL-M3-IM564 evaluation board.
8
4
3
Figure 2 Functional groups of the EVAL-M3-IM564 evaluation board's top side
Figure 3 points out the functional groups on the bottom side of the EVAL-M3-IM564 evaluation board.
Figure 3 Functional groups of the EVAL-M3-IM564 evaluation board's bottom side
User Manual
9
10
5
6
7
2
1
11
12
10 of 47
1. J1 - AC Input connector
2. Relay, NTC and fuse
3. PFC gate drive and PFC
overcurrent protection
circuits
4. J3 – 30-pin iMOTION™
MADK-M3 interface
connector for controller
board
5. Current sensing shunt
resistor RS3
6. PFC current sensing
resistor RS4
7. EMI filter
8. Auxiliary power supply
9. J2 - Motor phase
connector
10. PFC inductor
11. CIPOS™ Mini IPM U4
12. Rectifier bridge D1
