Two Way Remote Control From a Cell phone
Easy to Install and Configure using SMS commands
(No PC required).
2 Digital Inputs (Volt Free)
2 x Relay Outputs rated 240Vac 5A
Optional external Temperature / Humidity Measurement
User Can set inputs and outputs Names
Outputs controlled by SMS text message
Automatically Sends SMS message when input activated
Up to 5 cell phones Notified
Waterproof Enclosure Rated IP68
2G GSM for World-wide use
Applications
Remote Maintenance, warnings / Alarms.
Irrigation Systems.
Remote system monitoring.
Plant Maintenance.
Security Systems
Alert / Panic caller

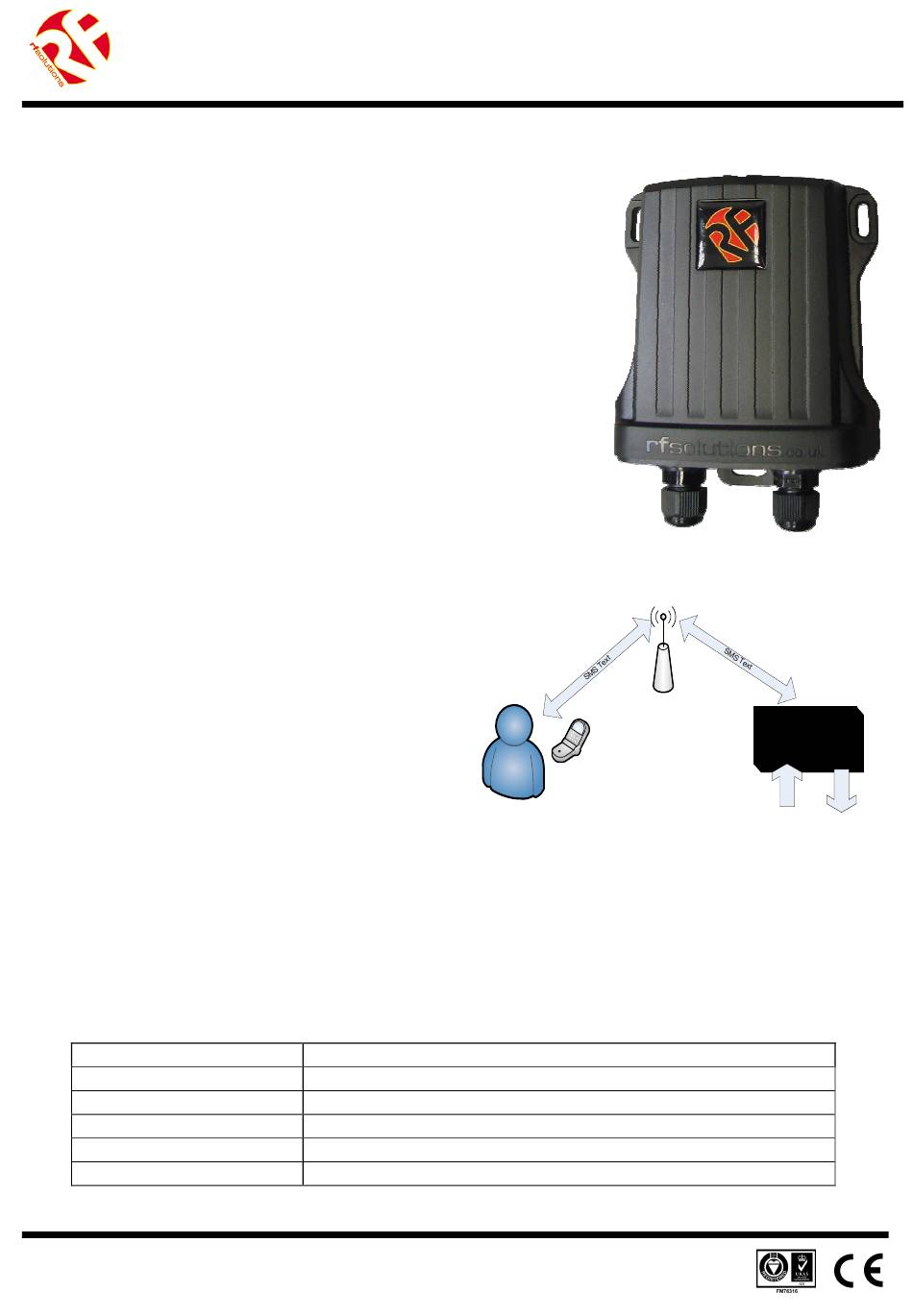

EZTEXT is a self contained two way Remote Control System which provides two changeover contact
Switching outputs and two 'no volt' switched inputs.
EZTEXT will send a custom text message to upto five users if its input has been activated or at a
temperature or humidity set point.
The user can control EZTEXT outputs by sending a text message. Custom names and messages may
be setup. Configuration of EZTEXT is easy though user controlled Text messages
PART No
EZTEXT
BAT-EZTEXT
PSU-12V1A-IP
CBA-UFLSMA
CBA-EZTEMP
DS-EZTEXT-3
EZTEXT - GSM R
©2013 REG No 277 4001, ENGLAND.
EMOTE
Description

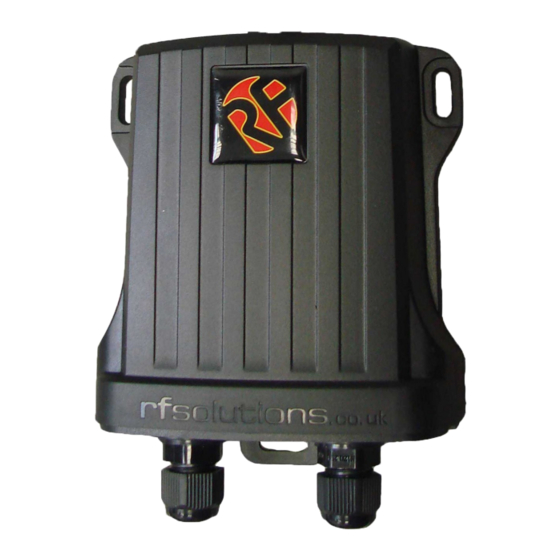

GSM Telemetry System IP68 Enclosure
Optional Lithium Battery 880mAH
Power Supply IP67
Cable assy for external Antenna
Temperature Sensor Cable
Page 1 of 14
C
ONTROL
GSM
Network
EZTEXT
Inputs
outputs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZTEXT and is the answer not in the manual?

Questions and answers

Summary of Contents for RF SOLUTIONS EZTEXT

  • Page 1 EZTEXT is a self contained two way Remote Control System which provides two changeover contact Switching outputs and two ‘no volt’ switched inputs. EZTEXT will send a custom text message to upto five users if its input has been activated or at a temperature or humidity set point.
  • Page 2: Emote Control

    This can be achieved by calling the service provider. The SIM card should be inserted into EZTEXT before applying power RF Solutions recommends O2 and Vodaphone SIM card and has carried out extensive testing using the SIM cards we have for these two networks.
  • Page 3 EZTEXT - GSM R EMOTE ONTROL 3. LED Indication at Startup Loging onto Network (traffic light sequence) Error! (All Flash ON / OFF together) Error - No GSM Service 1. Check SimCard 2. Check Antenna Connection 4. LED Indication After Startup (Normal Operation) Signal Strength Activity LED’s...
  • Page 4: Optional External Antenna

    SMS when power is switched to battery and when main power is restored. The battery is recharged and maintained when power is present In the event of a complete power loss, EZTEXT will retain user configured data, however the status of the relays will be lost.
  • Page 5 EZTEXT - GSM R EMOTE ONTROL 7. Optional Temperature / Humidity Measurement Using the Cable adaptor CBA-EZTEMP provides a 1metre plug in cable with temperature probe. This enables the EZTEXT temperature monitor and control functions Connect Cable CBA-EZTEMP Here Page 5 of 14 DS-EZTEXT-3 ©2013 REG No 277 4001, ENGLAND.
  • Page 6 If for any reason the unit password is lost, remove all power for 1 minute, and then start again. UNITPW#UID#UNITID 1234#UID#Door Alarm This sets the ‘identity’ of the EZTEXT unit, and will be included in any response text Unit Identity from EZTEXT. Response: The UNITID can be 4 to 10 characters.
  • Page 7: Input Commands

    EMOTE ONTROL 9. INPUT Commands. Title Command Description Example When the input changes this is the name that the EZTEXT will transmit in its text message 1234#IPNAME1,Gate Sets input 1 to be known as ‘Gate’ IPNAME Set an Input UNITPW#IPNAMEn#<name>...
  • Page 8 Requests the actual current value of the counter more activations required before text is sent Sets a timer (Max 65500 secs). When the EZTEXT input is activated the timer starts to countdown in seconds. 1234#IPDLY1,60 When the counter reaches zero, providing the input is still activated a text message Input 1 has a 60sec delay before text will be sent.
  • Page 9: Output Commands

    OUTPUT1= 500/34 Requests the current ‘on’ time setting for an output OPDLY? EZTEXT replies with the preset time delay output and the actual time that (output1 has been active for 34 out of a the output has been activated for...
  • Page 10 EZTEXT - GSM R EMOTE ONTROL 11. Power Fail Commands Title Command Description Example This command sets a number to text (max 5 nos) when Power Failed (only if optional battery fitted) PFNUM UNITPW#PFNUM#<numbertotext> 1234#PFNUM#00441273898000 Number to text Sets the number to text on power fail...
  • Page 11 EZTEXT - GSM R EMOTE ONTROL 12. Temperature Commands Command Description Description Example Request TEMP? UNITPW#TEMP? Current requests the current temperature. 1234# TEMP? Temperature 1234#TEMPNUM#00441234567891 UNITPW#TEMPNUM#<numbertotext> Sets the number 01234 567891 TEMPNUM Sets the cell phone nos (max of 5) linked with the temperature monitoring.
  • Page 12: System Commands

    ONTROL 13. System Commands Title Command Description Example Report GSM UNITPW#SIGQ 1234#SIGQ SIGQ Reports EZTEXT GSM signal strength as; Signal ‘POOR’ (consider alternative antenna) Response : Signal is Good Strength ‘OK’, or ‘Good’. Retrieve 1234#STATUS status of STATUS UNITPW#STATUS requests the current status of all inputs and outputs...
  • Page 13 Password and command OK but the variable data is incorrect Factory Reset Hold down the RESET button for approx10 seconds until all LEDS flash, then release. This will reset EZTEXT to factory default settings and restart. Reset Switch Page 13 of 14 DS-EZTEXT-3 ©2012 REG No 277 4001, ENGLAND.
  • Page 14: Technical Specifications

    EZTEXT - GSM R EMOTE ONTROL Technical Specifications Storage Temperature: -10 to +70 Celsius. Operating Temperature: 0 to +55 Celsius. EZTEXT Enclosure Rating IP68 EZTEXT Dimensions 130 x 112 x 42 mm Electrical Characteristics Typical Dimension Notes Supply Voltage Supply Current for EZTEXT:...
