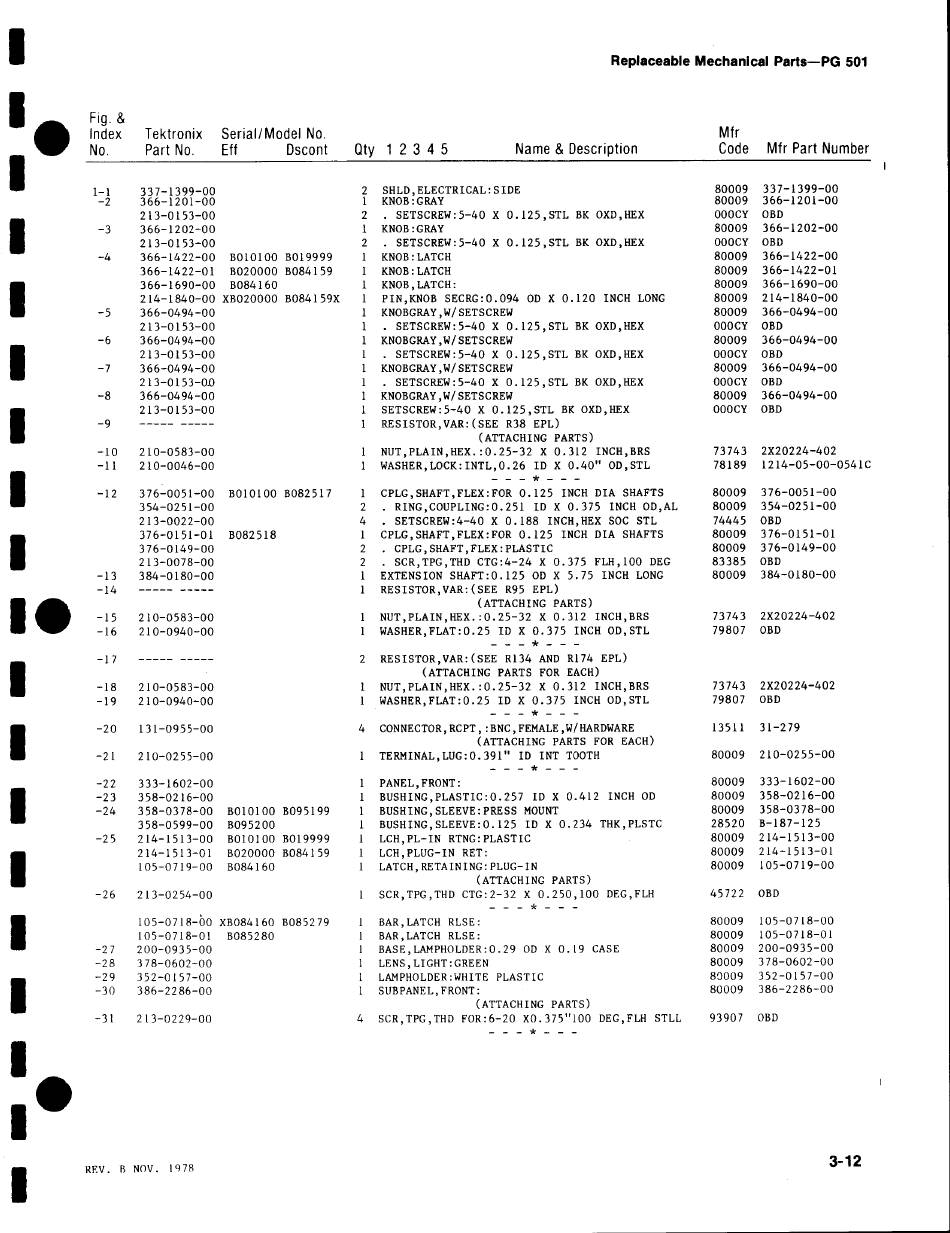

Replaceable Mechanical Pmts-PG 501
Fig . &
" Index Tektronix Serial/Model No .
Mfr
No .
Part No . Eff Dscont Qty 1 2 3 4 5 Name & Description
Code Mfr Part Number
-2 366-1201-00
1 KNOB :GRAY 80009 366-1201-00
213-0153-00
2 . SETSCREW :S-40 X 0.125,STL BK OXD,HEX OOOCY OBD
-3 366-1202-00 1 KNOB :GRAY 80009 366-1202-00
213-0153-00 2 . SETSCREW :S-40 X 0.125,STL BK OXD,HEX OOOCY
OBD
-4 366-1422-00 BO10100 B019999 1 KNOB :LATCH 80009 366-1422-00
366-1422-01 B020000 B084159 1 KNOB :LATCH 80009 366-1422-01
366-1690-00 B084160 1
KNOB,LATCH :
80009
366-1690-00
214-1840-00 XB020000 B084159X 1
PIN,KNOB SECRG :0 .094 OD X 0 .120 INCH LONG 80009 214-1840-00
-5 366-0494-00 1 KNOBGRAY,W/SETSCREW 80009
366-0494-00
213-0153-00 1
. SETSCREW :S-40 X 0 .125,STL BK OXD,HEX OOOCY OBD
-6 366-0494-00 1 KNOBGRAY,W/SETSCREW 80009
366-0494-00
213-0153-00
1 . SETSCREW :S-40 X 0 .125,STL BK OXD,HEX OOOCY OBD
-7 366-0494-00 1
KNOBGRAY,W/SETSCREW 80009 366-0494-00
213-0153-OD
1 . SETSCREW :S-40 X 0 .125,STL BK OXD,HEX OOOCY OBD
-8 366-0494-00 1 KNOBGRAY,W/SETSCREW 80009 366-0494-00
213=0153=00 1 SETSCREW :S-40 X 0 .125,STL BK OXD,HEX OOOCY
OBD
-9 1 RESISTOR,VAR :(SEE R38 EPL)
(ATTACHING PARTS)
-10 210-0583-00 1 NUT,PLAIN,HEX . :0 .25-32 X 0 .312 INCH,BRS 73743 2X20224-402
-11 210-0046-00 1 WASHER,LOCK :INTL,0.26 ID X 0.40" OD,STL
78189 1214-OS-00-0541C
-12 376-0051-00 BO10100 B082517 1
CPLG,SHAFT,FLEX :FOR 0.125 INCH DIA SHAFTS 80009 376-0051-00
354-0251-00
2 . RING,COUPLING :0 .251 ID X 0.375 INCH OD,AL 80009 354-0251-00
213-0022-00
4 . SETSCREW :4-40 X 0 .188 INCH,HEX SOC STL 74445 OBD
376-0151-Oi B082518 1 CPLG,SHAFT,FLEX :FOR 0 .125 INCH DIA SHAFTS 80009 376-0151-01
376-0149-00 2 . CPLG,SHAFT,FLEX :PLASTIC 80009
376-0149-00
213-0078-00 2
. SCR,TPG,THD CTG :4-24 X 0.375 FLH,100 DEG 83385 OBD
-13 384-0180-00
1 EXTENSION SHAFT :0 .125 OD X 5 .75 INCH LONG 80009 384-0180-00
-14 ----- -----
1 RESISTOR,VAR :(SEE R95 EPL)
(ATTACHING PARTS)
-15 210-0583-00 1
NUT,PLAIN,HEX . :0 .25-32 X 0 .312 INCH,BRS 73743 2X20224-402
-16 210-0940-00 1 WASHER,FLAT :0 .25 ID X 0 .375 INCH OD,STL 79807
OBD
_ _ _ * _ _ _
-17 ----- ----- 2
RESISTOR,VAR :(SEE 8134 AND R174 EPL)
(ATTACHING PARTS FOR EACH)
-18 210-0583-00 1
NUT,PLAIN,HEX . :0 .25-32 X 0 .312 INCH,BRS 73743 2X20224-402
-19 210-0940-00 1
WASHER,FLAT :0 .25 ID X 0 .375 INCH OD,STL 79807 OBD
-20 131-0955-00
4 CONNECTOR,RCPT, :BNC,FEMALE,W/HARDWARE 13511 31-279
(ATTACHING PARTS FOR EACH)
-21 210-0255-00 1 TERMINAL,LUG :0 .391" ID INT TOOTH
80009 210-0255-00
-22 333-1602-00
1 PANEL,FRONT : 80009
333-1602-00
-23 358-0216-00
1 BUSHING,PLASTIC :0 .257 ID X 0.412 INCH OD 80009
358-0216-00
-24
358-0378-00 BO10100 B095199
1 BUSHING,SLEEVE :PRESS MOUNT 80009
358-0378-00
358-0599-00 B095200 1
BUSNING,SLEEVE :0 .125 ID X 0 .234 THK,PLSTC 28520 B-187-125
-25 214-1513-00 BO10100 B019999 1 LCH,PL-IN RTNG :PLASTIC
80009 214-1513-00
214-1513-01 8020000 B084159 1 LCH,PLUG-IN RET : 80009
214-1513-01
105-0719-00 B084160 1 LATCH, RETAINING :PLUG-IN
80009 105-0719-00
(ATTACHING PARTS)
-26 213-0254-00 1
SCR,TPG,THD CTG :2-32 X 0 .250,100 DEG,FLH 45722 OBD
105-0718-00 XB084160 B085279 1
BAR,LATCH RLSE : 80009 105-0718-00
105-0718-01 B085280
1 BAR,LATCH RLSE : 80009 105-0718-01
-27 200-0935-00 1 BASE,LAMPHOLDER :0 .29 OD X O .19 CASE 80009
200-0935-00
-28 378-0602-00 1 LENS,LIGHT :GREEN
80009 378-0602-00
-29 352-0157-00 1 LAMPHOLDER :WHITE PLASTIC
80009 352-0157-00
-30 386-2286-00 1
SUBPANEL,FRONT : 80009 386-2286-00
(ATTACHING PARTS)
-31 213-0229-00
4 SCR,TPG,THD FOR :6-20 X0 .375"100 DEG,FLH STLL 93907 OBD
REV . B NOV .
1978
'
1-1 337-1399-00 2
SHLD,ELECTRICAL :SIDE 80009 337-1399-00
3-12
