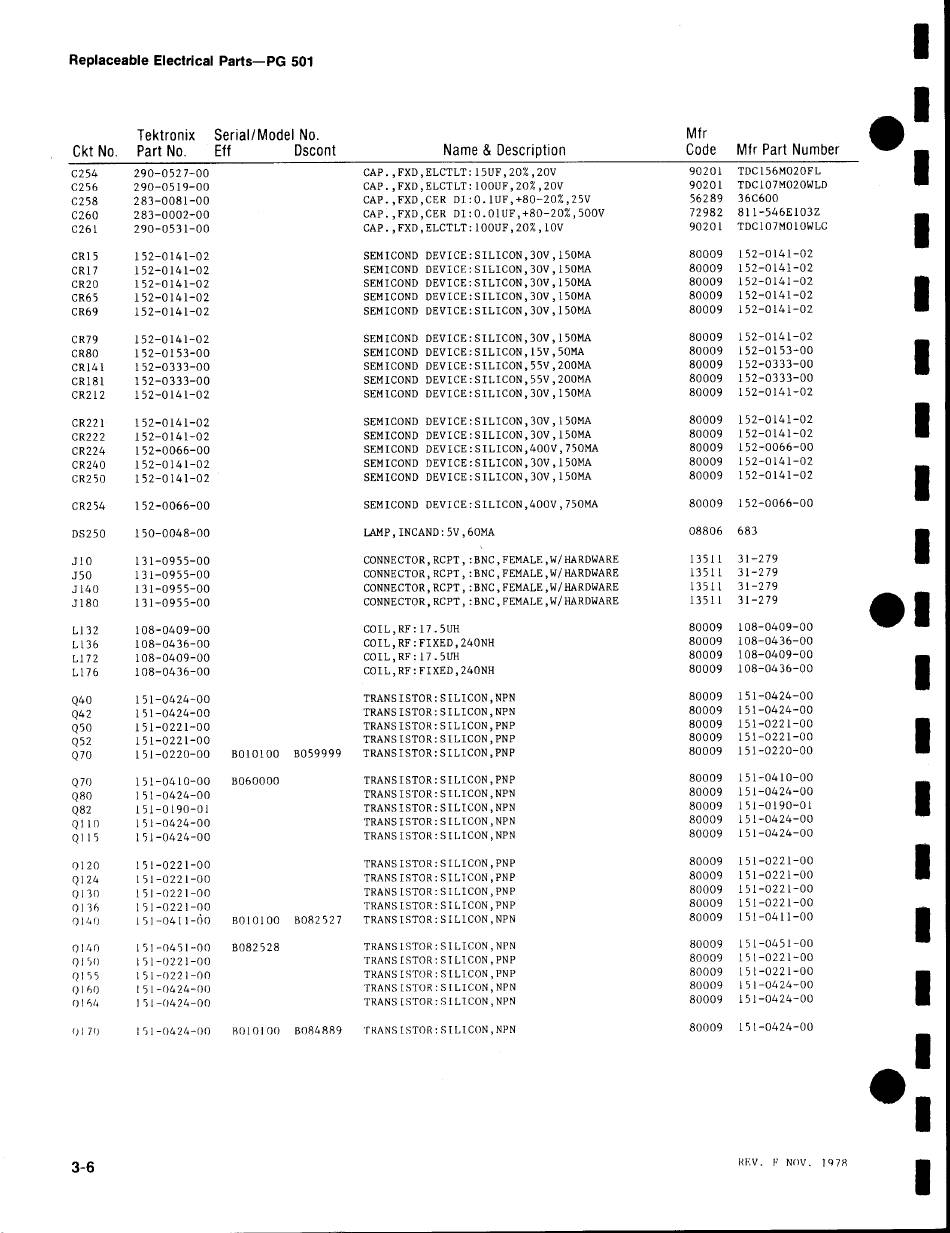

Tektronix PG 501 Instruction Manual page 19

Replaceable Electrical Parts-PG 501
Tektronix Serial/Model No .
Mfr
Ckt No . Part No . Eff Dscont
Name & Description Code Mfr Part Number ,
C254 290-0527-00 CAP.,FXD,ELCTLT :I5UF,20~,20V
90201 TDC156M020FL
C256 290-0519-00
CAP .,FXD,ELCTLT :l00UF,20~,20V 90201 TDC107M020WLD
C258 283-0081-00
CAP .,FXD,CER DI :O .IUF,+80-20I,25V 56289
36C600
C260 283-0002-00
CAP.,FXD,CER DI :O .OlUF,+80-20~,500V
72982 811-546E103Z
C261 290-0531-00
CAP.,FXD,ELCTLT :l00UF,20~,1OV 90201
TDC107MOlOWLC
CR15 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA
80009 152-0141-02
CR17 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA
80009 152-0141-02
CR20
152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 80009 152-0141-02
CR65 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 80009
152-0141-02
CR69 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 80009 152-0141-02
CR79 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA
80009 152-0141-02
CR80 152-0153-00
SEMICOND DEVICE :SILICON,15V,50MA
80009 152-0153-00
CR141 152-0333-00
SEMICOND DEVICE :SILICON,55V,200MA
80009 152-0333-00
CR181 152-0333-00
SEMICOND DEVICE :SILICON,55V,200MA 80009 152-0333-00
CR212 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 80009 152-0141-02
CR221 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 80009
152-0141-02
CR222 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA 80009
152-0141-02
CR224
152-0066-00
SEMICOND DEVICE :SILICON,400V,750MA
80009 152-0066-00
CR240 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA
80009 152-0141-02
CR250 152-0141-02
SEMICOND DEVICE :SILICON,30V,150MA
80009 152-0141-02
CR254 152-0066-00
SEMICOND DEVICE :SILICON,400V,750MA
80009 152-0066-00
DS250
150-0048-00
LAMP,INCAND :5V,60MA 08806 683
J10 131-0955-00
CONNECTOR,RCPT, :BNC,FEMALE,W/HARDWARE 13511 31-279
J50 131-0955-00
CONNECTOR,RCPT, :BNC,FEMALE,W/HARDWARE
13511 31-279
J140 131-0955-00
CONNECTOR,RCPT, :BNC,FEMALE,W/HARDWARE
13511 31-279
J180 131-0955-00
CONNECTOR,RCPT, :BNC,FEMALE,W/HARDWARE
13511 31-279
L132 108-0409-00
COIL,RF :I7 .SUH
80009
108-0409-00
L136
108-0436-00
COIL,RF :FIXED,240NH
80009 108-0436-00
L172
108-0409-00
COIL,RF :I7 .SUH
80009 108-0409-00
L176 108-0436-00
COIL,RF :FIXED,240NH
80009 108-0436-00
Q40 151-0424-00
TRANSISTOR :SILICON,NPN
80009 151-0424-00
Q42 151-0424-00
TRANSISTOR :SILICON,NPN
80009
151-0424-00
Q50
151-0221-00
TRANSISTOR :SILICON,PNP 80009
151-0221-00
Q52
151-0221-00
TRANSISTOR :SILICON,PNP
80009 151-0221-00
Q70 151-0220-00 BO10100
B059999 TRANSISTOR :SILICON,PNP
80009 151-0220-00
Q70
151-0410-00 8060000
TRANSISTOR :SILICON,PNP
Q80
151-0424-00
TRANSISTOR :SILICON,NPN
Q82
151-0190-O1
TRANSISTOR :SILICON,NPN
Q110
151-0424-00
TRANSISTOR :SLLICON,NPN
Q115 151-0424-00
TRANSISTOR :SILICON,NPN
Q120 151-0221-00
TRANSISTOR :SILICON,PNP
Q124 151-0221-00
TRANSISTOR :SILICON,PNP
Q130 151-0221-00
TRANSISTOR :SILICON,PNP
0136 151-0221-00
TRANSLSTOR :SILICON,PNP
Q140 151-0411-00 B010100
B082527 TRANSISTOR :5ILICON,NPN
0140 151-0451-00 B082528
TRANSISTOR :SILICON,NPN
Q150 151-0221-00
TRANSISTOR :SILICON,PNP
Q155 151-0221-00
TRANSISTOR :SILLCON,PNP
Q160 151-0424-00
TRANSLSTOR :SILICON,NPN
0154 151-0424-00
TRANSISTOR :SILICON,NPN
0170 151-0424-00
8010100 8084889
'rRANSISTOR :SILICON,NPN
3-6
80009 151-0410-00
80009 151-0424-00
80009 151-0190-O1
80009
151-0424-00
80009
151-0424-00
80009
151-0221-00
80009
151-0221-00
80009
151-0221-00
80009 151-0221-00
80009
151-0411-00
80009
151-0451-00
80009
151-0221-00
80009 151-0221-00
80009 151-0424-00
80009 151-0424-00
80009 151-0424-00
1tEV . F N~~V . 1978
