Tektronix PG 501 Instruction Manual page 20

Tektronix SeriaIlModel No .
Mfr
Ckt No .
Part No . Eff Dscont
Name & Description
Code Mfr Part Number
Q170 153=0624=00
B084890
SEMICOND DVC SE :SILICON,NPN,MATCHED PAIR 80009
153-0624-00
Q170
* FURNISHED AS A MATCHED PAIR WITH Q176
Q176 151-0424-00 BO10100 B084889
TRANSISTOR :SILICON,NPN
80009
151-0424-00
Q176 153-0624-00 B084890
SEMICOND DVC SE :SILICON,NPN,MATCHED PAIR 80009
153-0624-00
Q176 ----- -----
* FURNISHED AS A MATCHED PAIR WITH Q170
Q180
151-0285-00
BO10100 B069999
TRANSISTOR :SILICON,PNP
80009 151-0285-00
Q180 151-0450-00 B070000
TRANSISTOR :SILICON,PNP,SEL FROM 2N5583
80009 151-0450-00
Q210 151-0190-01
TRANSISTOR :SILICON,NPN
80009
151-0190-O1
Q216 151-0134-00
TRANSISTOR :SILICON,PNP
80009
151-0134-00
Q220 151-0190-01
TRANSISTOR :SILICON,NPN
80009 151-0190-01
Q240
151-0188-00
TRANSISTOR :SILICON,PNP
80009 151-0188-00
Q246 151-0103-00
TRANSISTOR :SILICON,NPN
80009 151-0103-00
Q250
151-0188-00
TRANSISTOR :SILICON,PNP
80009
151-0188-00
R12 301-0510-00
RES .,FXD,CMPSN :51 OHM,S~,O .SOW
01121 EB5105
R14 321-0276-00
RES .,FXD,FILM :7 .32K OHM,1~,0 .125W 91637
MFF1816G73200F
R15 315-0331-00
RES .,FXD,CMPSN :330 OHM,5~,0 .25W
01121 CB3315
R17 315-0680-00
RES .,FXD,CMPSN :68 OHM,57,0 .25W 01121
CB6805
R20
321-0272-00
RES .,FXD,FILM :6 .65K OHM,1~,0 .125W
91637 MFF1816G66500F
R22 315-0101-00
RES .,FXD,CMPSN :100 OHM,5I,0 .25W
01121 CB1015
R23 311-1120-00
RES .,VAR,NONWIR :100 OHM,30I,0 .25W 71450
201-YA5531
R25 315-0221-00
RES .,FXD,CMPSN :220 OHM,SI,0 .25W 01121
CB2215
R26 315-0271-00
RES .,FXD,CMPSN :270 OHM,5~,0 .25W 01121
CB2715
R28 315-0332-00
RES .,FXD,CMPSN :3 .3K OHM,5~,0 .25W
01121 CB3325
R29 315-0821-00
RES .,FXD,CMPSN :820 OHM,SZ,0 .25W
01121 CB8215
R30 315-0330-00 BO10100
B049999
RES .,FXD,CMPSN :33 OHM,5~,0 .25W
01121 CB3305
R30 315-0390-00
B050000 RES .,FXD,CMPSN :39 OHM,57,0 .25W
01121 CB3905
_ R31 315-0620-DO
RES .,FXD,CMPSN :62 OHM,57,0 .25W
01121 CB6205
R32
307-0115-00 BO10100 B010135X
RES .,FXD,CMPSN :7 .5 OHM,5~,0 .25W
01121 CB75G5
R32 307-0115-00 XB040000
RES .,FXD,CMPSN :7 .5 OHM,57,0 .25W
01121
CB75G5
R37 315-0271-00
RES .,FXD,CMPSN :270 OHM,57,0 .25W
01121 CB2715
R38 311-0963-00
RES .,VAR,WW :SK OHM,107
11237 300SF-3P1686
R40 315-0101-00
RES .,FXD,CMPSN :100 OHM,5~,0 .25W
01121 CB1015
R41
301-0821-00
RES .,FXD,CMPSN :820 OHM,5Z,0 .50W
01121 EB8215
R42
315-0101-00
RES .,FXD,CMPSN :100 OHM S%,0 .25W
01121
CB1015
'
R44
315-0511-00
RES .,FXD,CMPSN :510 OHM,57,0 .25W 01121
CB5115
R45
315-0122-00
RES .,FXD,CMPSN :I .2K OHM,5~,0 .25W
01121
CB1225
R48 301-0561-00
RES .,FXD,CMPSN :560 OHM,57,O .SOW
01121 EB5615
R50 315-0271-00
RES .,FXD,CMPSN :270 OHM,5~,0 .25W
01121 CB2715
R52 315-0122-00
RES .,FXD,CMPSN :I .2K OHM,5~,0 .25W
01121 CB1225
R54
316-0560-00
RES .,FXD,CMPSN :56 OHM,10~,0 .25W
01121 CB5601
R55
316-0270-00 BO10100
B084379
RES .,FXD,CMPSN :27 OHM,107,0 .25W 01121
CB2701
R55 315-0270-00
B084380 RES .,FXD,CMPSN :27 OHM,57,0 .25W
01121
CB2705
R59 315-0510-00
RES .,FXD,CMPSN :51 OHM,5~,0 .25W 01121
CB5105
R60 301-0910-00
RES .,FXD,CMPSN :91 OHM,SI,O .SOW
01121 EB9105
R62 301-0910-00
RES .,FXD,CMPSN :91 OHM,57,0 .50W
01121 EB9105
R64 301-0820-00
RES .,FXD,CMPSN :82 OHM,57,O .SOW
01121 EB8205
R65 315-0151-00
RES .,FXD,CMPSN :150 OHM,5~,0 .25W
01121 CB1515
R67 315-0131-00
RES .,FXD,CMPSN :130 OHM,5~,0 .25W
01121 CB1315
R69
316-0471-00
RES .,FXD,CMPSN :470 OHM,10~,0 .25W
01121 CB4711
R71
316-0471-00
RES .,FXD,CMPSN :470 OHM,10~,0 .25W 01121
CB4711
R73
315-0101-00
RES .,FXD,CMPSN :100 OHM,5~,0 .25W
01121
CB1015
R75
315-0271-00
RES .,FXD,CMPSN :270 OHM,5~,0 .25W
01121 CB2715
REV . E NOV . IQ78

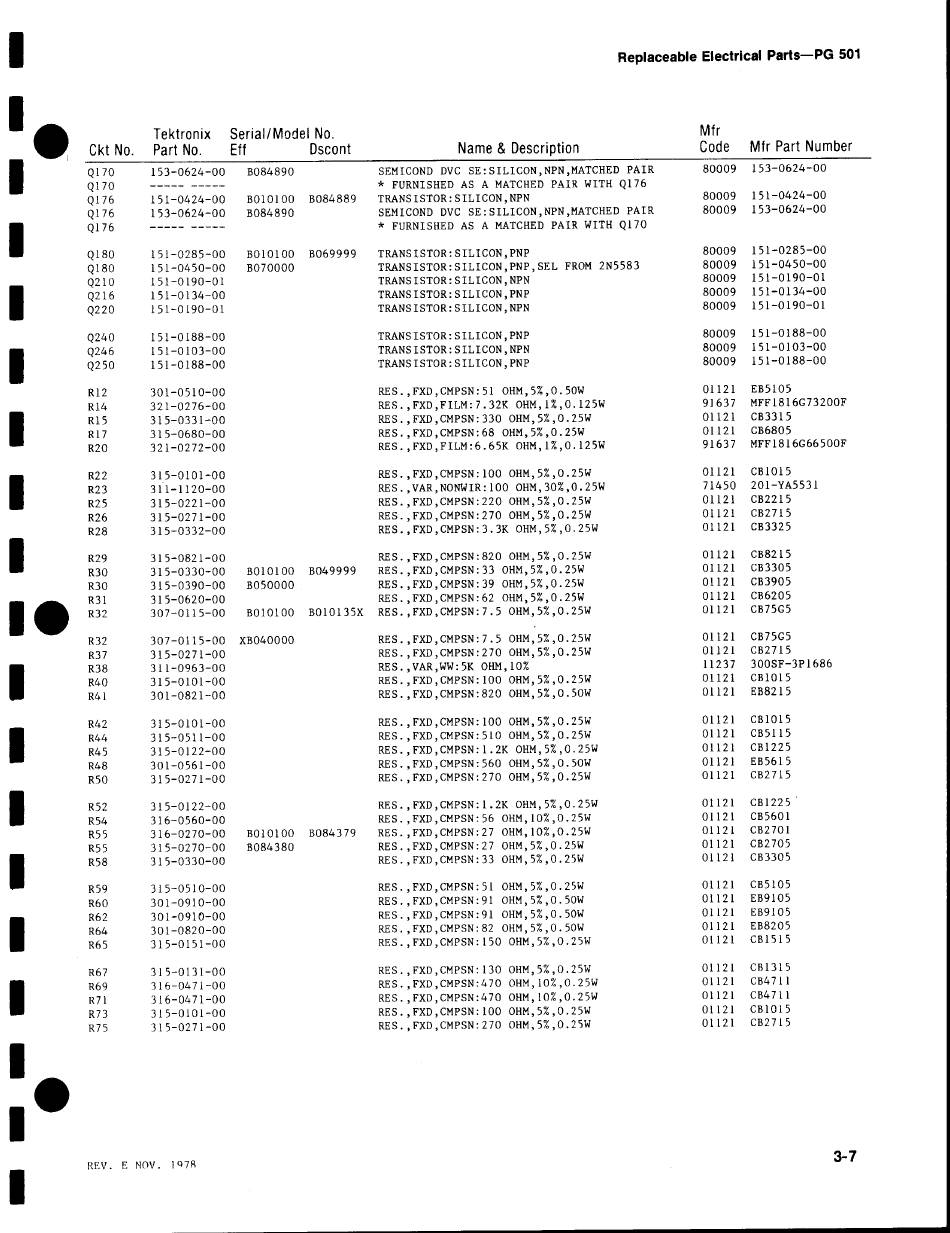

Replaceable Electrical Parts-PG 501
' R58 315-0330-00
RES .,FXD,CMPSN :33 OHM S%,0 .25W
01121 CB3305
3-7
