Summary of Contents for RTA Techni Mobili RTA-7002

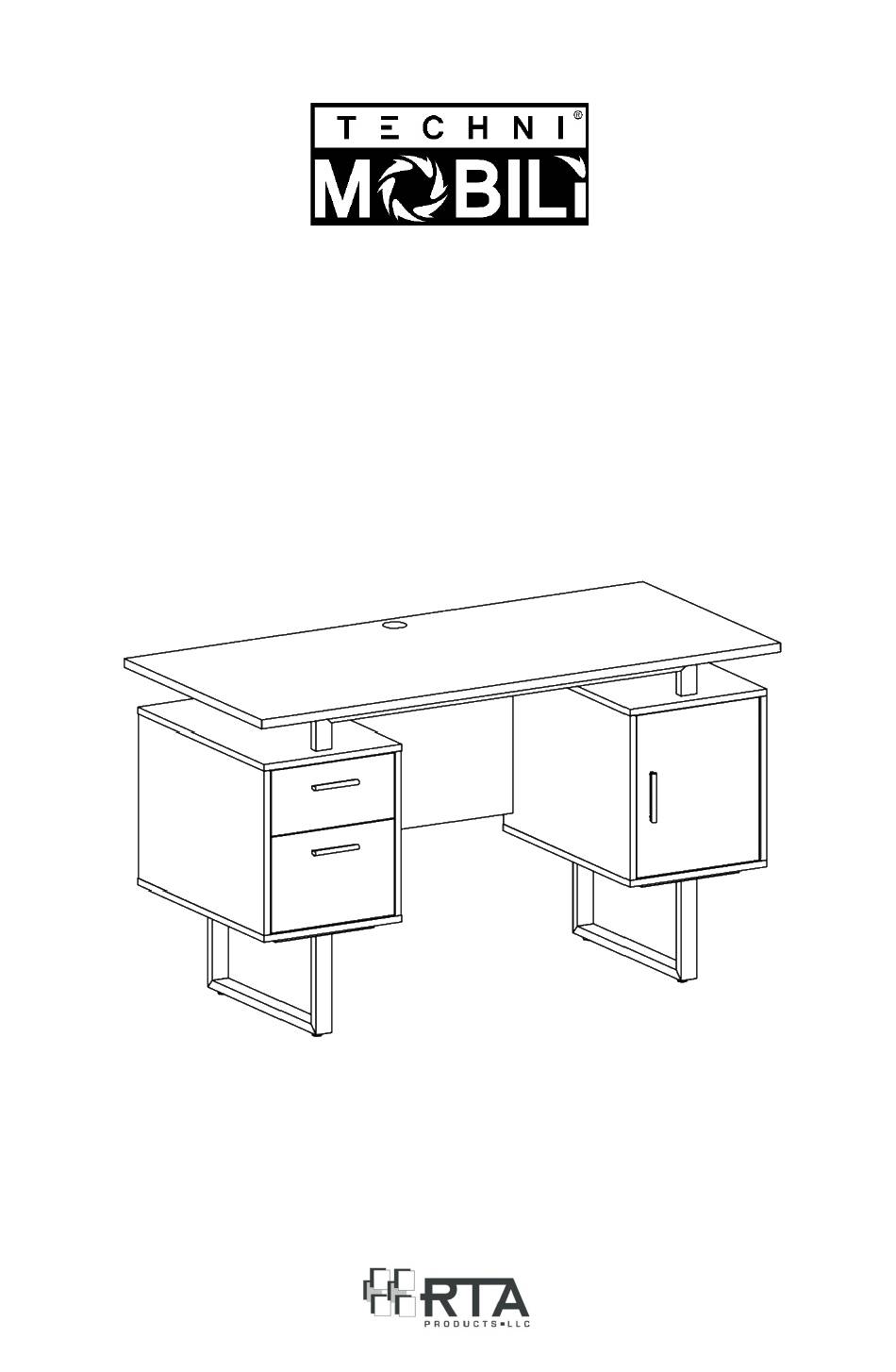

- Page 1 MODEL RTA-7002 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.122020-0...
- Page 2 RTA-7002 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-7002 MAIN PARTS LIST Main panel Back panel Cabinet bottom Cabinet top panel panel Cabinet back Left panel Middle-left Middle-right Right panel panel panel panel Small drawer Small drawer Small drawer Large drawer Small drawer front panel right panel front panel... - Page 4 RTA-7002 LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M6x35 ST-3.5x40 ⌀8x30 Bolt + Cam lock sets M4x22 ST-3.5x14 M6x50 ST-3x14 M6x40 Bracket M6x35 Insert nut M6x25 M6-⌀10 NOTE: You will need for the assembly a Phillips screwdriver and mallet/hammer (not included).
- Page 5 RTA-7002 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware.
- Page 6 RTA-7002 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 7: Assembly Steps
RTA-7002 ASSEMBLY STEPS STEP 1 Separate the sliders 24 according to their shape: - The “L” sliders (for the drawers) will be used until step 16, please set them aside. - The "flat" sliders (for the cabinets) are the ones being used in step 2. - Page 8 RTA-7002 STEP 4 Install and align the cam locks A into the indicated holes on panels 9, then assemble them to panels 5 and 6 for the drawers’ cabinet, and to Hardware: panels 7 and 8 for the storage cabinet as shown and as explained in page 5.
- Page 9 RTA-7002 STEP 6 First insert and align the cam locks A into the corresponding holes on panels 5, 6, 7, 8 and 9, then assemble the panels 4 to each cabinet as Hardware: shown and as explained in page 5.
- Page 10 RTA-7002 STEP 8 Assemble the bars 22 from each leg to each bottom panel 4 on both cabinets using screws F as shown. Hardware: M6x25 (NOT INCLUDED) STEP 9 First insert the nuts L into the panel 2 and make sure they are aligned to receive the screws.
- Page 11 P.10 RTA-7002 P.10 STEP 10 First Insert the cam locks A into panels 5, 6, 7, 8 and 9, then assemble the top panels 3 to the structure as shown and as explained in page 5. Hardware: Cam lock (NOT INCLUDED)
- Page 12 P.11 RTA-7002 P.11 ASSEMBLY STEPS STEP 13 Using screws G, assemble the back panel 13 to panels 11 and 12 (for small drawer), and the panel 17 to panels 15 and 16 (for big drawer). Hardware: ST-3.5x40 (NOT INCLUDED) The grooves on all...
- Page 13 P.12 RTA-7002 P.12 STEP 16 Assemble the “L” shape sliders 24 to the bottom of the drawers using screws J. Please note the orientation of the sliders: the rollers go Hardware: towards the back, and the sliders should not protrude on the bottom, otherwise the drawers raise 3/4”...
- Page 14 P.13 RTA-7002 P.13 STEP 18 Assemble the handle 26 to the door 19 using screws H. Then assemble the hinges 25 using screws I. Hardware: M4x22 ST-3.5x14 (NOT INCLUDED) STEP 19 Assemble the hinges 25 from the door to panel 8 using 4 screws I on the OVAL holes only.
- Page 15 P.14 RTA-7002 P.14 ALL DONE! Give yourself a nice pat on the back. You did a great job!
- Page 16 P.15 RTA-7002 P.15 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 110 Lbs. (49.9 Kg) 33Lbs. (15 Kg) 33Lbs. (15 Kg) 33Lbs. (15 Kg) 10 Lbs. (4.53 Kg) 15 Lbs. (6.8 Kg) •...
- Page 17 RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 18 P.17 RTA-7002 P.17 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
