Summary of Contents for Skope ReFlex Chef Base

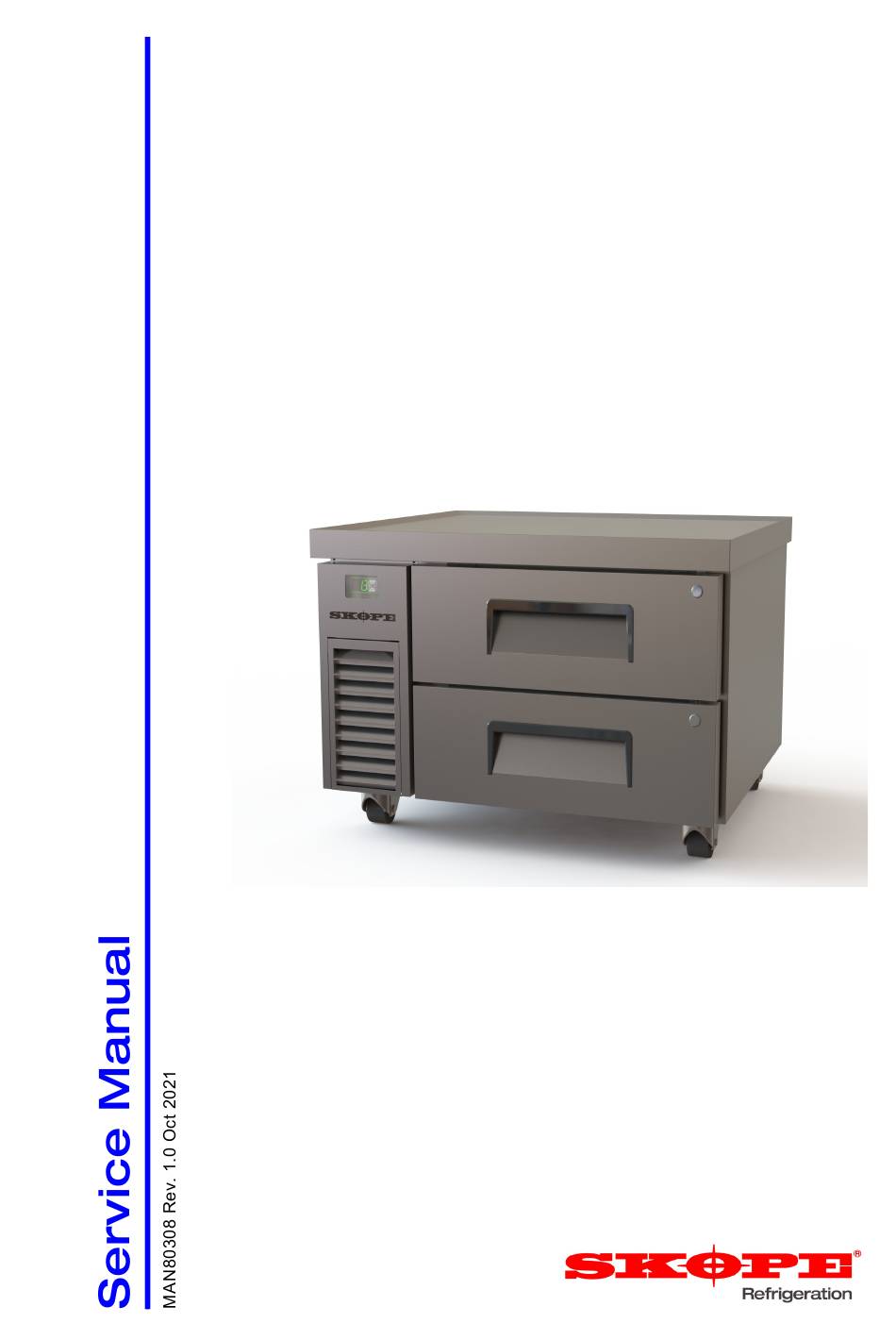

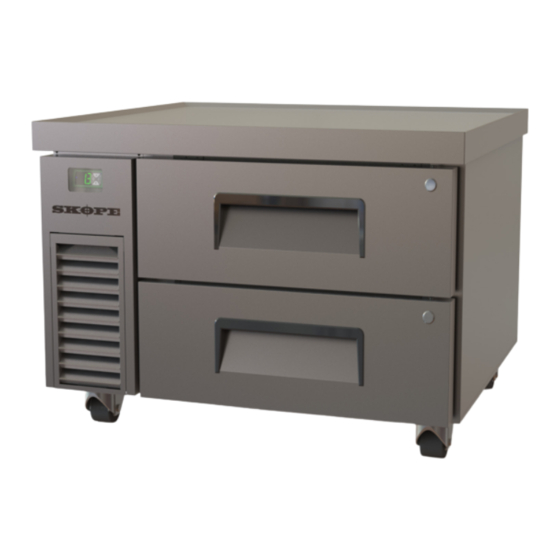

- Page 1 ReFlex Chef Base SKOPE Chef Base Fridge Hydrocarbon...
- Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
Notes ..........17 Wiring ReFlex Chef Base Fridge ....... 18 Spare Parts Chef Base 4 Drawer Assembly . - Page 4 Condenser Coil ......... 45 SKOPE ReFlex Chef Base Fridge...
-
Page 5: Servicing Hydrocarbon
Asphyxiation. Do not interfere with the refrigeration system. All refrigeration maintenance and repairs must be undertaken according to the SKOPE HC Service Requirements below. Electrical safety precautions Correct wiring routing is as important as use of correct components for compliance with safety and radio interference regulations. -
Page 6: Skope Hc Service Requirements
SKOPE HC Service Policy (available from SKOPE), including the following: Hydrocarbon work – SKOPE Service Policy It is the responsibility of the service technician to follow SKOPE’s Hydrocarbon equipment service policy and by accepting a service work order they agree to the following (where applicable): MUST –... -
Page 7: Specifications
SKOPE ReFlex Chef Base Fridge Specifications Models This service manual is applicable to the SKOPE ReFlex Chef Base Fridge models detailed in the table below. Refer to the relevant product specification sheet (available on the SKOPE website: www.skope.com) for specifications. -
Page 8: Electronic Controller
SCS Connect The Wellington Drive Track app for mobile devices transfers data from Track App SKOPE equipment that utilise the SCS Connect controller to a cloud based server. The app works automatically in the background. When the app detects a controller, it connects via Bluetooth to receive data from the controller and send data to the cloud. -
Page 9: Controller Faceplate
( refer to Wellington Drive Technologies documentation for further information Note: A 9 digit pin code is required to access service mode via the controller buttons. Contact SKOPE to receive your service mode pin code. Electronic Controller Service Manual... - Page 10 SKOPE ReFlex Chef Base Fridge There are 5 main service mode categories when accessing and using service mode via the controller faceplate: Parameters Provides access and editing of individual controller parameters. It is not recommended that parameters are changed unless absolutely necessary.
-
Page 11: Scs Connect Field App And Track App
To connect to a cabinet 1. Ensure Bluetooth is enabled and you have internet access on your mobile device. 2. The app shows a list of nearby SKOPE cab- inets. The signal bars indicate how close each cabinet is. 3. Select the cabinet of interest and press ‘CONNECT’. -
Page 12: App Categories
Google Play Store or Apple App Store. 2. Enter your unique Activation Code and press ‘Activate’ (the same code as used for SCS Connect Field app). The activation code is provided by SKOPE Customer Services. 3. Respond to any dialogue boxes that appear and the app should be ready to use. - Page 13 SKOPE ReFlex Chef Base Fridge Load parameter file Allows reloading of model default parameter set or changing to new parameter set. See “Replacing the Controller” on page 40 for instructions. Note: Updated parameters are not applied until DISCONNECT has been selected from the menu (after loading new parameter set).
-
Page 14: Faults And Alarms
Refer to the tables below for faults and alarm descriptions and possible causes and actions. The service tech type column refers to the service tech skill level required to complete a task. Refer to the SKOPE HC Service Policy (available from SKOPE) for service tech type details. Faults (alarm indicator lit - no message displayed) - Page 15 SKOPE ReFlex Chef Base Fridge Alarms Code Description Service tech Possible root cause type dor Door left open. 1, 2, 3, 4 - door not self closing (torsion fault) - door switch / circuit The door has been open for several minutes.
- Page 16 SKOPE ReFlex Chef Base Fridge Code Description Service tech Possible root cause type Evaporator fan over-current protection - faulty fan motor 2, 3, 4 - fan blade fault (imbalance / debris / blockage) The current supplied to the evaporator fan - controller motor is too high.
-
Page 17: Notes
SKOPE ReFlex Chef Base Fridge Notes Electronic Controller Service Manual... -
Page 18: Wiring
SKOPE ReFlex Chef Base Fridge Wiring ReFlex Chef Base Fridge Wiring Service Manual... - Page 19 SKOPE ReFlex Chef Base Fridge CAUTION Some connector colours vary depending on date of manufacture. Refer to Plug type/colour column in the table below for colour variations. After unplugging connectors, ALWAYS ensure reconnection has been undertaken correctly as operational faults may occur if incorrect. It is recommended to photograph wiring setup before unplugging for future reference.
-
Page 20: Spare Parts
SKOPE ReFlex Chef Base Fridge Spare Parts Chef Base 4 Drawer Assembly Spare Parts Service Manual... -
Page 21: Parts - Reflex Chef Base
SKOPE ReFlex Chef Base Fridge Parts - ReFlex Chef Base No. Description Part No. ✔ ✔ CASTOR-UNBRAKED KN-SXX12408 ✔ ✔ CASTOR-BRAKED KN-SXX12407 ✔ ✔ MAINS FLEX AUS/NZ UP 3M KN-FLX12382 RIGHT FRONT RAIL KN-SSY12427 ✔ RIGHT FRONT RAIL KN-SSY12398 ✔... -
Page 22: Integrated Unit Components
SKOPE ReFlex Chef Base Fridge Integrated Unit Components Please Note: Images are indicative only Parts - Integrated Unit No. Description Part No. ✔ ✔ CONDENSER SHIELD KN-SSY12435 CONDENSER COIL KN-CLS12391 ✔ ✔ ✔ ✔ CONDENSER TRAY KN-ELZ12384 ✔ ✔ CONDENSATE LINE KN-FIL12387 ✔... -
Page 23: Installation
SKOPE ReFlex Chef Base Fridge Installation Installation Guidelines When installing this cabinet, ensure the installation guidelines below are considered and met. Ventilation Surface Door Opening Climate Class The installation surface The cabinet must be Ensure all ventilation Allow adequate space... -
Page 24: Cleaning Before First Use
SKOPE ReFlex Chef Base Fridge Cleaning Before First Use The cabinet interior and food contact surfaces such as the worktop must be thoroughly cleaned and sanitised before first use. Ensure the cabinet is unplugged from the power supply before cleaning, and use only standard stainless steel cleaners suitable for food preparation areas. -
Page 25: Troubleshooting And Diagnostics
SKOPE ReFlex Chef Base Fridge Troubleshooting and Diagnostics Electronic Controller Alarms signal unexpected operational changes in the cabinet or cartridge. When an alarm is activated, use the electronic controller app to assist with fault diagnosis and service as necessary. See “Faults and Alarms” on page 14 for information. - Page 26 SKOPE ReFlex Chef Base Fridge • Product is too warm. • Frequent door opening. • Limit door openings. • Recently loaded • Allow time for the product to cool down. • Door not closing properly. • Check and clean door gasket.
-
Page 27: Refrigeration System
SKOPE ReFlex Chef Base Fridge Refrigeration System Unlike in other SKOPE cabinets, the Chef Base refrigeration system is integrated in to the cabinet and can not be easily removed. The condensing unit can be easily accessed by removing the side panels. -
Page 28: Replacement Procedures
SKOPE ReFlex Chef Base Fridge Replacement Procedures Drawers Alignment If a drawer is out of alignment, realign it by loosening the top and/or bottom Adjustment drawer bracket fixing screws, move the drawer as required, and re-tighten the bracket screws. Drawer... -
Page 29: Castors And Legs
SKOPE ReFlex Chef Base Fridge Castors and Legs The cabinet is supplied fitted with swivel castors. The front castors are lockable, the rear castors are free. A set of adjustable height legs is also included in the cabinet. The castors can be removed for plinth mounting or for fitting the height adjustable legs. -
Page 30: Refrigeration
Do NOT open the refrigeration system. Check all components such as the electronic controller and electrical systems. If a sealed system fault is suspected, the system must not be opened; it must be sent to a SKOPE approved service depot for repair. -
Page 31: Gas Detector
Experience and qualifications suitable for work on a flammable refrigeration system. Performs no unsafe activity. Fully complies with SKOPE HC service policy. Minimum tools and equipment Hydrocarbon gas detector Safety signage - suitable to create a safe work zone 1.5m around the ... -
Page 32: Electrics Panel & Loom Electrical Connections
SKOPE ReFlex Chef Base Fridge Electrics Panel & Loom Electrical Connections Manufactured Feb. 2020 onwards Due to the use of limited colour connectors, 2 × red 4-way and 2 × yellow 4-way connectors have been used. ALWAYS ensure reconnection has been undertaken correctly as operational faults may occur if incorrect. -
Page 33: Cartridge Electrics Panel
SKOPE ReFlex Chef Base Fridge Cartridge The cartridge electrics panel is matched to the cabinet, and must be left with Electrics Panel the cabinet when servicing the refrigeration unit. The cartridge electrics panel assembly contains the EMI filter and panel mount socket connectors for the integrated cartridge and cabinet. -
Page 34: Condenser Fan
If the fan stops for any reason, check all connections to ensure no plugs have come loose. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the fan blade and/or fan motor is replaced with the same part to ensure safety, correct alignment, refrigeration performance, and compliance. - Page 35 5. Reassemble and test. To replace the fan motor (with correct SKOPE spare part only) 1. Remove the condenser fan assembly and the fan blade (as above). 2. Detach the fan motor from the fan mounting brackets by removing the four screws from the mounting bracket.
-
Page 36: Evaporator Fan
The fan assembly is fixed to evaporator shroud with screws and metal bars. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the assembly is replaced with the same part to ensure safety, correct alignment and refrigeration performance, and compliance. - Page 37 SKOPE ReFlex Chef Base Fridge 3. Unscrew the duct mounting screws and remove the duct. 4. Unscrew all the evaporator fan shroud mounting screws. 5. The evaporator assembly can be removed. 6. Reassemble and test. Replacement Procedures Service Manual...
-
Page 38: Compressor
SKOPE ReFlex Chef Base Fridge Compressor The compressor is located at the back of the refrigeration unit. If the compressor is causing excessive noise, check the mountings to ensure there is no damage to the rubber or the washers, nuts and screws. -
Page 39: Electronic Controller
SKOPE ReFlex Chef Base Fridge Electronic Controller The electronic controller and electrics panel is matched to the cabinet, and must be left with the cabinet when servicing the refrigeration unit. Only specific components can be replaced in the unit. Different controller parameter sets are used across different models. Ensure the controller is set-up with the correct parameter set for the cabinet model. -
Page 40: Replacing The Controller
12. Set up controller and cabinet links as required: Corporate The service tech must link the controller to the cabinet serial number in the SCS Connect Field app. General Market The owner must set up SKOPE-connect (if in use). Replacement Procedures Service Manual... -
Page 41: Control Probe
SKOPE ReFlex Chef Base Fridge Control Probe The control probe is clipped to the inside of the evaporator assembly. To replace the control probe 1. Gain access to the evaporator fan assembly (see steps 2-3, “To access and replace the evaporator fan assembly” on page 36). -
Page 42: Evaporator Probe
SKOPE ReFlex Chef Base Fridge Evaporator The evaporator probe is located within the evaporator coil. It controls the Probe refrigeration system defrost initiation and termination. To replace the evaporator probe 1. Gain access to the evaporator fan assembly (see steps 1-2, “To access and replace the evaporator fan assembly”... -
Page 43: Ambient Probe
SKOPE ReFlex Chef Base Fridge Ambient Probe The ambient probe is located in front of the condenser coil. It monitors the temperature around the refrigeration unit. Note: The ambient probe is wired in series with the door switch. To replace the ambient probe 1. -
Page 44: Routine Cleaning
SKOPE ReFlex Chef Base Fridge Routine Cleaning Drawers Where fitted, drawers should be removed for cleaning. Pull the drawer out of the cabinet, release latches at side of drawer, and lift the drawer out at an angle. The drawer slider can also be removed by releasing the side catches as shown. -
Page 45: Condenser Coil
SKOPE ReFlex Chef Base Fridge Condenser Coil The condenser coil must be kept clean. SKOPE strongly recommends monthly cleaning of the condenser coil and air filter. Do NOT use hard or sharp tools to clean the coil as these may cause damage. - Page 46 SKOPE Industries Limited A.B.N. 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
