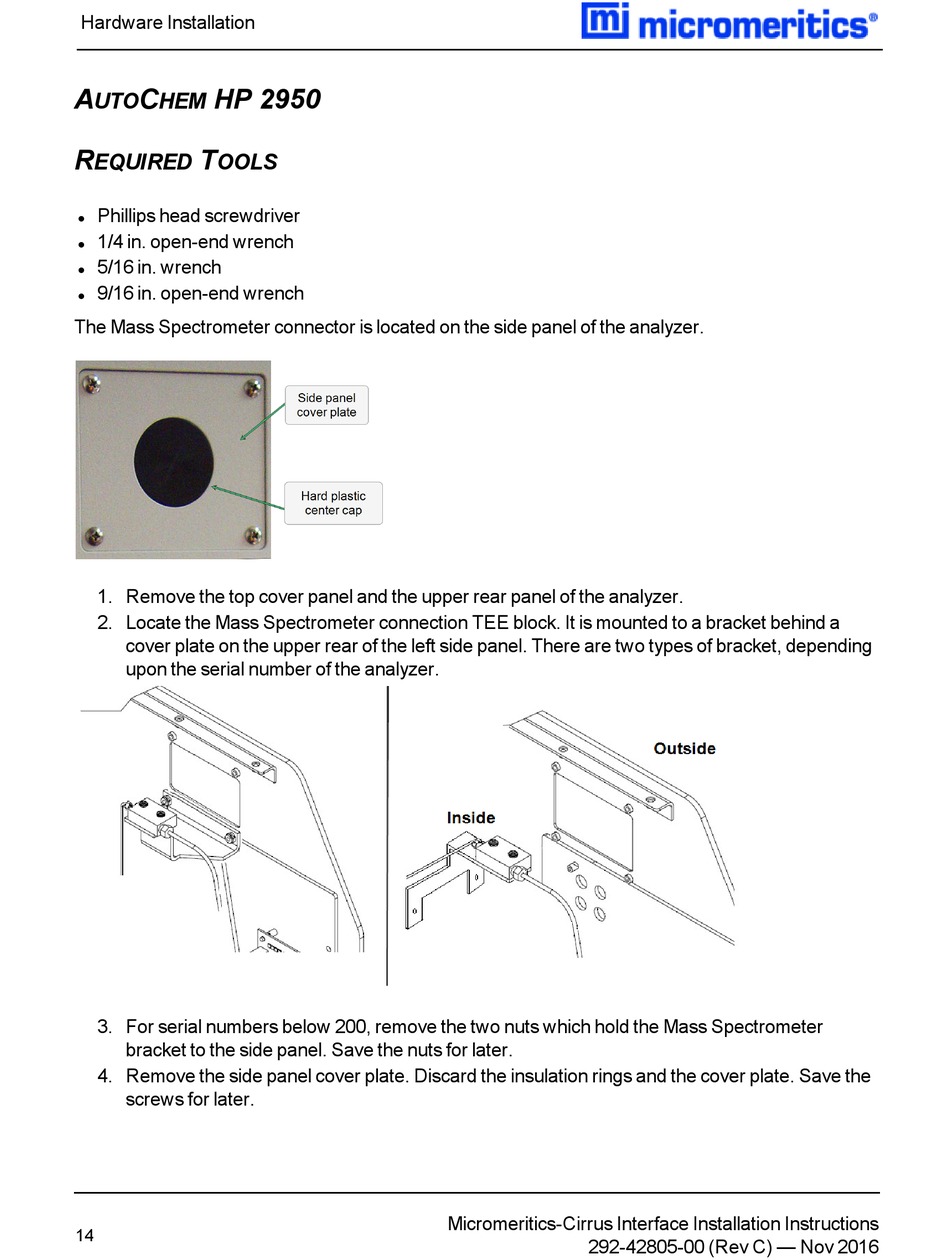

Hardware Installation
A C HP 2950
UTO HEM
R T
EQUIRED OOLS
Phillips head screwdriver
l
1/4 in. open-end wrench
l
5/16 in. wrench
l
9/16 in. open-end wrench
l
The Mass Spectrometer connector is located on the side panel of the analyzer.
1. Remove the top cover panel and the upper rear panel of the analyzer.
2. Locate the Mass Spectrometer connection TEE block. It is mounted to a bracket behind a
cover plate on the upper rear of the left side panel. There are two types of bracket, depending
upon the serial number of the analyzer.
3. For serial numbers below 200, remove the two nuts which hold the Mass Spectrometer
bracket to the side panel. Save the nuts for later.
4. Remove the side panel cover plate. Discard the insulation rings and the cover plate. Save the
screws for later.
14
Micromeritics-Cirrus Interface Installation Instructions
292-42805-00 (Rev C) — Nov 2016
