A C 2920 (S
UTO HEM
R T
EQUIRED OOLS
Phillips head screwdriver
l
1/4 in. open-end wrench
l
3/8 in. open-end wrench
l
5/16 in. open-end wrench
l
7/16 in. open-end wrench
l
9/16 in. open-end wrench
l

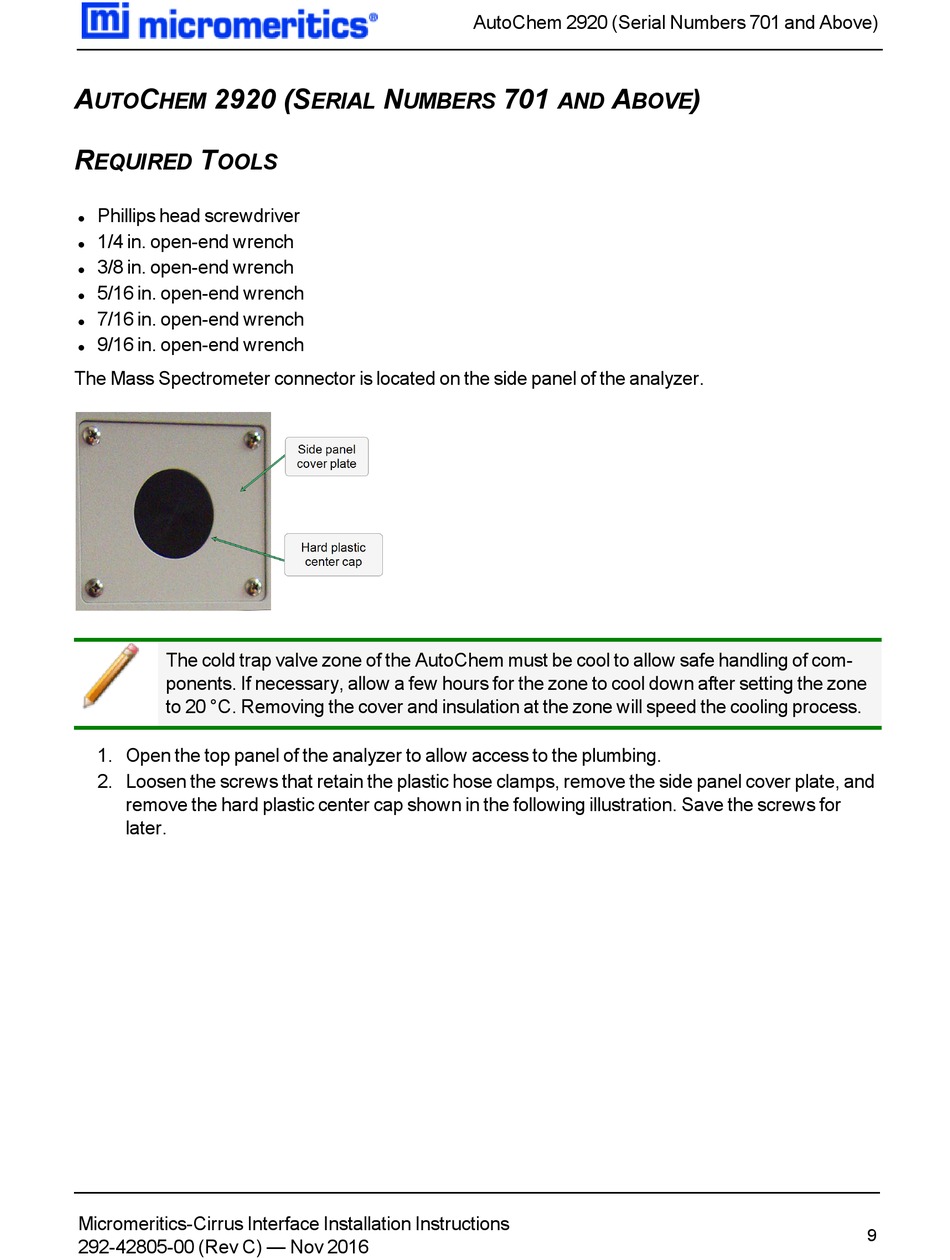

The Mass Spectrometer connector is located on the side panel of the analyzer.
The cold trap valve zone of the AutoChem must be cool to allow safe handling of com-
ponents. If necessary, allow a few hours for the zone to cool down after setting the zone
to 20 °C. Removing the cover and insulation at the zone will speed the cooling process.
1. Open the top panel of the analyzer to allow access to the plumbing.
2. Loosen the screws that retain the plastic hose clamps, remove the side panel cover plate, and
remove the hard plastic center cap shown in the following illustration. Save the screws for
later.
