PLA
AIRLESS GUN
Professional extension
With super fast clean device
With super fast clean device
Ed. 003
07 - 14
P A I N T
S P R A Y I N G
w w w . l a r i u s . e u

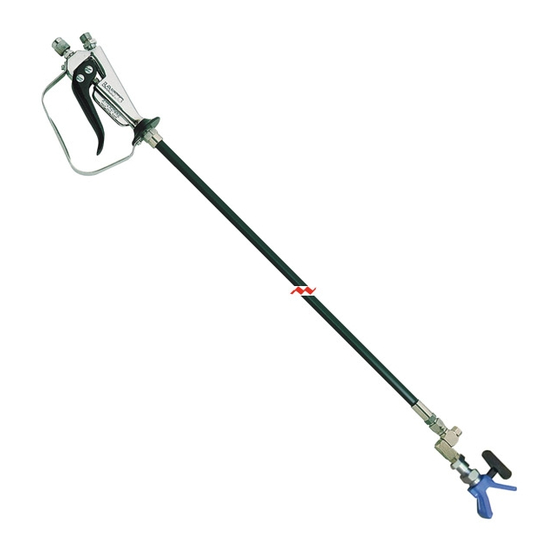

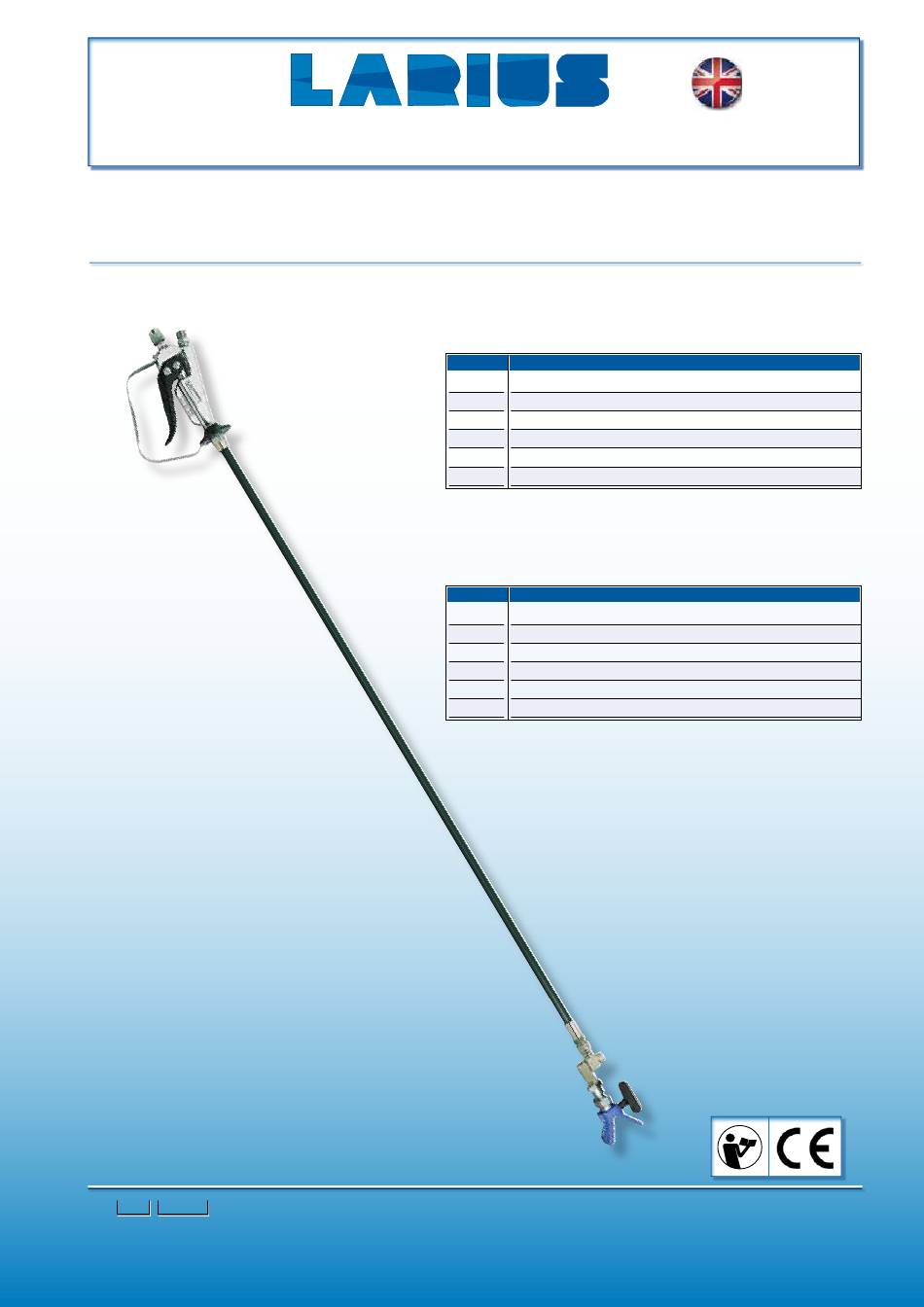

PLA SPRAY GUN 250 BAR/MAX
COMPLETE WITH BASE SUPER FAST CLEAN Rif. 18270
CODE
K11421
K11420
K11426
K11425
K11431
K11430
AIRLESS GUN PLA 450 BAR/MAX
CODE
K11446
K11445
K11441
K11440
K11436
K11435
E Q U I P M E N T
DESCRIPTION
Airless gun PLA cm 130 swivel M16x1,5
Airless gun PLA cm 130 swivel 1/4"
Airless gun PLA cm 180 swivel M16x1,5
Airless gun PLA cm 180 swivel 1/4"
Airless gun PLA cm 240 swivel M16x1,5
Airless gun PLA cm 240 swivel 1/4"
DESCRIPTION
PLA high pressure cm 240 1/4" + base SFC
PLA high pressure cm 240 16 x 1,5 + base SFC
PLA high pressure cm 180 1/4" + base SFC
PLA high pressure cm 180 16 x 1,5 + base SFC
PLA high pressure cm 130 1/4" + base SFC
PLA high pressure cm 130 16 x 1,5 + base SFC
GB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Larius PLA K11421
Summary of Contents for Larius PLA K11421
- Page 1 P A I N T S P R A Y I N G E Q U I P M E N T w w w . l a r i u s . e u AIRLESS GUN Professional extension PLA SPRAY GUN 250 BAR/MAX COMPLETE WITH BASE SUPER FAST CLEAN Rif.
-
Page 2: Table Of Contents
WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS. ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL. Thank you for choosing a LARIUS S.R.L. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired, quickly and professionally. - Page 3 PLA SPRAY GUN It indicates important recommendations about disposal and recycling process of products in accordance with the environmental regulations. Report any danger of electric shock if the warning and presence of live electrical parts has not been indicated. Store in a dry place and do not expose to the rain. Check that the cables are in good condition.
-
Page 4: A Aairless Gun Pla
PLA SPRAY GUN AIRLESS GUN... - Page 5 PLA SPRAY GUN Code Description Code Description Pos. Code Descrizione Pos. Code Description Pos. Pos. 18270 Body Super Fast Clean 90026 Rod for Handgrip Tab. Super fast clean 90027 Handgrip Gasket Super Fast Clean Articulated tubo ap 18280 96206 Articulated adapter for SFC 90031 Supports seal ring Filtro material...
-
Page 6: Bdescription
PLA SPRAY GUN dEScRIPtIoN Pos. Description Pos. Description Trigger Fingers protection Safety Fitting for high pressure hose Nozzle (see table) Ground wire connection screw Body super fast clean... -
Page 7: Cinstructions Of Use
Be sure that the trigger is locked, by rotating the ved by the trigger (D7) should open of roughly 3 safety lock (all spray guns get out from Larius mm. This setting must be done by acting on the safety locked). -
Page 8: Spray Gun Body
PLA SPRAY GUN REPLAcEMENt oF tHE SEALS oF tHE SPRAY GUN BodY A) Take out the pipe (E1) Pay attention to the light residual pressure on the B) Remove the rod with the punch. main spring (E4), it is therefore advisable not to C) Remove all the control part of the rod (trigger, expose any part of your body near to it. -
Page 9: Fsafety Rules
PLA SPRAY GUN SAFEtY RULES NEVER EXCEED THE MAXIMUM WORKING • THE EMPLOYER SHALL TRAIN ITS EMPLO- • YEES ABOUT ALL THOSE RISKS STEMMING PRESSURE INDICATED. FROM ACCIDENTS, ABOUT THE USE OF NEVER POINT THE SPRAY GUN AT YOURSEL- SAFETY DEvICES FOR THEIR OWN SAFETY •... - Page 10 PLA SPRAY GUN The high speed of the product flowing in the hose can create static electricity through discharges and sparks. It is suggested to earth the equipment. The pump is earthed through the earth cable of the supply. The gun is earthed through the high pressure flexible hose.
-
Page 11: Spare Parts
PLA SPRAY GUN SPARE PARtS CODE DESCRIPTION 40225 Kit PLA airless gun seals 40220 Kit airless gun PLA 40394 Kit series pre-filter mesh nozzle SPARE PARTS Base Super Fast Clean Art. 18270 CODE DESCRIPTION 90050 Swivel Filter 100 mesh Filter 60 mesh Nozzles Super Fast Clean Art. -
Page 12: Super Fast-Clean
1,20 SFC51-60 0,051” 1,30 SFC51-80 Manufacturer: DIRECT LINE 23801 caLOLZIOcOrte - LeccO - ItaLY - Via antonio Stoppani, 21 CUSTOMERS TECHNICAL SERvICE tel. (39) 0341/62.11.52 - fax (39) 0341/62.12.43 Tel. (39) 0341/621256 Fax (39) 0341/621234 e-mail: larius@larius.com - Internet http://www.larius.com...
