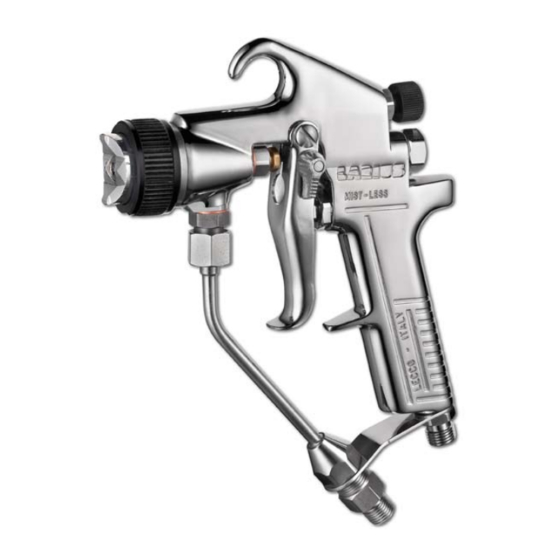

Larius MIST-LESS 09 Operating And Operating And Maintenance Instructions
  1. Manuals
  2. Brands
  3. Larius Manuals
  4. Paint Sprayer
  5. MIST-LESS 09
  6. Operating and operating and maintenance instructions

Larius MIST-LESS 09 Operating And Operating And Maintenance Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MIST-LESS "09"
PAINTING EQUIPMENT
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIST-LESS 09 and is the answer not in the manual?

Questions and answers

Related Manuals for Larius MIST-LESS 09

Summary of Contents for Larius MIST-LESS 09

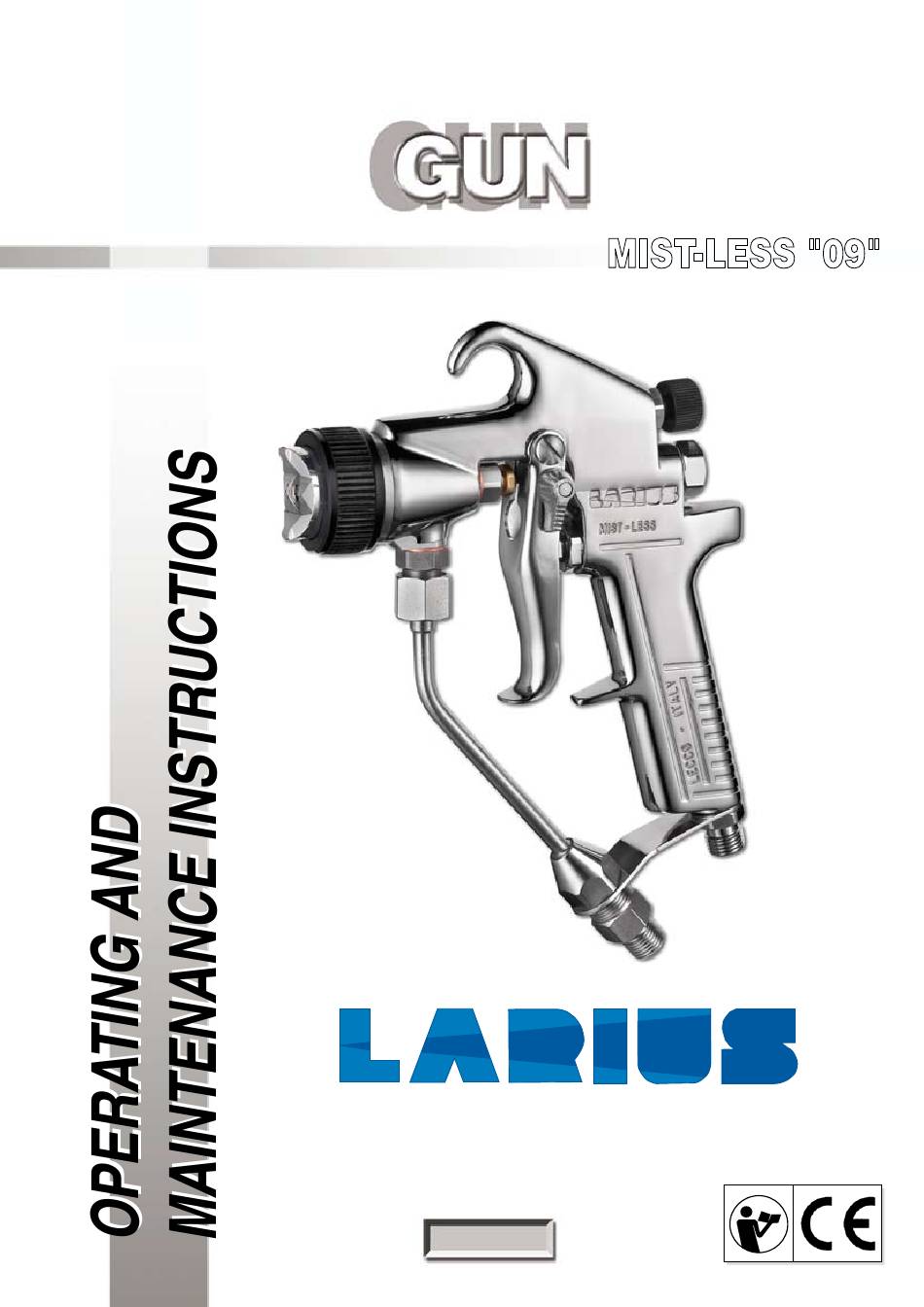

  • Page 1 MIST-LESS "09" PAINTING EQUIPMENT ENGLISH...

  • Page 3: Table Of Contents

    WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS. ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL. Thank you for choosing a LARIUS S.R.L. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired, quickly and professionally.

  • Page 4: Warnings

    MIST-LESS GUN WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. Read this operator’s manual carefully before using the equipment. An improper use of this machine can cause injuries to people or things. Do not use this gun when under the influence of drugs or alcohol.

  • Page 5: Aworking Principle

    MIST-LESS GUN INJECTION HAZARD High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. To help prevent injection, always: - Engage trigger lock when not spraying. - Do not put your hand over the spray tip. Do not stop or deflect leaks with your hand, body or other. - Do not point gun at anyone or at any part of the body.

  • Page 6: Btechnical Data

    MIST-LESS GUN TECHNICAL DATA MIST-LESS GUN MANUAL Version MAX. OPERATING PRESSURE 140 bar (2030 psi) AIR INLET Gj 1/4" (M) M16x1.5 (M)* STANDARD Gj 1/4" (M) INLET PORT SIZE 1/4" NPS (M)* 590g WEIGHT *Available on request PARTS OF THE SPRAYGUN IN CONTACT WITH THE MATERIAL Stainless steel, AISI 420B, PTFE, Aluminium, Inox AISI 303, Tungsten carbide MIST-LESS GUN AUTOMATIC Version...

  • Page 7: Cdescription Of The Equipment

    MIST-LESS GUN DESCRIPTION OF THE EQUIPMENT POS. POS. Description Description Nozzle Spraygun air adjustment screw Closing ring nut Spraygun air inlet fitting Trigger lock Trigger Gun body Material inlet fitting...

  • Page 8: Transport And Unpacking

    Unpack the machine and verify if there has been PERLY. any damage due to transportation. In case of damage, call immediately LARIUS and the • ALWAYS FOLLOW THE INSTRUCTIONS ABOUT SAFETY Shipping Agent. All the notices about possible damage or AND THE REGULATIONS IN FORCE.
  • Page 9 MIST-LESS GUN The high speed of travel of the product in the hose can create static electricity through discharges and sparks. It is suggested to earth the equipment. The pump is earthed through the earth cable of the supply. The gun is earthed through the high pressure flexible hose.

  • Page 10: Fluid Injection Hazard

    MIST-LESS GUN FLUID INJECTION HAZARD • Shut off the supply pump. • Hold a metal part of the gun firmly to the side of a grounded metal waste container. This is a high pressure dispensing gun. Fluid dispensed under high pressure could be injected through your skin and into your body.

  • Page 11: Hequipment Misuse Hazard

    MIST-LESS GUN • Tighten all fluid connections securely before each use. High If you suspect that the nozzle or hose is clogged or pressure fluid can dislodge a loose coupling or allow high that pressure has not been fully relieved, after pressure fluid to be emitted from the coupling following the steps above, very slowly loosen the hose end coupling and relieve pressure gradually;...

  • Page 12: Grounding

    MIST-LESS GUN MOVING PART HAZARD Do not plug in or unplug any power supply cords in the dispensing area when there is any chance of igniting fumes still in the air. Moving parts can pinch or amputate your fingers or other body If you experience any static sparking or feel even a parts.

  • Page 13: Connecting The Product Delivery Hose

    MIST-LESS GUN CONNECTING THE PRODUCT DELIVERY HOSE NEVER use sealants on fittings’ threads. It is recommended to use the hose provided with the • Connect the flexible product delivery hose (N4) to the delivery standard kit. coupling (N5) of the pump. NEVER use a damaged or a repaired flexible hose.

  • Page 14: Starting The Spraying Operations

    MIST-LESS GUN STARTING THE SPRAYING OPERATIONS • UsethetoolingafterperformingalltheSETTING UP operations • At this point, the product will flow until reaching the gun and above described. you can start working. Before starting the pump it is important that a small amount of atomizing air is sent to the spraygun.

  • Page 15: Problems And Solutions

    MIST-LESS GUN PROBLEMS AND SOLUTIONS Problem Solution Cause • Replace with a smaller one; • Pulling the trigger, the pressure • The nozzle is too large or worn; drops considerably • If possible, dilute the product; • The product is too dense; •...

  • Page 16: Qtrigger Lock

    MIST-LESS GUN TRIGGER LOCK TRIGGER LOCK ENGAGED TRIGGER LOCK DISENGAGED To engage the trigger lock, release the trigger and rotate the To disengage the trigger lock (Q1), rotate the trigger lock trigger lock (Q1) forward. backward. Trigger locked Trigger released...

  • Page 17: Rroutine Maintenance

    MIST-LESS GUN ROUTINE MAINTENANCE • Follow the Pressure Relief Procedure (see page 8) and disconnect the gun from the hose. To reduce the risk of serious injury, including fluid • Loosen the spring adjustment fitting (9) and remove the spring injection or splashing the eyes or on the skin: (22).

  • Page 18: Sexploded Diagram Of Manual Mist-Less

    MIST-LESS GUN EXPLODED DIAGRAM OF MANUAL MIST-LESS 07 SPRAYGUN WARNING: Always indicate code and quantity for each part required...

  • Page 19: Spraygun

    MIST-LESS GUN Pos. Pos. Code Description Code Description 19970 Complete manual Mist-Less spraygun Filter (60 MESH) 11966/1 Ring nut 14039/1 Sleeve 11963/1 Head 11931 Air fitting 11972 Gasket 12211 Air valve screw 11971 Gasket 4077 O-Ring Nozzle (see list) 12209 Air valve seat 11995 Seal...

  • Page 20: Painting

    MIST-LESS GUN PNEUMATIC PUMPS FOR MIST-LESS SPRAY PAINTING VEGA 23:1 Art. 91507 Art. 91509 Inox VEGA 15:1 Art. 91400 Art. 91405 Inox GHIBLI 30:1 Art. 96135 Art. 96137 Inox...

  • Page 21: Uapplications

    MIST-LESS GUN OMEGA 23:1 Art. 7340 Art. 7345 Inox APPLICATIONS...

  • Page 22: Vversions

    MIST-LESS GUN VERSIONS MIST-LESS SPRAYGUN MIST-LESS SPRAYGUN Art 19970 MIST-CLEAN version with nozzle Art. 19975 MIST-LESS AUTOMATIC SPRAYGUN high fisnish MIST-LESS SPRAYGUN Art. 11820 with long filter Art. 11946...
  • Page 23 MIST-LESS GUN AIRLESS AUTOMATIC SPRAYGUN LA95 LOW PRESSION SPRAYGUN MA98L Art. 11700 Art. 11300 RA88 AUTOMATIC LOW-PRESSURE PUMP RAC2 AUTOMATIC LOW-PRESSURE PUMP V71 MANUAL LOW-PRESSURE PUMP V77 MANUAL LOW-PRESSURE PUMP...
  • Page 24 MIST-LESS GUN MANUAL SPRAYGUN Airless MANUAL SPRAYGUN AT250 Airless Art. 11702 Art. 11200 MANUAL SPRAYGUN AT300 Airless MANUAL SPRAYGUN L91X Airless Art. 11000 Art. 11130 MANUAL SPRAYGUN PLA...
  • Page 25 Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
  • Page 26 MAnuFACTuRER: 23801 CALOLZIOCORTE - LECCO - ITALY - Via Stoppani, 21 Tel. (39) 0341/62.11.52 - Fax (39) 0341/62.12.43 E-mail: larius@larius.com - Internet http://www.larius.com DIRECT LINE CUSTOMERS TECHNICAL SERVICE Tel. (39) 0341/621256 Fax (39) 0341/621234...
