www.larius.eu
Sirio
27:1
32:1
ITALIANO
Ediz. 006 - 12/2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sirio 27:1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Larius Sirio 27:1

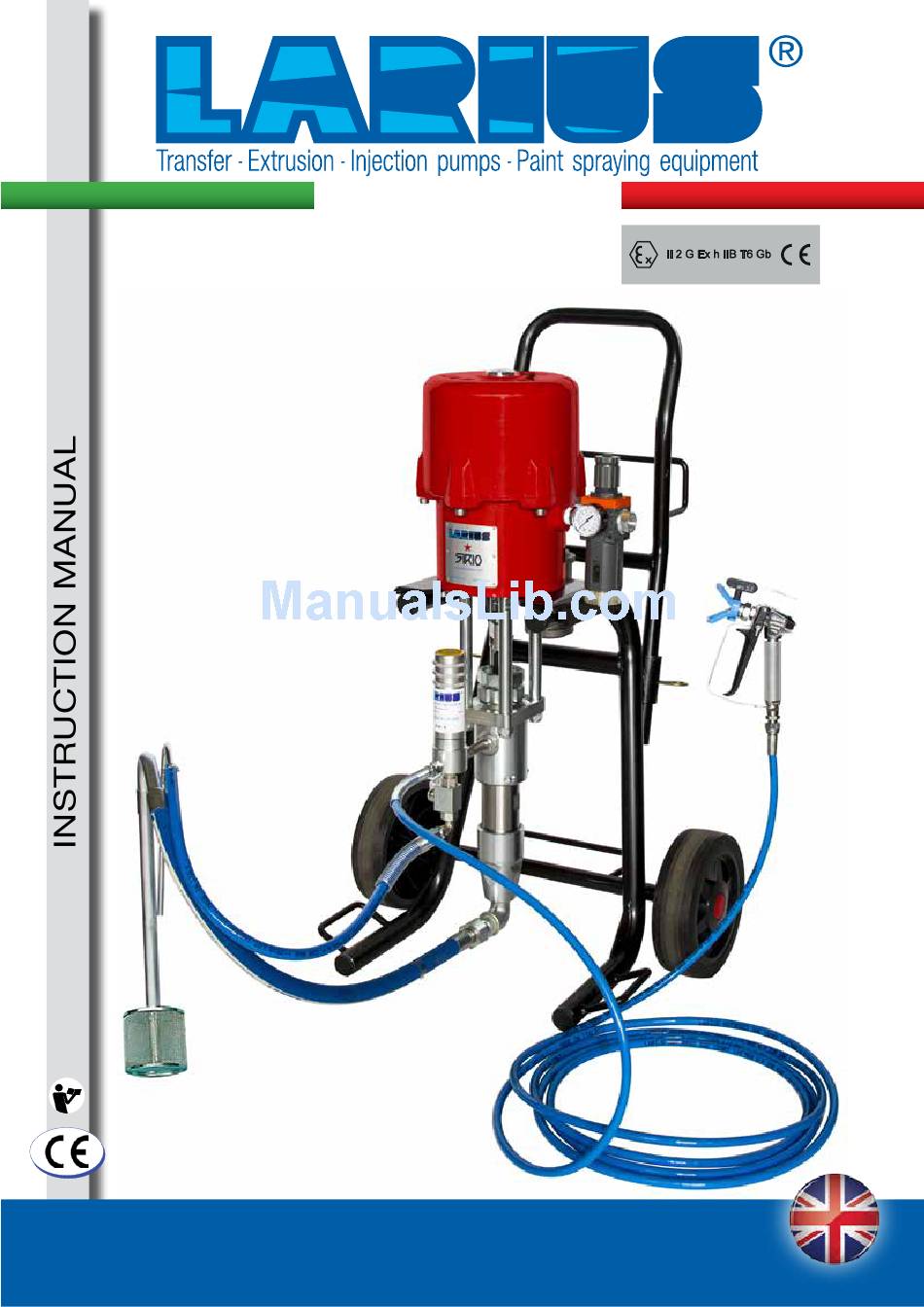

  • Page 1 Sirio 27:1 32:1 ITALIANO Ediz. 006 - 12/2017...
  • Page 2 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Ediz. 006 - 12/2017 www.larius.eu...
  • Page 3 We ADVIse THe Use OF THIs eQUIpMeNT ONLY BY prOFessIONAL OperATOrs. ONLY Use THIs MACHINe FOr UsAGe speCIFICALLY MeNTIONeD IN THIs MANUAL. Thank you for choosing a LArIUs s.r.L. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired, quickly and professionally.
  • Page 4 Ediz. 006 - 12/2017 www.larius.eu...
  • Page 5 Do not wear bracelets, earrings, rings, chains, or anything else that may hinder the operator’s work. Do not wear clothing with wide sleeves, scarves, ties, or any other piece of clothing that could get tangled up in moving parts of the equipment during the work, inspection, or maintenance cycles. Ediz. 006 - 12/2017 www.larius.eu...
  • Page 6: Technical Data

    3/4" GAS C (M) MATERIAL ENTRy 3/8" GAS C (F) 3/8" GAS C (F) MATERIAL EXIT 9.2 l/min 8.2 l/min MAXIMUM DELIVERy CC/CyCLE 58 Kg wEIgHT 58 Kg <80 dB (A) <80 dB (A) NOISE PRESSURE LEVEL DIMENSIONS Ediz. 006 - 12/2017 www.larius.eu...
  • Page 7 Description Sirio 27:1 Stainless steel - Trolley version + accessories K99000 99000 Sirio 27:1 Stainless steel complete with FRL unit, line filter, drain valve, suction-recirculation system 35014 High pressure hose ø¼” 7.5 m M16x1.5 fitting 11200 AT250 airless spray gun with M16x1.5 revolving fitting...
  • Page 8 Material flexible pipe Pneumatic motor pump Spray technology Filtro alta pressione uscita materiale Cable grounding with gripper High pressure filter out material Gun AT250 - oPTIonAl Recirculating cock Gun l91 - oPTIonAl Recirculation pipe fitting fixing Ediz. 006 - 12/2017 www.larius.eu...
  • Page 9 Ediz. 006 - 12/2017 www.larius.eu...
  • Page 10 Unpack the machine and verify if there has been any damage due to transportation. In case of damage, call immediately LArIUs and the • Before installing the equipment, ensure that the area to be used is large enough for such purposes, is properly Shipping Agent.
  • Page 11 TYPE OF THE PRODUCT INJECTED. NeVer UNDERVALUE A WOUND CAUSED BY THE INJECTION OF A FLUID. • ALWAYS DISCONNECT THE SUPPLY AND RELEASE THE PRESSURE IN THE CIRCUIT BEFORE PERFORMING ANY CHECK OR PART REPLACEMENT OF THE EqUIP- MENT. Ediz. 006 - 12/2017 www.larius.eu...
  • Page 12 • Connect the suction and recirculating pipes to the pump. The suction hose can be locked finger tight (F1). Use a spanner to tighten the recirculating pipe (F2). In both cases do not use sealant agents for fitting threads. Ediz. 006 - 12/2017 www.larius.eu...
  • Page 13 • Ensure the product is suitable to be used with a spray gun. • Mix and filter the product before using it. For filtration, the use of close-mesh (Ref. 214) and large-mesh (Ref. 215) LARIUS METEX braids is suggested. Make sure the product to be used is compatible with the materials employed for manufacturing the equipment.
  • Page 14 Their disposal must be performed causes a high fog (“overspray”) and waste of product. in accordance with the regulations in force • In order to avoid overthick ness of paint, let the gun advance about the industrial waste goods. Ediz. 006 - 12/2017 www.larius.eu...
  • Page 15: Routine Maintenance

    • Remove and clean the high pressure filter for material outlet (I4). • Check periodically the air supply to the pump. Ensure the Rif. 16340 air is always clean and lubricated. MATerIAL OUTpUT FILTer Ediz. 006 - 12/2017 www.larius.eu...
  • Page 16 Necessary tools and equipment procedure 1.1 Remove the high pressure filter unit from the pump Necessary tools and equipment procedure 2.1 Remove nuts (2a) Necessary tools and equipment procedure 3.1 Unscrew and remove the bottom valve body (3a) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 17 4.4 Reassemble the components (4a, 4b, 4c, 4d) 4b 4c Necessary tools and equipment procedure 5.1 Loosen the ring nut (5a) without removing it Necessary tools and equipment procedure 6.1 Unscrew and remove the component (6a) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 18 8.1 Using a rubber mallet (8a), slide off the component (8b) Necessary tools and equipment CLEANER procedure 9.1 Remove the gaskets (9a, 9b) clean and lubricate the gasket housing and replace them with new spare parts Ediz. 006 - 12/2017 www.larius.eu...
  • Page 19 11.1 Remove the complete gasket pack (11a) CLEANER procedure 12.1 Remove the component (12a) 12.2 Clean and lubricate the gasket housing and replace it with the new one (12b) 12.3 Reassemble the component (12a) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 20 Follow the direction of rotation of gaskets Direction of assembly A: Female steel ring B: PtFe V seal ring C: PolyPRoPylene V seal ring D: Male steel ring E: Gasket housing procedure 14.1 Reassemble the component (14a) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 21 D: Female steel ring D: Anello femmina in AcciAio E: Ball E: sfera F: Piston valve F: Valvola pistone NOTe NOTe Follow the direction of Follow the direction of rotation rotation of gaskets of gaskets Ediz. 006 - 12/2017 www.larius.eu...
  • Page 22 18.1 Reassemble the component (18a) as shown in the figure (18b) Necessary tools and equipment CLEANER procedure 19.1 Insert the component (19a) inside the component (19b) 19.1 Using a wrench, screw in the component (19a) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 23 Necessary tools and equipment procedure 20.1 Tighten the ring nut (20a) Necessary tools and equipment CLEANER procedure 21.1 Reassemble the bottom valve body (21a) Necessary tools and equipment procedure 22.1 Reassemble the nuts (22a) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 24 - Close the air supply to the pump and release the residual pressure in the plant; - unscrew the motor cap (K1) and pull it upward along with the guide rod (K2) so as to manually trigger the stroke inversion unit; - screw again the plug. Ediz. 006 - 12/2017 www.larius.eu...
  • Page 25 (1b) (1e) 1.3 Hold the guide rod (1b) and remove the plug (1a) (using two wrenches). replace immediately the plug with a usual M8 (1C) nut before the guide rod (1B) slides into the cylinder (1D). Ediz. 006 - 12/2017 www.larius.eu...
  • Page 26 Necessary tools and equipment procedure 2.1 Remove the screws (2a) and the washers (2b). (2c)(2d) procedure 3.1 Carefully extract the motor cylinder (3a) fom the pump. Ediz. 006 - 12/2017 www.larius.eu...
  • Page 27 5.1 press at the point (5a) to snap inside the rocker arm stud screw Necessary tools and equipment procedure 6.1 Unscrew and remove the two screws (6a, 6b) with 2 13mm wrenches as shown in figure (6c) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 28 (7b) Necessary tools and equipment procedure 8.1 Remove the two valve screws (8a, 8b) Necessary tools and equipment procedure 9.1 proceed with disassembly and replace the 6 seal sleeves (9a) with pliers Ediz. 006 - 12/2017 www.larius.eu...
  • Page 29 11.1 Remove the OR gasket (11a) and replace it if necessary with a spare part Necessary tools and equipment procedure 12.1 Reassemble the two valve screws (12a) as shown in the drawing NOTe Follow the direction of rotation of gaskets Ediz. 006 - 12/2017 www.larius.eu...
  • Page 30 Make adjustments in the same way on both valve screws Necessary tools and equipment procedure 13.1 Unscrew the cap (13a), holding the guide rod with a 7mm wrench. Then reassemble the nut (13b). Ediz. 006 - 12/2017 www.larius.eu...
  • Page 31 Necessary tools and equipment procedure 14.1 Lubricate the gasket (14a) 14.2 Carefully reassemble the motor cylinder (14b) on the pump. Necessary tools and equipment procedure 15.1 Re-screw in the 6 screws (15a) and the washers (15b). (15c)(15d) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 32 16.1 Raise the central guide rod (16b) from inside the cylinder (16d) 16.2 Remove the nut (16c) 16.3 Re-screw the cap (16a) onto the rod using 2 wrenches and re-screw in the cap on the cover (16e) Ediz. 006 - 12/2017 www.larius.eu...
  • Page 33 Replace them with filters of a larger • The spray gun’s filter and the material mesh size output filter’s sieve are too fine Always close the compressed air supply and release the pressure in the plant before performing any check or replacement of parts of the pump. Ediz. 006 - 12/2017 www.larius.eu...
  • Page 34 Ediz. 006 - 12/2017 www.larius.eu...
  • Page 35: Spare Parts

    41 Complete pneumatic motor pag. 36 pneumatic regulator pag. 37 pumping unit coupling kit pag. 43 pumping 155cc (32:1) pag. 38 pumping 180cc (27:1) pag. 39 pumping unit: Filter Assembly pag. 40 pag. 42 Ediz. 006 - 12/2017 www.larius.eu...
  • Page 36 COMpLeTe pNeUMATIC MOTOr ref . 99100 NOT INCLUDED IN THE MOTOR ASSEMBLY Ediz. 006 - 12/2017 www.larius.eu...
  • Page 37 34020 ivet 4108 99052 Machine Plate 32024 Washer Ø 8 99064 T. Sirio 32:1 Technical Data Plate 96111 Gasket 99065 T. Sirio 27:1 Technical Data Plate 99062 Crosspiece 99069 Shearing Plate 96112 Guide Bushing 99055 O-ring 96010 Guide Rod 99056...
  • Page 38 Polyethylene gasket V Ball 155007/2 35163 Male ring Pumping piston 155006 155010 Gasket holder Ball guide 155013 155019 O-ring Ball locking pin 155014 155018 Pumping group Ball 155015 20149 155016 O-ring 155021 Bottom valve body Ediz. 006 - 12/2017 www.larius.eu...
  • Page 39 35163 Ball Polyethylene gasket V Pumping piston 180003/2 180005 Male ring Ball guide 180002 155019 Gasket holder Ball locking pin 180007 155018 O-ring Ball 155014 20149 Pumping group Bottom valve body 155015 155021 155016 O-ring Ediz. 006 - 12/2017 www.larius.eu...
  • Page 40 Filter Base 10107 99251 Filter Tank Filter Inlet Fitting 99252 99253 Filter Sieve 27:1 label 95218 99042 Filter Sieve Support 32:1 label 65078 99043 O-ring 65099 6148 Fitting 33037 Ball valve 6149/1 Fitting 95214 3385 Fitting Ediz. 006 - 12/2017 www.larius.eu...
  • Page 41 Base Trolley 33005 Washer Ø 10 4408 Screw 95159 Tube Cap 37238 Wheel 20305 Wheel Stop Washer Ø 40 Tube Cap 95229 Wall Support 99156 Heater Holder 99154 Screw 6130 18902 Split pin 99155 Bushing Ediz. 006 - 12/2017 www.larius.eu...
  • Page 42 85026 WArNING: always indicate code and quantity for each part required. pos. Code Description 85026 Intake system 18097 Suction pipe complete 16613 Recirculation hose 18096 Locking spring 37216 Intake filter Ediz. 006 - 12/2017 www.larius.eu...
  • Page 43 WArNING: always indicate code and quantity for each part required. pos. Code Description Q.ty Complete kit 99280 99281 Tie rod 95013 3323 Split pin 96073 Or 3050 99282 Joint sleeve 99284 Pumping shaft connection 99283 Ediz. 006 - 12/2017 www.larius.eu...
  • Page 44 Code 95219: TAMIS 60M Code 150: 1/4" Code 11037: Yellow (100M) Code 95220: TAMIS 100M Code 11019: Red (200M) Code 95221: TAMIS 200M Code 91044: PNEUMATIC MIXER Code 7030: HP FLOW REGULATOR Code 6099: HEATER Ediz. 006 - 12/2017 www.larius.eu...
  • Page 45 SFC29-60 Code 18280: GASKET Code 18270: SUPER FAST-CLEAN base UE 11/16x16 GUN EXTENSION Code 153: cm 30 -Code 153: cm 40 Code 155: cm 60 - Code 158: cm 80 - Code 156: cm 100 Ediz. 006 - 12/2017 www.larius.eu...
  • Page 46 Innovation. The real kind. pAINT sprAYING eQUIpMeNT...
  • Page 47 23:1 - 34:1 - 40:1 sIrIO 27:1 - 32:1 sIrIO GHIBLI VeGA plunger piston 30:1 - 45:1 30:1 - 40:1 23:1 GHIBLI zINC OMeGA zINC sUper OMeGA zINC sUper NOVA zINC 30:1 30:1 34:1 45:1 Ediz. 006 - 12/2017 www.larius.eu...
  • Page 48 Made in Italy 1969 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.eu...
