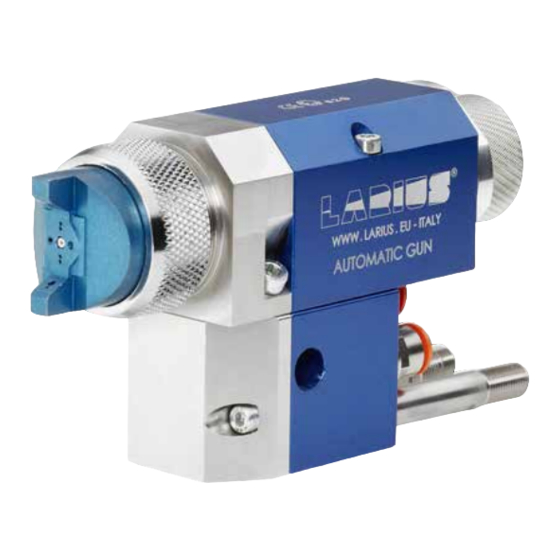

ADVANTAGE OF USE The automatic guns L100-L101 ensures the best performance during the painting of metal and wood. All parts in contact with the product are made of stainless steel in order to grant high resistance and long life over time. -
Page 3: Table Of Contents
FLUID CIRCUIT INSTALLATION AND CONNECTION ................. p.20 FLUID SYSTEM CONNECTION ....................... p.21 PNEUMATIC SYSTEM CONNECTION ....................p.22 ........... p.24 ExPLODED VIEW OF THE L100 - L101 MIST-LESS AUTOMATIC SPRAY GUN ..............p.26 ExPLODED VIEW OF THE BLOCK WITH SIDE INLETS L-100 L101 ..............p.27 ExPLODED VIEW OF THE BLOCK WITH REAR INLETS ........................ -
Page 4: Bversions
AUTOMATIC GUNS L100-L101 VERSIONS L100-L101 LOW PRESSION AUTOMATIC SPRAy GUN inox version code deScRIptIon see Table Automatic gun L100. Low pressure. With side inlets. see Table Automatic gun L101. Low pressure.With rear inlets. MetAL Kit nozzle L100 L101 Viscosity nozzle... - Page 5 NOZZLE KIT - AIR CUP - ROD 21401 = Nozzle 21371 + Air cup 21391 + Rod 21384 L101COMPLETE 21451 = L100 with nozzle gun kit - Air cup - Rod 21401 L101COMPLETE 21471 = L101 with nozzle gun kit - Air cup - Rod 21401 Ed.
- Page 6 AUTOMATIC GUNS L100-L101 L100-L101 LOW PRESSION AUTOMATIC SPRAy GUN alluminium version codIce deScRIptIon see Table Automatic gun L100. Low pressure. With side inlets. see Table Automatic gun L101. Low pressure.With rear inlets. MetAL Kit nozzle L100 L101 Viscosity nozzle Air cup...
- Page 7 NOZZLE KIT - AIR CUP - ROD 21401 = Nozzle 21371 + Air cup 21391 + Rod 21384 L101COMPLETE 21451 = L100 with nozzle gun kit - Air cup - Rod 21401 L101COMPLETE 21471 = L101 with nozzle gun kit - Air cup - Rod 21401 Ed.
-
Page 8: Cwarnings
AUTOMATIC GUNS L100-L101 WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. Read this operator’s manual carefully before using the equipment. An improper use of this machine can cause injuries to people or things. - Page 9 AUTOMATIC GUNS L100-L101 DANGER OF FLUID INJECTION The fluid that comes out of the spray gun or from any leaks may penetrate the skin and cause lacerations. To prevent fire or fluid injection: - Do not place hands or fingers on the nozzle of the spray gun. Do not try and stop leaks with your hands, body or other.
-
Page 10: Dworking Principle
WORKING PRINCIPLE The L100-L101 automatic spray guns optimize performance for painting metal and wood; all of the parts in contact with the product are made of stainless steel to ensure a longer life and resistance over time. Characterised by the ease of mounting and removing components for maintenance. -
Page 11: Etechnical Characteristics
1/8” - tube 8x6 L100: 1/4” Fluid inlet L101: 1/8” L100: L: 140 mm - P: 45 mm - H: 75 mm Dimensions (exluiding fittings) L101: L: 140 mm - P: 45 mm - H: 90 mm Ed. 009 - 02/2019... -
Page 12: E.a - Atex Plate
AUTOMATIC GUNS L100-L101 E.a - ATEX plate Ed. 009 - 02/2019 www.larius.eu... -
Page 13: Fdimensions And Overall
AUTOMATIC GUNS L100-L101 DIMENSIONS AND OVERALL F.a - Dimensions and overall L100 gun L100 GUN M4X10 Ø 8 X6 27.5 L100 Ed. 009 - 02/2019 www.larius.eu... - Page 14 AUTOMATIC GUNS L100-L101 F.b - Dimensions and overall L101 gun L101 GUN Ø 8 X6 27.5 36.5 L101 M4X10 Gj 1/4 Ed. 009 - 02/2019 www.larius.eu...
-
Page 15: Gtransport And Unpacking
Unpack the machine and verify if there has been any damage due to transportation. • BEFORE USING THE TOOL, ENSURE THERE ARE NOT DA- In case of damage, call immediately LARIUS and the Ship- MAGED PARTS AND THE MACHINE CAN WORK PROPERLY. ping Agent. All the notices about possible damage or... - Page 16 AUTOMATIC GUNS L100-L101 • DO NOT RUB THE SPRAYGUN WITH CLOTHS SOAKED IN The high speed of the product in the hose can SOLVENT. create static electricity through discharges and sparks. It is suggested to earth the equipment. The pump is earthed through the earth cable of the supply.
-
Page 17: Idescription Of The Equipment
AUTOMATIC GUNS L100-L101 DESCRIPTION OF THE EQUIPMENT l100 spray gun l101 spray gun poS. deScRIptIon poS. deScRIptIon Head Air connections Locking ring nut Material in/out Gun body Air inlet block Threaded cap for adjustment Product inlet block Ed. 009 - 02/2019... -
Page 18: Jfluid Injection Hazard
AUTOMATIC GUNS L100-L101 FLUID INJECTION HAzARD Be sure all fluids and solvents used are che- mically compatible with the “WETTED PARTS” The fluid that the spray gun shoot may shown in the TECHNICAL DATA. Always read the penetrate the skin and body causing fluid and solvent manufacturer’s literature be-... -
Page 19: Mfire Or Explosion Hazard
AUTOMATIC GUNS L100-L101 FIRE OR EXPLOSION HAzARD Before flushing, be sure the entire system and flushing pails are properly grounded. Refer Static electricity is created by the flow of fluid through to GROUNDING, above. Always use the lowest the pump and hose. If every part of the equipment is not... -
Page 20: Pfluid Circuit Installation And Connection
AUTOMATIC GUNS L100-L101 FLUID CIRCUIT INSTALLATION AND The system can be completed and built with different solutions. LARIUS is at your disposal to help design custom solutions CONNECTION with different production requirements. The illustration shows a typical example for creating a low pressure painting system with circulation system via L100/ L101 automatic spray gun. -
Page 21: Qfluid System Connection
AUTOMATIC GUNS L100-L101 FLUID SYSTEMS CONNECTION ENTRY RIGHT fluid ENTRY LEFT fluid RECIRCULATION fluid fluid Ed. 009 - 02/2019 www.larius.eu... -
Page 22: Rpneumatic System Connection
AUTOMATIC GUNS L100-L101 PNEUMATIC SYSTEMS CONNECTION L101 L100 Ed. 009 - 02/2019 www.larius.eu... - Page 23 AUTOMATIC GUNS L100-L101 Ed. 009 - 02/2019 www.larius.eu...
- Page 24 AUTOMATIC GUNS L100-L101 EXPLODED VIEW OF THE L100-L101 AUTOMATIC GUN WARNING: Always indicate code and quantity for each part required. Ed. 009 - 02/2019 www.larius.eu...
- Page 25 AUTOMATIC GUNS L100-L101 code deScRIptIon Q.tY code deScRIptIon Q.tY 21811 Ring nut see pages Rod material no. 4-7 see pages Air cap no. 4-7 12525 Spring 21319 Rod plate see pages Nozzle no. 4-7 6127 Grub screw 21860 OR-Ring 11770...
-
Page 26: T Exploded View Of The Block With Side Inlets L-100
AUTOMATIC GUNS L100-L101 EXPLODED VIEW OF THE BLOCK WITH SIDE INLETS WARNING: Always indicate code and quantity for each part required. code deScRIptIon Q.tY code deScRIptIon Q.tY 4006 Quick coupling 21304 Product inlet block 11781 Quick coupling 21304/1 Avional product inlet block... -
Page 27: U Exploded View Of The Block With Rear Inlets L101
AUTOMATIC GUNS L100-L101 EXPLODED VIEW OF THE BLOCK WITH REAR INLETS ATTENZIONE: per ogni particolare richiesto indicare sempre il codice e la quantità. code deScRIptIon Q.tY code deScRIptIon Q.tY 4006 Quick coupling 21306 Product inlet block 11781 Quick coupling 21306/1... -
Page 28: Vtroubleshooting
AUTOMATIC GUNS L100-L101 TROUBLESHOOTING pRoBLeM cAUSe SoLUtIonS • Pressure drops significantly during use. • The nozzle is too large or worn; • Replace with a smaller one; • T he product is too dense; • If possible, dilute the product; • T he mesh of the filter in the gun is too fine; • Replace with a filter with larger mesh; • Material flows from the cap • Material leakage from the sealing Oring;... - Page 29 L’innovazione. Quella vera. PAINT SPRAYING EQUIPMENT...
-
Page 30: Wguns Range
AUTOMATIC GUNS L100-L101 GUN RANGE AUTOMATIC GUN L100 AUTOMATIC GUN L101 low pression low pression with side inlets with rear inlets Codice 21303 Codice 21331 MIST-LESS AUTOMATIC GUN L200 MIST-LESS AUTOMATIC GUN L200 with side inlets for Mist-less tip with side inlets complete with Mist-Clean 2 base... - Page 31 AUTOMATIC GUNS L100-L101 MIST-LESS MANUAL GUN L400 MIST-LESS MANUAL GUN L400 for Mist-less tip complete with Mist-Clean 2 base for Super Fast Clean Codice 21800 or Top spraying Clean tip Codice 21801 AUTOMATIC GUN MA98L AIRLESS SPRAYING AIRLESS SPRAYING GUN AT250...
- Page 32 Made in Italy 1969 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.eu...
