Larius K-2 Operating And Maintenance Instruction Manual

Painting equipment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Line Striper
Airless
PAINTING EQUIPMENT
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Larius K-2

Summary of Contents for Larius K-2

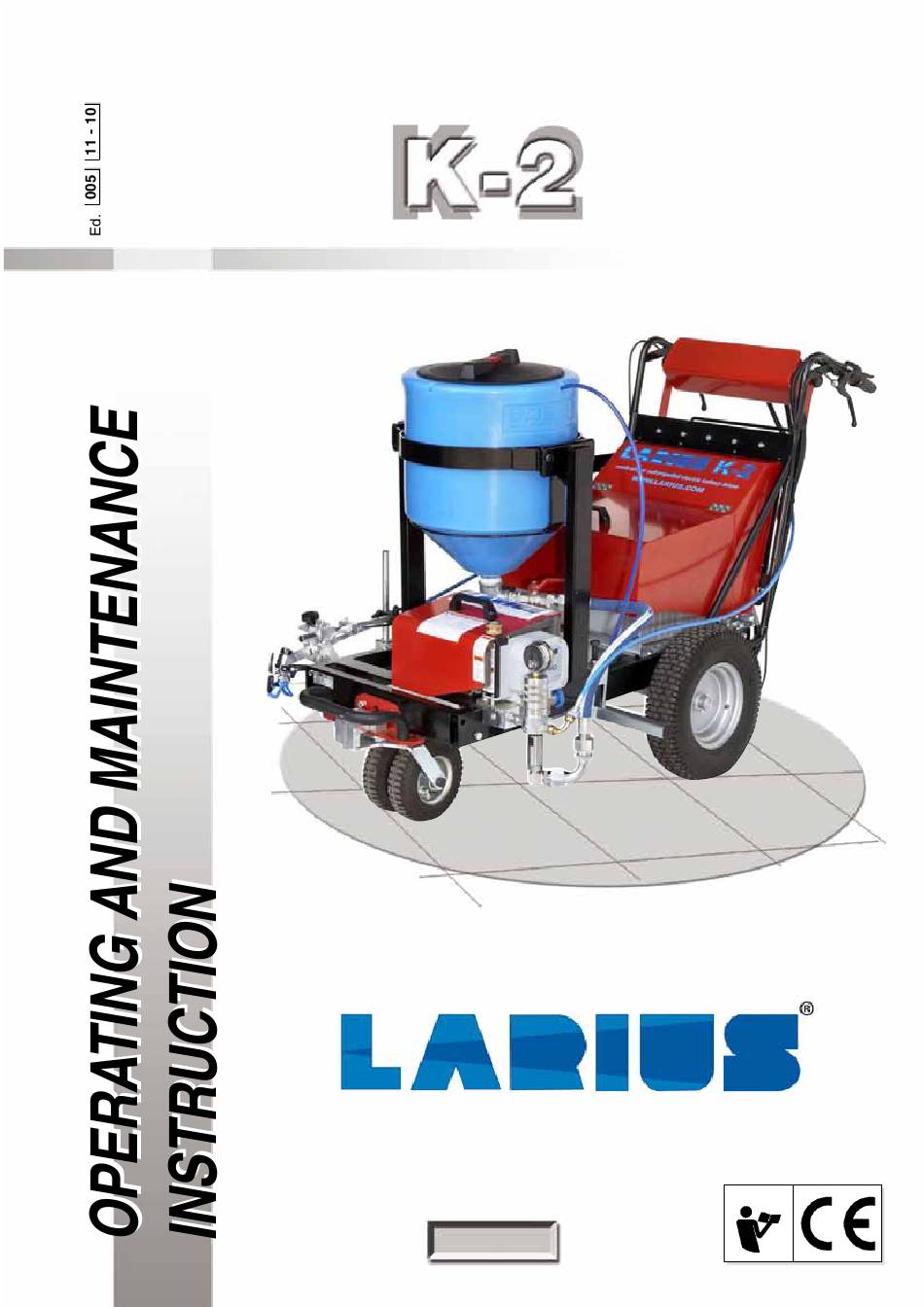

  • Page 1 Line Striper Airless PAINTING EQUIPMENT ENGLISH...

  • Page 3: Table Of Contents

    WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS. ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL. Thank you for choosing a LARIUS S.R.L. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired, quickly and professionally.

  • Page 4: Working Principle

    WoRKING PRINCIPLE The unit LARIUS K-2 is defined “piston pump”. This pump is used The product is sucked, pushed towards the pump outlet and then for high pressure painting without air (from this process derives sent to the gun through the flexible hose. A mechanical device the term “airless”).

  • Page 5: Description Of The Equipment

    DESCRIPTIoN oF THE EQUIPMENT PoS. PoS. Description Description Pressure control knob High pressure manometer Reduction casting Airless manual gun Suction Tube Trigger safety clamp High pressure hose Battery charger Airless gun Drain valve Product tank Recirculation tube Suction filter...

  • Page 6: Controls Description

    CoNTRoLS DESCRIPTIoN D1) Steerage lever. D6) Indicator Pulling the lever the straight only "mode" will be unlocked Indicates the charge in the electrical battery. allowing the machine to run. D7) Adjustment knob Used to progressively adjust the machine’s running speed. D2) Internal gun operating lever.

  • Page 7: Transport And Unpacking

    • BEFORE USING THE TOOL, ENSURE THERE ARE NOT In case of damage, call immediately LARIUS and the DAMAGED PARTS AND THE MACHINE CAN WORK PRO- Shipping Agent. All the notices about possible damage PERLY.

  • Page 8: Setting-Up

    • TIGHTEN AND CHECK ALL THE FITTINGS FOR CONNEC- Electrical safety precautions TION BETWEEN PUMP, FLEXIBLE HOSE AND SPRAY GUN • Check the "ON/OFF" switch is on the "OFF" position before BEFORE USING THE EQUIPMENT. connecting the cable to the mains. •...
  • Page 9 WASHING oF THE NEW EQUIPMENT • The equipment has already been adjusted at our factory with • Remove the suction pipe and take away the solvent tank. light mineral oil left inside the pumping group as protection. Therefore, wash with diluent before sucking the product. •...

  • Page 10: Working

    WoRKING START oF THE PAINTING oPERATIoNS Use the tooling after performing all the SETTING UP ope- • rations above described. • Dip the suction pipe (H1) into the product tank (H2). Delivery pipe connection • Make sure the product recycles from the return tube (H5). •...

  • Page 11: Cleaning At The End Of The Work

    CLEANING AT THE END • In case of long storage, we recommend you to suck and to leave light mineral oil inside the pumping group and the oF THE WoRK flexible hose. Follow the washing procedure before using again • Reduce pressure to the minimum (turn counterclockwise the the equipment.

  • Page 12: Problems And Solutions

    PRoBLEMS AND SoLUTIoNS Solution Problem Cause • Check the correct connection to the • The equipment does not start • Lack of voltage; power supply; • Verify and replace it, if necessary; • Breakdown of pressure transmitter; • Verify and replace it, if necessary; •...

  • Page 13: Correct Procedure Of Decompression

    CoRRECT PRoCEDURE oF DECoMPRESSIoN • Insert the gun clamp (M1). Turn the key (M2) to the oFF (0) position to stop the equip- • ment. • Open the drain valve (M3) to release the residual pressure always clockwise. WARNING: If the equipment is still under pressure after performing the operations above described because of the nozzle or the flexible hose clogged, proceed as follows: •...

  • Page 14: Replacement Of The Pumping Group's Gaskets

    REPLACEMENT oF THE PUMPING GRoUP’S GASKETS • Carry out this operation after cleaning the tooling. Always disconnect the power supply and release pressure before going on with the operations (fol- low the “correct procedure of decompression). • Disconnect the pumping group by unscrewing the two fastening screws.

  • Page 15: Cleaning And/Or Replacement Of The Pressure Transmitter

    CLEANING AND/oR RE- PLACEMENT oF THE PRES- SURE TRANSMITTER • Remove the pressure sensor from its housing and chek if the pin can move. If necessary, clean thoroughly. CHECK oN THE PRESSURE TRANSMITTER • Check the seals (O-ring and teflon ring): if worn or "pinched", Before evaluating if the cause of the malfunction is due to the pres- replace them.

  • Page 16: Complete Pressure Control Device Ref. 16350

    CoMPLETE PRESSURE CoNTRoL DEVICE REF. 16350 WARNING: always indicate code and quantity for each part required.
  • Page 17 Pos. Code Description Pos. Code Description 16336 Elastic ring 16307 Bush 16335 Washer 22059 Dowel 11955 Gasket 16310 Screws 16334 16313 Microswitch 9287 O-ring 16311 Support box 16333 Antiextrusion ring 16306 Control rod 16331 Sensor 16304 Quill 16332 Gas-ring 81017 Elastic ring 4077 O-ring...

  • Page 18: Rcomplete Pumping Ref. 16100

    CoMPLETE PUMPING REF.16100 WARNING: always indicate code and quantity for each part required. Pos. Code Description 16109 Packing nut 16105 Complete upper seals 96205 Dowel 16033 Assembly pins 16101 Pumping case 33007 Screws 33006 Piston rod 16111 Screws 16110 Piston rod 91010 Elastic pin 11**...
  • Page 19 System of assemblage Steel female ring cod. 16106 White cod. 16124 Red cod. 16104 cod. cod. Leather cod.16155 16132 16105 Red cod. 16104 White cod. 16124 Upper seals Steel male ring cod. 16108 Steel male ring cod. 16116 White cod. 16136 Red cod.

  • Page 20: Sfilter Group

    FILTER GRoUP WARNING: always indicate code and quantity for each part required. Manometer 0-400 bar code 33008 Pos. Code Description 16201 Filter tank 96202 Spring 16205 Standard sieve 16204 Standard sieve 100 16203 Standard sieve 200 16202 Sieve support 96203 Gasket 96204 Filter base...

  • Page 21: Recirculating-Safety Valve Group Ref.16400

    RECIRCULATING-SAFETY VALVE GRoUP REF. 16400 WARNING: always indicate code and quantity for each part required. Pos. Code Description 4033 O-ring 16415 Valve housing 53007/3 O-ring 16419 Antiextrusion ring 16420 Material rod 16410 Spring 46409 Bush 16408 Dowel 16405 Knob 90018 Dowel...

  • Page 22: Udrive Assembly

    DRIVE ASSEMBLY...
  • Page 23 Pos. Code Description Pos. Code Description 16024 Bearing 16027 Bushing 16025 Connecting rod 16030 Closing bracket 16040 Bush 81032 Screws 16026 16031 Cover 16028 16036 Screw 16019 Bearing 16045 Tornado label 8029 Screw 16023 Dowel 16029 Gearcase 4605 Battery charger 95623 Screw 19461...

  • Page 24: Vsuction System

    SUCTIoN SYSTEM Pos. Codice Description Pos. Codice Description 16802 Filter 22028 Female extension 3/8" - male 1/4" 18351 Dispersion bell 16058 Pipe fitting 18352 Breaker flux 18026 Delivery compensation hose length 18353 Bell pipe 15 mt 18608 Pipe fitting with spring...

  • Page 25: W 50L Tank

    50L TANK TYPE D REF.18238 RICIRCULATION TYPE A RIF.16680/2 RICIRCULATION TYPE B RIF.95037 RICIRCULATION TYPE C RIF.19191/1 TYPE E REF.18225 N°2PZ. TYPE F REF.18225 Pos. Code Description Type Liner Type Type Ricirculation 18249/1 Cover LARIETTE LINER Type E Type A 85014 Stainless stell fine drum filter 3000 LINER...

  • Page 26: Accessories

    ACCESSoRIES Code 16205: FILTRO 60 MESH Code 16204: FILTRO 100 MESH Code 270: FILTER 100 MESH Code 11250: AT 250 1/4" Code16203: FILTRO 200 MESH Code 11200: AT 250 M16x1,5 Code 271: FILTER 60 MESH PISTON GUNSTOCK FILTERS Code 85014: FILTER 40 MESH - Code 85012: FILTER 20 MESH Code 11039: Green (30M) - Code 11038: White (60M) Code 37215: FILTER 40 MESH inox - Code 37216: FILTER 20 MESH inox Code 11037: Yellow (100M) - Code 11019: Red (200M)
  • Page 27 Nozzles code SFC07-20 SFC19-60 SFC29-80 SFC07-40 SFC21-20 SFC31-40 SFC09-20 SFC21-40 SFC31-60 SFC09-40 SFC21-60 SFC31-80 SFC11-20 SFC23-20 SFC33-40 SUPER FAST-CLEAN SFC23-40 SFC33-60 SFC11-40 SFC13-20 SFC23-60 SFC33-80 SFC13-40 SFC25-20 SFC39-40 SFC13-60 SFC25-40 SFC39-60 SFC15-20 SFC25-60 SFC39-80 SFC15-40 SFC27-20 SFC43-40 SFC15-60 SFC27-40 SFC43-60 SFC17-20 SFC27-60 SFC43-80...
  • Page 28 VIKING LINER Ref. 4800 EVEREST Ref. 4750 PRODUCTOR: 23801 CALOLZIOCORTE - LECCO - ITALY - Via Stoppani, 21 Tel. (39) 0341/62.11.52 - Fax (39) 0341/62.12.43 E-mail: larius@larius.com - Internet http://www.larius.com DIRECT LINE CUSTOMERS TECHNICAL SERVICE Tel. (39) 0341/621256 Fax (39) 0341/621234...
