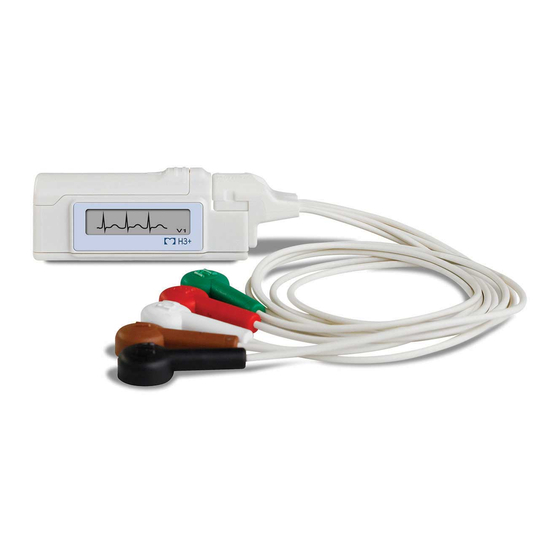

Mortara H3+ Quick Start Manual

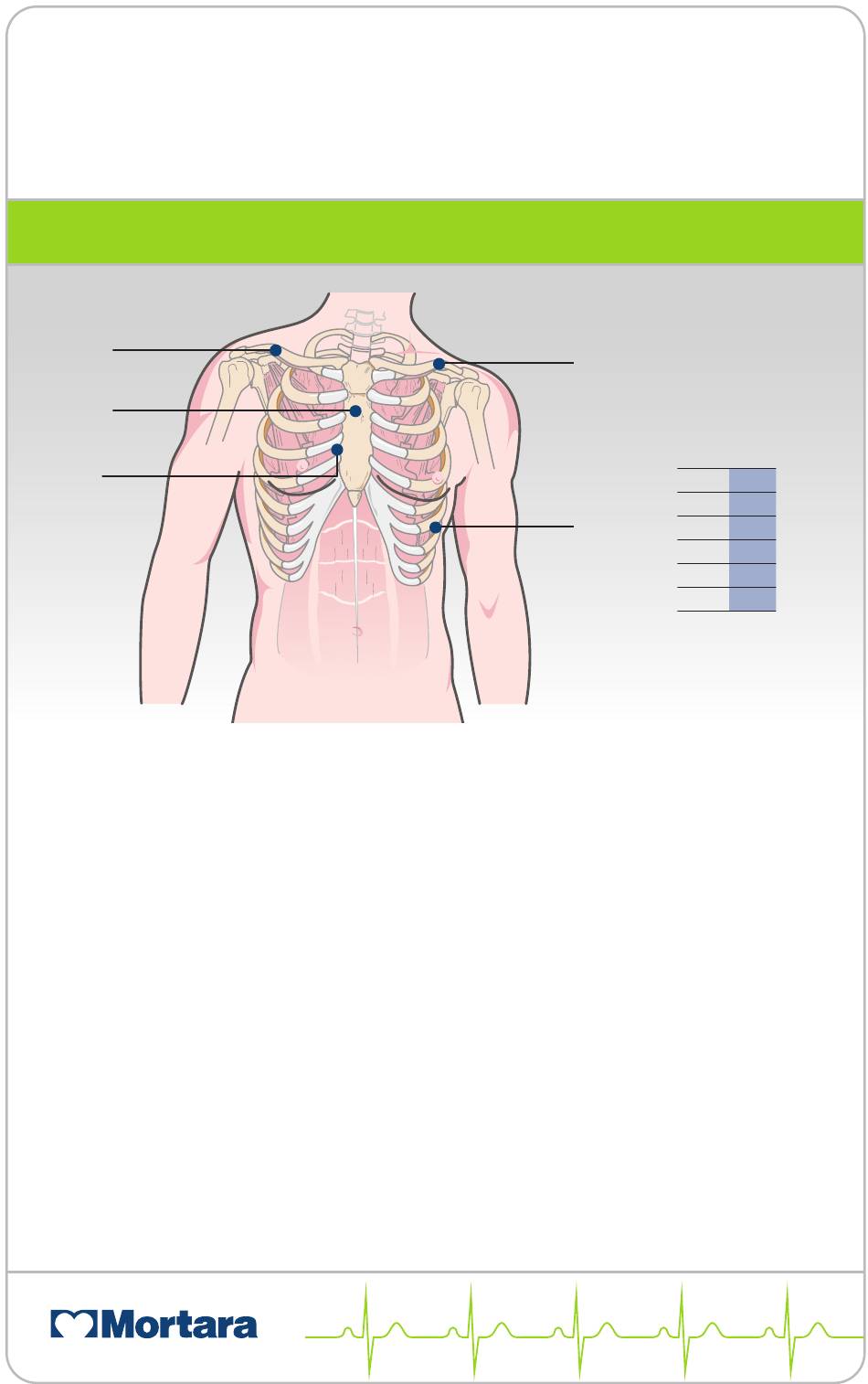

3-CHANNEL HOLTER ELECTRODE PLACEMENT

RA
RL
V

LEAD PLACEMENT

•
RA – Right clavicle as shown.
• LA – Left clavicle as shown.
•
RL – Reference or ground lead. Should be placed to
maximize patient comfort.
•
LL – Lower left side of the rib cage or body.
•
V – Precordial exploring lead.
The V lead can be positioned according to clinician
preference. (Shown in V1 position in illustration.)
Left leg electrode positioned on lower left rib cage may lessen
amount of artifact; however, to be comparable with a standard
12-lead ECG lead II, the LL lead should be placed on the
lower left side of the body, as close to hip as possible.
H3 +
LA
IEC AHA
G
R RA
LL
G LA G
L
N G RL
F G LL
C G V
G
G
G
G
