Xport Direct Block Diagram; Figure 2-2. Xport Direct Block Diagram - Lantronix XPort Direct Integration Manual

XPort Direct Block Diagram

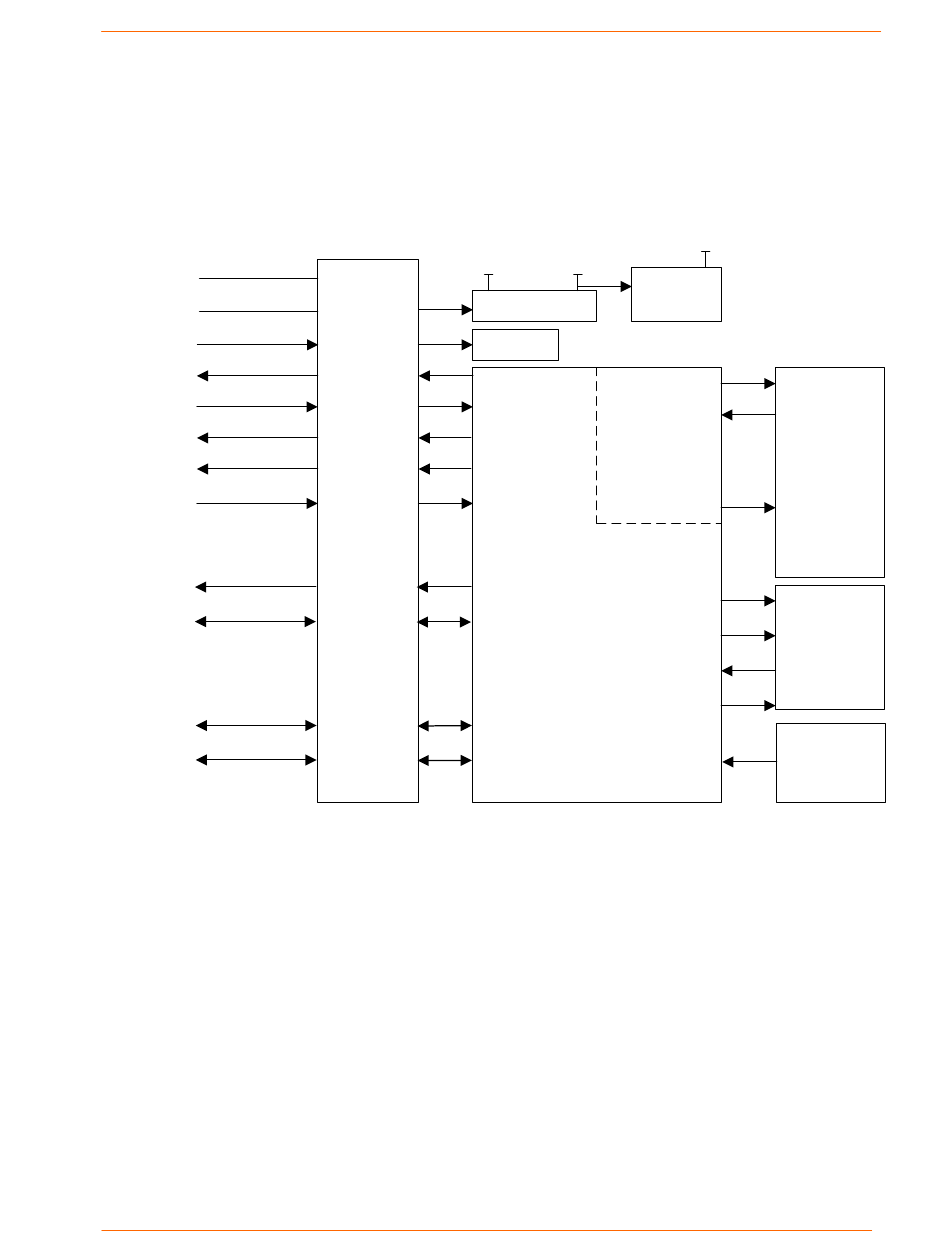

The following drawing is a block diagram of the XPort Direct showing the relationships of
the components.
GND
3.3V
Reset#
Data Out
Data In
RTS
DTR
CTS
Reserved
Reserved
CP2
CP1
XPort Direct™ Integration Guide/Data Sheet

Figure 2-2. XPort Direct Block Diagram

3.3V
Analog
1,2
3
RESET
5
7
TXD
RXD
9
RTS
11
DTR
13
15 CTS
PCB
Interface
Reserved
17
Reserved
19
CP2
21
CP1
23
2:Description and Specifications
3.3V
1.8V
Digital
1.8V
Filter
Reg
TX+/TX-
RX+/RX-
PHY
LEDs
DSTni
CS
SCK
MISO
MOSI
CLOCK
RJ45 W/
Integrated
Mag and
LEDs
1Mbit SPI
Flash
25Mhz
Crystal
8
