D-
SERIES
RECEIVING INSTRUCTIONS:
After delivery, IMMEDIATELY remove the packaging from the Hook-Base in a manner that preserves the
packaging and maintains the orientation of the product in the packaging; then inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered during the inspection, immediately record
a complete description of the damage on the bill of lading. If the product is undamaged, discard the packaging.
NOTES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product
is used is exclusively the responsibility of the owner/end-user.
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or
b) Information provided on labels affixed to the product. Neither is Vestil responsible for any consequential
damages sustained as a result of failing to exercise sound judgment while assembling, installing, using or maintaining
this product.
Table of Contents
Product Introduction........................ 2 - 4
Safety Principles............................. 8
Safety Recommendations................. 8
Loading instructions........................ 9
Use & Operation Instructions............. 9
Inspections & Maintenance............... 10
Limited Warranty............................ 13
Copyright 2015 Vestil Manufacturing Corp.
Rev. 5/28/2015
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
www.vestilmfg.com
D & H-S
ERIES
Instruction Manual
H
OPPERS
Table of Figures
Fig. 1 H-series hoppers diagram and parts list .............................. 5
Fig. 2 D-series hoppers diagram and parts list.................................. 6
Fig. 3 Leak proof H-hopper & parts diagram............................... 7
Fig. 3 H-series markings & label placement diagram.................... 11
Fig. 4 D-series markings & label placement diagram.................... 12
V
M
ESTIL
ANUFACTURING
Fax: (260) 665-1339
H
OPPERS
H-
H, manual.doc
C
ORP
e-mail:
sales@vestil.com
H
SERIES
OPPERS
Page 1 of 13
.
Advertisement
Table of Contents
Related Manuals for Vestil D Series
Summary of Contents for Vestil D Series
-
Page 1: Table Of Contents
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product is used is exclusively the responsibility of the owner/end-user. 2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either: a) Instructions in this manual; or b) Information provided on labels affixed to the product. -
Page 2: Product Introduction

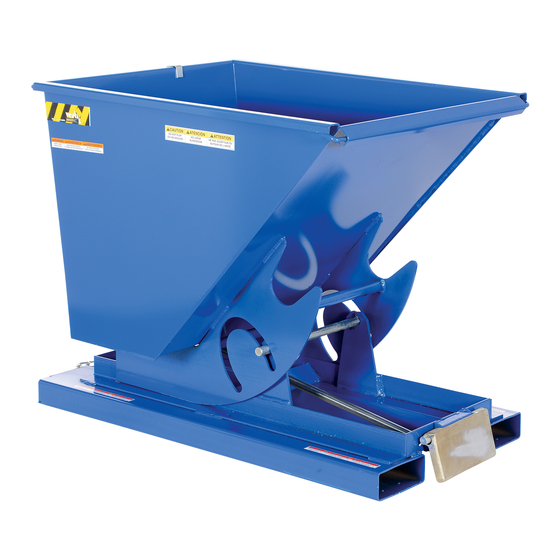

H, manual.doc Product specifications: Thank you for purchasing a fork-mountable, self-dumping hopper made by Vestil Manufacturing Co. (“Vestil”). Our hoppers are durable, high-quality products that incorporate safety-enhancing features. Standard design features include: 2 fork pockets that receive the tines (forks) of a fork truck; dump-actuating cable that allows the hopper to be dumped by the forklift driver;... - Page 3 2 lb. (0.9kg) H-DPLG-1 1in. drain plug option 2 lb. (0.9kg) H-DPLG-2 2in. drain plug option 2 lb. (0.9kg) 4 welded lifting lugs (around perimeter of hopper mouth) 150 lb. (68.2kg) Copyright 2015 Vestil Manufacturing Corp. Page 3 of 13...
- Page 4 NOTE: “Uniform capacity” is the maximum weight that each caster set can support, and equals the combined weight of the hopper and it contents. ONLY select a caster kit that equals or exceeds the maximum rated load of your hopper! Copyright 2015 Vestil Manufacturing Corp. Page 4 of 13...
-
Page 5: Fig. 1 H-Series Hoppers Diagram And Parts List
11061 in. – 18 x 2in. HHCS zinc-plated bolt 37-112-045 Pivot pin 65127 in. x 2in. zinc-plated cotter pin 33006 in. USS zinc-plated flat washer 37021 in. – 18 nylock nut Copyright 2015 Vestil Manufacturing Corp. Page 5 of 13... -
Page 6: Fig. 2 D-Series Hoppers Diagram And Parts List
01-112-009 Hinge pin 68015 ¾ in. external retaining ring 64141 in. x 2 in. spring pin 37-537-010 Chute release assembly 37-037-040 Chute release bumper plate 99-145-037 in. x 36in. safety chain Copyright 2015 Vestil Manufacturing Corp. Page 6 of 13... -
Page 7: Fig. 3 Leak Proof H-Hopper & Parts Diagram
Rinse the hopper chute after emptying contents, and dry the chute before filling it again. To dump a leak-proof H-hopper, simply pull the release lever. Once released, the cylinder will extend until the chute dumps. Manually return the chute to the latched position. Copyright 2015 Vestil Manufacturing Corp. Page 7 of 13... -
Page 8: Safety Principles
The hopper must not be able to rotate while it is suspended. DO NOT allow people to ride on or in the hopper. DO NOT use the hopper if any product label (see p. 10 or 11) is unreadable, damaged, or missing. Contact Vestil to order replacement labels. -
Page 9: Loading Instructions
Confirm that the chute is properly latched by raising the forks. The chute should not rotate. If necessary, lower the forks completely and manually latch the chute to the frame by pressing down on the back of the chute (see “H-series” diagram in Step 4). Copyright 2015 Vestil Manufacturing Corp. Page 9 of 13... -
Page 10: Inspections & Maintenance
NEVER modify the hopper unless you are certain that the hopper will be safe to use afterwards, or without first obtaining express, written approval from Vestil. Modifications automatically void the Limited Warranty and might make the hopper unsafe to use. -
Page 11: Fig. 3 H-Series Markings & Label Placement Diagram
Rev. 5/28/2015 H, manual.doc Fig. 3: H-series markings & label placement diagram Copyright 2015 Vestil Manufacturing Corp. Page 11 of 13... -
Page 12: Fig. 4 D-Series Markings & Label Placement Diagram
Rev. 5/28/2015 H, manual.doc Fig. 4: D-series markings & label placement diagram Copyright 2015 Vestil Manufacturing Corp. Page 12 of 13... -
Page 13: Limited Warranty
(you) for warranty service. Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an authorized distributor AND Vestil has been fully paid.
