Vestil DCR-205 Series Instruction Manual

Vestil DCR-205 Series Instruction Manual

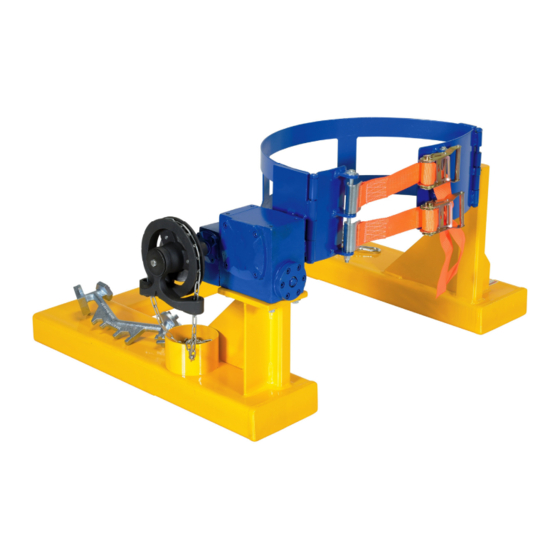

Fork-mounted drum handlers

Advertisement

Quick Links

Rev. 3/21/2017
DCR-205-20 F
Receiving instructions: After delivery, remove the packaging from the product. Inspect the product closely
to determine whether it sustained damage during transport. If damage is discovered, immediately record a
complete description of the damage on the bill of lading. If the product is undamaged, discard the
packaging.
Note: The end-user is solely responsible for confirming that product design complies with all laws,
regulations, codes, and mandatory standards applied where the product is used.
