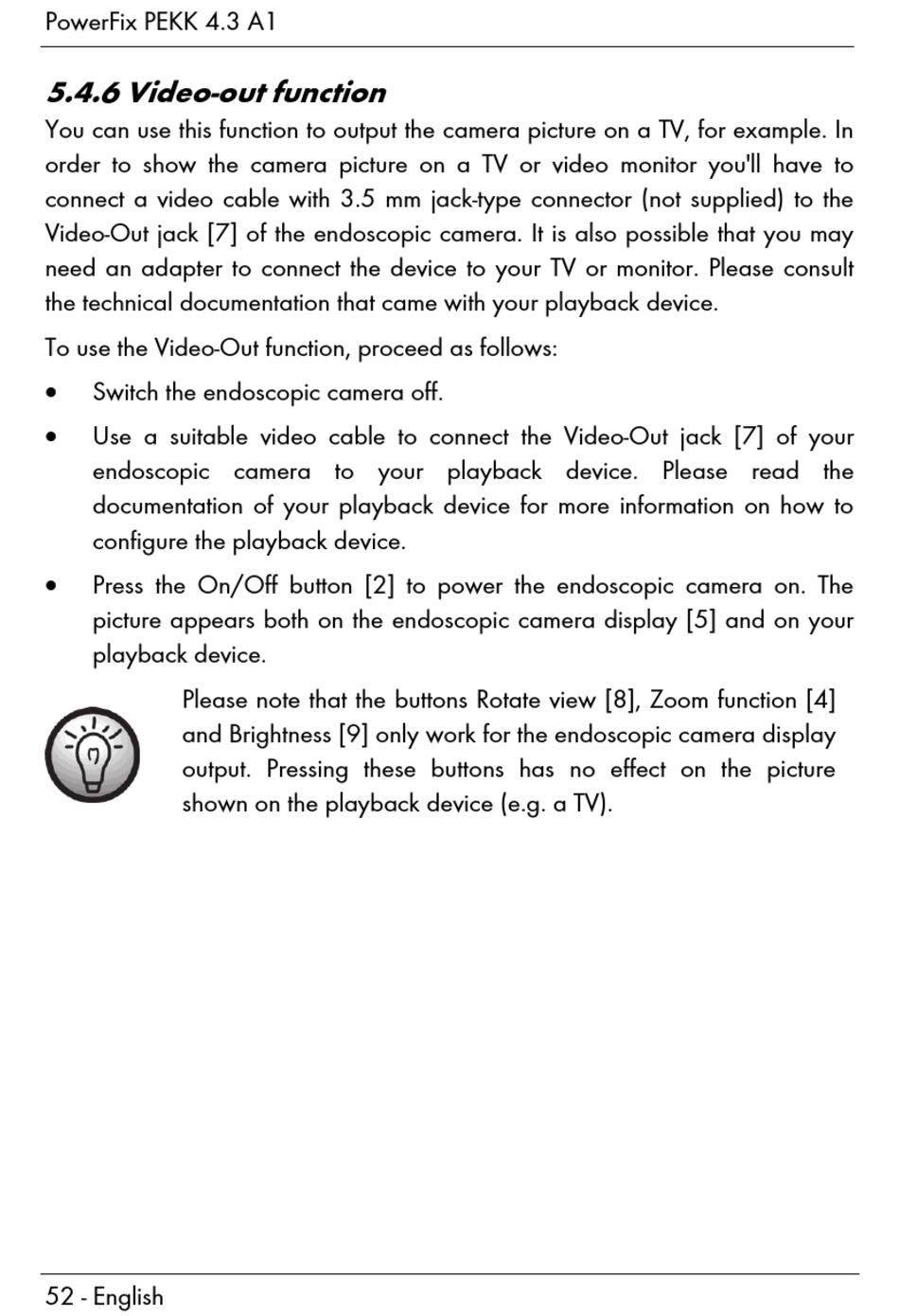

5.4.6 Video-out function

You can use this function to output the camera picture on a TV, for example. In
order to show the camera picture on a TV or video monitor you'll have to
connect a video cable with 3.5 mm jack-type connector (not supplied) to the
Video-Out jack [7] of the endoscopic camera. It is also possible that you may
need an adapter to connect the device to your TV or monitor. Please consult
the technical documentation that came with your playback device.
To use the Video-Out function, proceed as follows:

Switch the endoscopic camera off.

Use a suitable video cable to connect the Video-Out jack [7] of your
endoscopic camera to your playback device. Please read the
documentation of your playback device for more information on how to
configure the playback device.

Press the On/Off button [2] to power the endoscopic camera on. The
picture appears both on the endoscopic camera display [5] and on your
playback device.
Please note that the buttons Rotate view [8], Zoom function [4]
and Brightness [9] only work for the endoscopic camera display
output. Pressing these buttons has no effect on the picture
shown on the playback device (e.g. a TV).
