Total Access 904/908
Quick Start Guide
DSX-1 (T1 0/2) P
INOUTS
Pin Name
1 R
2 T
3 —
4 R1
5 T1
6-8 —
NET (T1 0/1) P
INOUTS
Pin Name
1 R1
2 T1
3 —
4 R
5 T
6-8 —
10/100B T (ETH 0/1) P
ASE INOUTS
Pin Name
1 TX1
2 TX2
3 RX1
4, 5 —
6 RX2
7, 8 —
Quick Start Guide, 61210908L1-13C, November 2006

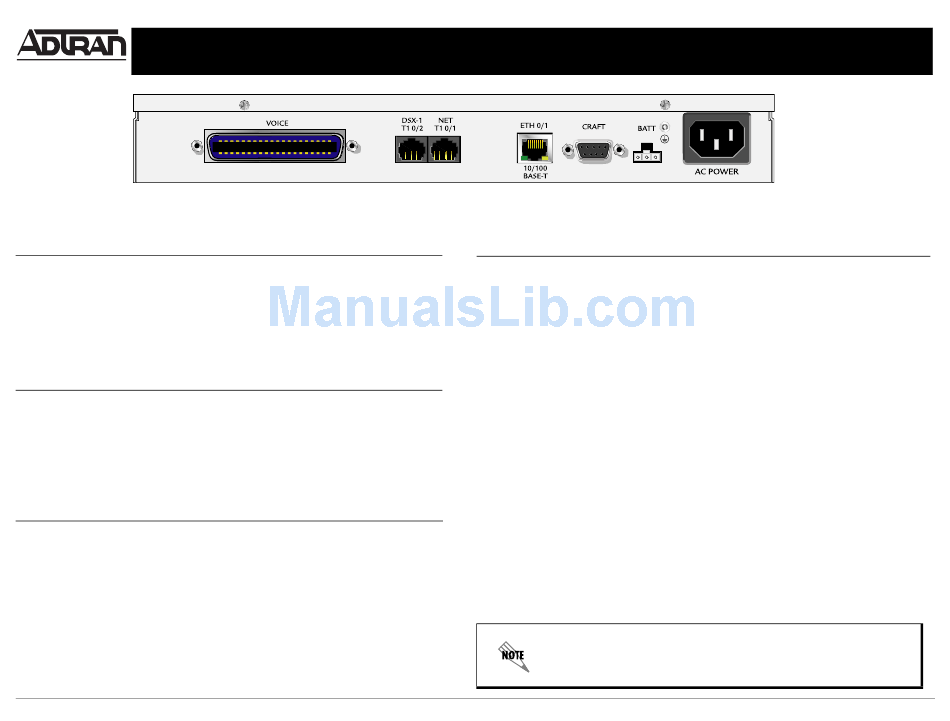

Total Access 904L1/908L1 Back Panel Layout
Description
Transmit data toward the DTE (Ring)
Transmit data toward the DTE (Tip)
Unused
Receive data from the DTE (Ring 1)
Receive data from the DTE (Tip 1)
Unused
Description
Receive data from the network (RIng 1)
Receive data from the network (Tip 1)
Unused
Transmit data toward the network (Ring)
Transmit data toward the network (Tip)
Unused
Description
Transmit Positive
Transmit Negative
Receive Positive
Unused
Receive Negative
Unused
For more detailed documentation, visit us online at www.adtran.com.
CRAFT P
INOUTS
Pin Name Description
1 DCD Data Carrier Detect (output)
2 RD Receive Data (output)
3 TD Transmitted Data (input)
4 DTR Data Terminal Ready (input)
5 GND Ground - connected to unit chassis
6 DSR Data Set Ready (output)
7 RTS Request To Send - flow control (input)
8 CTS Clear To Send - flow control (output)
9 RI Ring Indicate (output)
VOICE C
ONNECTION
A single 50-pin female amphenol connector provides the interconnect wiring for the analog circuits
(FXS). Refer to the Total Access 900 Series Hardware Installation Guide on the ADTRAN OS System
Documentation CD for a detailed pinout.
B B C
ATTERY ACKUP ONNECTION
An optional battery backup system (P/N 1200641L1) is available for the Total Access 904/908. Refer
to the documentation available for your specific battery backup unit for more information on this
connection.
C Y A
ONFIGURE OUR PPLICATION
More detailed documentation for configuring your ADTRAN unit is provided on the ADTRAN OS
System Documentation CD included in your shipment. For more detail on hardware setup, refer to the
Hardware Installation Guide. For more detail on configuring your system, refer to the ADTRAN
Operating System (AOS) Command Reference Guide, configuration guides, and technical support
notes.
Important: For additional details on product features, specifications,
installation, and safety, refer to the appropriate Hardware Installation
Guide on the ADTRAN OS System Documentation CD shipped with the
base unit and available online at www.adtran.com.
P/N 1210904L1, 1210908L1
Copyright © 2006 ADTRAN, All Rights Reserved
