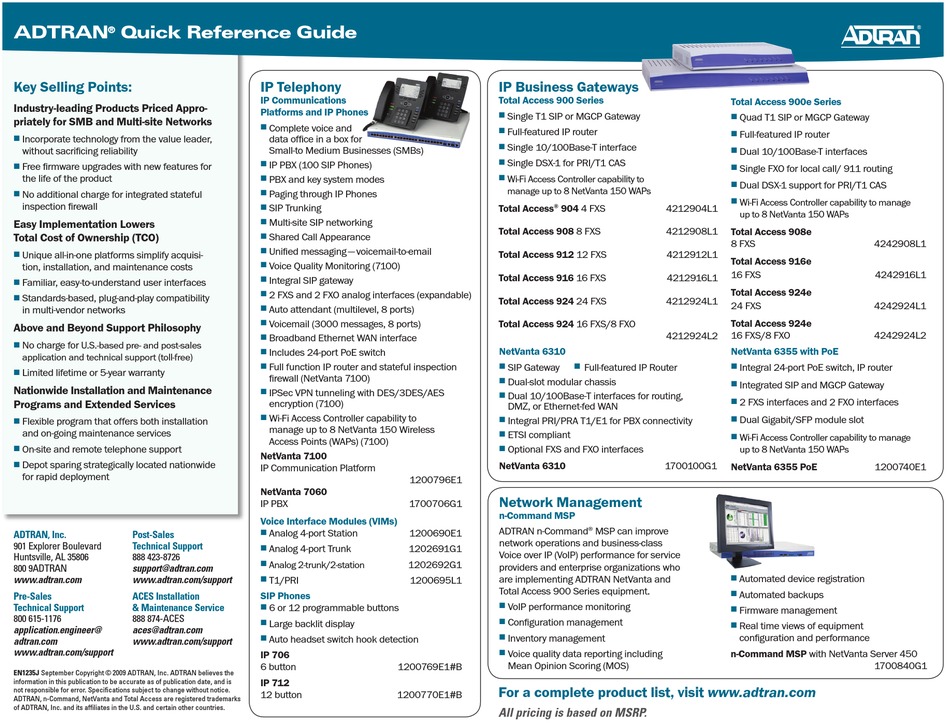

ADTRAN Quick Reference Guide
®
Key Selling Points:
Industry-leading Products Priced Appro-
priately for SMB and Multi-site Networks
Incorporate technology from the value leader,
n
without sacrificing reliability
Free firmware upgrades with new features for
n
the life of the product
No additional charge for integrated stateful
n
inspection firewall
Easy Implementation Lowers
Total Cost of Ownership (TCO)
Unique all-in-one platforms simplify acquisi-
n
tion, installation, and maintenance costs
Familiar, easy-to-understand user interfaces
n
Standards-based, plug-and-play compatibility
n
in multi-vendor networks
Above and Beyond Support Philosophy
No charge for U.S.-based pre- and post-sales
n
application and technical support (toll-free)
Limited lifetime or 5-year warranty
n
Nationwide Installation and Maintenance
Programs and Extended Services
Flexible program that offers both installation
n
and on-going maintenance services
On-site and remote telephone support
n
Depot sparing strategically located nationwide
n
for rapid deployment
ADTRAN, Inc. Post-Sales
901 Explorer Boulevard
Technical Support
Huntsville, AL 35806 888 423-8726
800 9ADTRAN support@adtran.com
www.adtran.com www.adtran.com/support
Pre-Sales ACES Installation
Technical Support & Maintenance Service
800 615-1176 888 874-ACES
application.engineer@ aces@adtran.com
adtran.com www.adtran.com/support
www.adtran.com/support
EN1235J September Copyright © 2009 ADTRAN, Inc. ADTRAN believes the
information in this publication to be accurate as of publication date, and is
not responsible for error. Specifications subject to change without notice.
ADTRAN, n-Command, NetVanta and Total Access are registered trademarks
of ADTRAN, Inc. and its affiliates in the U.S. and certain other countries.
IP Telephony
IP Communications
Platforms and IP Phones
Complete voice and
n
data office in a box for
Small-to Medium Businesses (SMBs)
IP PBX (100 SIP Phones)
n
PBX and key system modes
n
Paging through IP Phones
n
SIP Trunking
n
Multi-site SIP networking
n
Shared Call Appearance
n
Unified messaging — voicemail-to-email
n
Voice Quality Monitoring (7100)
n
Integral SIP gateway
n
2 FXS and 2 FXO analog interfaces (expandable)
n
Auto attendant (multilevel, 8 ports)
n
Voicemail (3000 messages, 8 ports)
n
Broadband Ethernet WAN interface
n
Includes 24-port PoE switch
n
Full function IP router and stateful inspection
n
firewall (NetVanta 7100)
IPSec VPN tunneling with DES/3DES/AES
n
encryption (7100)
Wi-Fi Access Controller capability to
n
manage up to 8 NetVanta 150 Wireless
Access Points (WAPs) (7100)
NetVanta 7100
IP Communication Platform
1200796E1
NetVanta 7060
IP PBX 1700706G1
Voice Interface Modules (VIMs)
Analog 4-port Station 1200690E1
n
Analog 4-port Trunk 1202691G1
n
Analog 2-trunk/2-station 1202692G1
n
T1/PRI 1200695L1
n
SIP Phones
6 or 12 programmable buttons
n
Large backlit display
n
Auto headset switch hook detection
n
IP 706
6 button 1200769E1#B
IP 712
12 button 1200770E1#B
Smart Solutions for a Connected World.
IP Business Gateways
Total Access 900 Series
Single T1 SIP or MGCP Gateway
n
Full-featured IP router
n
Single 10/100Base-T interface
n
Single DSX-1 for PRI/T1 CAS
n
Wi-Fi Access Controller capability to
n
manage up to 8 NetVanta 150 WAPs
Total Access ® 904 4 FXS 4212904L1
Total Access 908 8 FXS 4212908L1
Total Access 912 12 FXS
4212912L1
Total Access 916 16 FXS 4212916L1
Total Access 924 24 FXS 4212924L1
Total Access 924 16 FXS/8 FXO
4212924L2
NetVanta 6310
SIP Gateway Full-featured IP Router
n n
Dual-slot modular chassis
n
Dual 10/100Base-T interfaces for routing,
n
DMZ, or Ethernet-fed WAN
Integral PRI/PRA T1/E1 for PBX connectivity
n
ETSI compliant
n
Optional FXS and FXO interfaces
n
NetVanta 6310 1700100G1

Network Management

n-Command MSP
ADTRAN n-Command ® MSP can improve
network operations and business-class
Voice over IP (VoIP) performance for service
providers and enterprise organizations who
are implementing ADTRAN NetVanta and
Total Access 900 Series equipment.
VoIP performance monitoring
n
Configuration management
n
Inventory management
n
Voice quality data reporting including
n
Mean Opinion Scoring (MOS)
For a complete product list, visit www.adtran.com
All pricing is based on MSRP.
Total Access 900e Series
Quad T1 SIP or MGCP Gateway
n
Full-featured IP router
n
Dual 10/100Base-T interfaces
n
Single FXO for local call/ 911 routing
n
Dual DSX-1 support for PRI/T1 CAS
n
Wi-Fi Access Controller capability to manage
n
up to 8 NetVanta 150 WAPs
Total Access 908e
8 FXS 4242908L1
Total Access 916e
16 FXS 4242916L1
Total Access 924e
24 FXS 4242924L1
Total Access 924e
16 FXS/8 FXO 4242924L2
NetVanta 6355 with PoE
Integral 24-port PoE switch, IP router
n
Integrated SIP and MGCP Gateway
n
2 FXS interfaces and 2 FXO interfaces
n
Dual Gigabit/SFP module slot
n
Wi-Fi Access Controller capability to manage
n
up to 8 NetVanta 150 WAPs
NetVanta 6355 PoE
1200740E1
Automated device registration
n
Automated backups
n
Firmware management
n
Real time views of equipment
n
configuration and performance
n-Command MSP with NetVanta Server 450
1700840G1
