Persistent Systems Wave Relay MPU5 Basic Operator Manual page 37

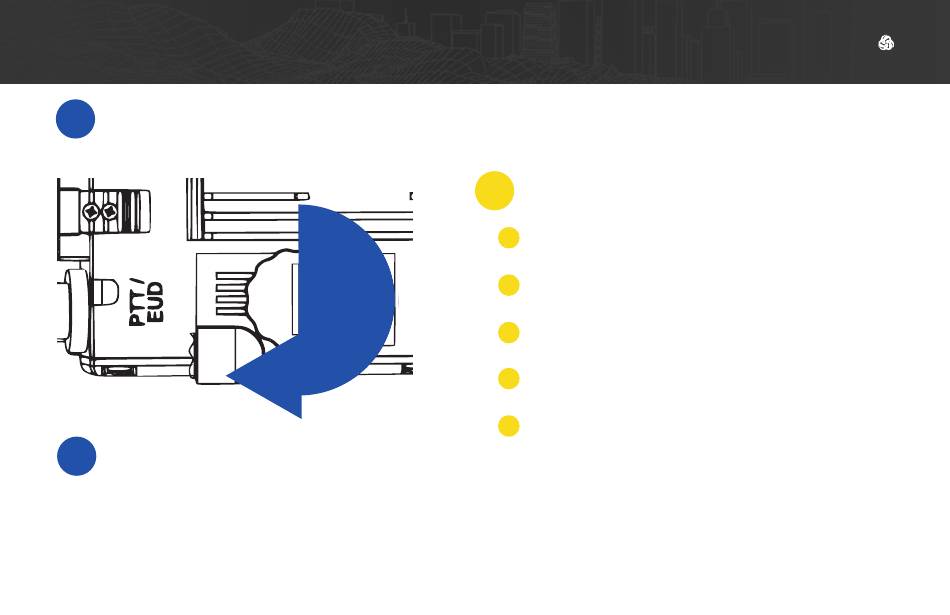

Twist the thumbscrew clockwise to attach
4
the cable to the device.
Ensure that the cable is firmly attached and
5
the connector is sitting flush with the case.
NO NDA REQUIRED
The export and/or the release of certain products, technology and software to non-US persons might
be subject to export restrictions. Please refer to the US export laws & regulations for details.
PHYSICAL SETUP: SIDE CONNECTORS
What do I do if the cable won't mate
?
with the side connector?
Ensure that you are trying to connect the cable to
1
the correct side connector.
Ensure that you are aligning the key pin properly
2
and the cable is not upside down.
Ensure that no parts of the thumbscrew and the
3
side connector are bent or damaged.
Ensure that there are no foreign objects in the
4
thumbscrew or side connector.
Ensure that the cable connector is flush with the
5
case.
© 2010 - 2020 Persistent Systems, LLC – All Rights Reserved
03EN073 Rev. M PAGE 37 OF 176
