PHYSICAL SETUP: RF SETUP

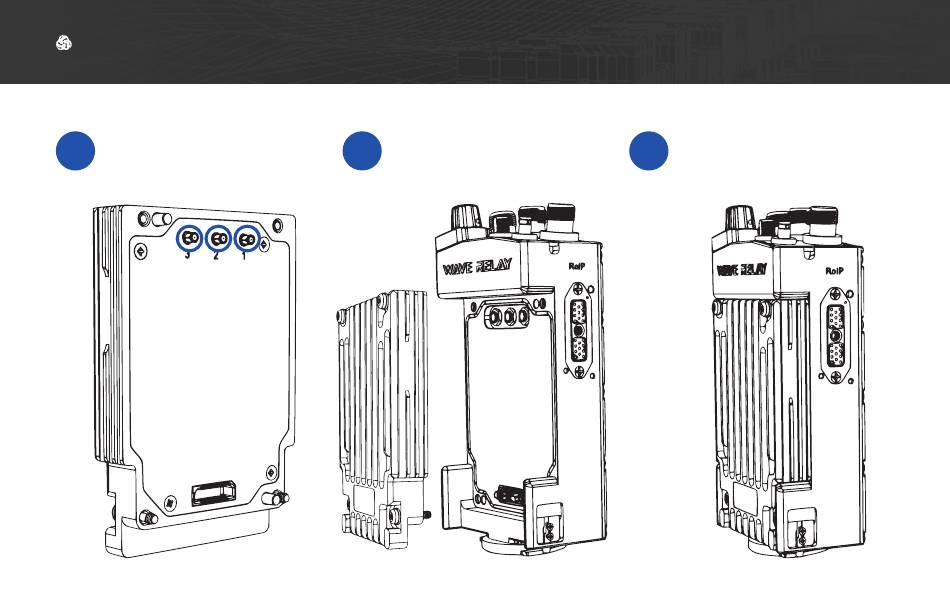

Inserting the RF Module

If there are rubber caps
1
on the RF module con-
tacts, remove them.
PAGE 20 OF 176 03EN073 Rev. M
© 2010 - 2020 Persistent Systems, LLC – All Rights Reserved
Align the RF module
2
with the chassis.
Apply even force and
3
press the RF module
into the chassis.
