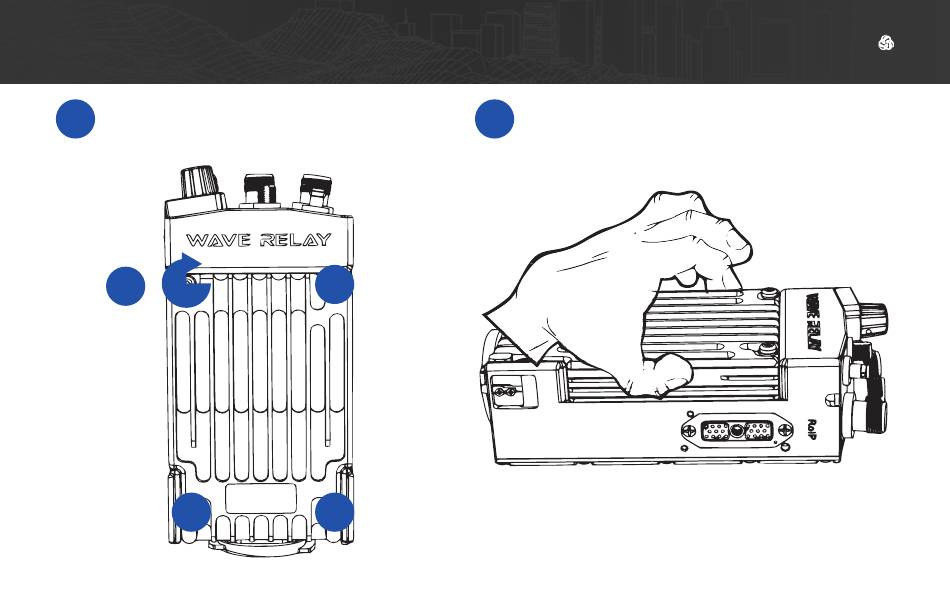

Tighten screws clockwise in diagonal
4
order with a #1 Phillips Head screwdriver
until they stop (min. 4 in-lbs. of torque)
1
4
NO NDA REQUIRED
The export and/or the release of certain products, technology and software to non-US persons might
be subject to export restrictions. Please refer to the US export laws & regulations for details.
5
3
2
PHYSICAL SETUP: RF SETUP
Pull on the RF module to verify that it is
attached securely. Ensure there are no gaps
in between the RF module and the MPU5
chassis.
