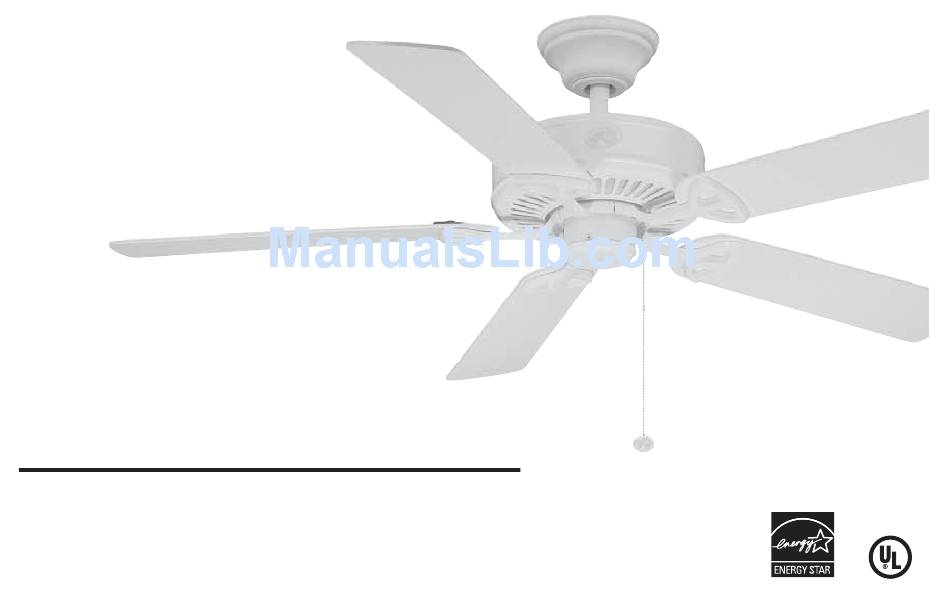

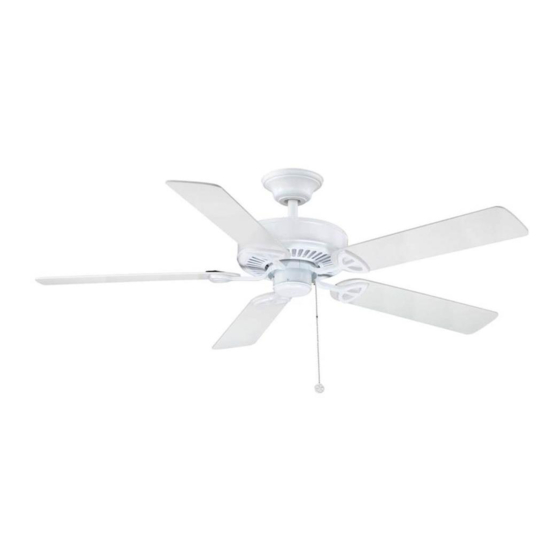

- Page 1 170 721 Farmington Ceiling Fan Owner’s Manual Farmington Ventilador de Techo de 1,32 Manual del Propietario...
-
Page 2: Table Of Contents
52” Farmington Thank you for purchasing our ceiling fan. This product has been manufactured with the highest standards of safety and quality. Ceiling Fan Date Purchased Store Purchased Table of Contents 170-721 Safety Rules ....1 UL Model No. -
Page 3: Safety Rules
Safety Rules – Read and Save These Instructions To reduce the risk of electric shock, insure electricity has been turned off After making electrical connections, spliced conductors should be turned at the circuit breaker or fuse box before beginning. upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding All wiring must be in accordance with the National Electrical Code conductor on one side of the outlet box and ungrounded conductor on the... -
Page 4: Unpacking Your Fan
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Set of blades (5) Fan motor assembly Electrical Hardware (3 plastic wire connectors) Canopy assembly Blade arms assembly (5) Ball/downrod assembly Pull chain and fob Rubber gasket Balance kit WARNING... -
Page 5: Installing Your Fan
Installing Your Fan Provide Strong Support Figures 1~3 are examples of different ways to Tools Required mount the outlet box. Phillips screwdriver, adjustable wrench, step ladder and wire cutters. Recessed Ceiling Outlet Box Mounting Plate Figure 3 Mounting Options Outlet Box Note: You may need a longer downrod to maintain If there isn't an existing UL listed mounting box, proper blade clearance when installing on a steep,... -
Page 6: Hanging The Fan
Hanging the Fan Motor Wires Remove the Pin in Locked Canopy Ring Positioon Ball/Downrod REMEMBER to turn off the power. Follow the Assembly steps below to hang your fan properly. NOTE: This ceiling fan is supplied with two types Ceiling Canopy of hanging assemblies;... - Page 7 Place the rubber gasket over the remaining Option 2: Screw and Collar three screws, route the wires exiting the top of Lock Washer Close-to-Ceiling Mounting the fan motor through the canopy ring (make (3 Places) sure the slot openings are on top). then proceed Remove the canopy ring from the canopy.
-
Page 8: Installing Fan To The Electrical Box
Installing Fan to UL Listed Outlet Box Standard Mounting Close-to-Ceiling Mounting the Electrical Box WARNING 120V Wires TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY. MOUNT FAN ONLY TO AN OUTLET BOX OR SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN Ceiling Mounting SUPPORT AND USE THE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. - Page 9 Connect the fan motor black wire to the supply Making the Electrical SUPPLY CIRCUIT black (hot) wire using a wire nut (Figure 13). Connections Connect the blue wire for light kit to the black Ground household supply wire. REMEMBER to disconnect the power. Conductor Turn wire nut connections upward, spreading If you feel you do not have enough electrical...
-
Page 10: Finishing The Fan Installation
Close-to-Ceiling Mounting Finishing the Fan Remove the fan from the hook on the hanger Outlet Box Installation bracket. Secure the canopy to the hanger bracket with four screws included with your fan. (Fig. 15) Standard Ceiling Mounting Hanger Raise up canopy ring and line up the 4 tabs with Screws Bracket WARNING... -
Page 11: Attaching The Fan Blades
Attaching the Fan Blades NOTE MOTOR IS SHIPPED WITH RUBBER MOTOR STOPS TO PREVENT MOVEMENT DURING TRANSPOR- TATION. REMOVE MOTOR STOPS PRIOR TO ATTACHING BLADE BRACKETS. (FIG. 16) NOTE: Your fan blades are reversible. Select the Rubber packing mounts blade side finish which best accentuates your decor. -
Page 12: Blade Balancing
Blade Balancing The following procedure should correct most fan wobble. Check after each step. Touching Ceiling Check that all blade and blade bracket screws are secure. Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip of one of the blades. -
Page 13: Operating Your Fan
Operating Your Fan WARNING LOCKING SLOTS OF CEILING CANOPY ARE Warm weather - (Forward) A downward air flow PRVIDED ONLY AS AN AID TO MOUNTING. DO creates a cooling effect as shown in Figure 20. NOT LEAVE FAN ASSEMBLY UNATTENDED UNTIL ALL FOUR CANOPY SCREWS ARE This allows you to set your air conditioner on a ENGAGED AND FIRMLY TIGHTENED. -
Page 14: Care Of Your Fan
Care of Your Fan Troubleshooting Here are some suggestions to help you maintain PROBLEM SOLUTION your fan. Fan will not start Check main and branch circuit fuses or breakers. Because of the fan's natural movement, some Check line wire connections to the fan and switch wire connections may become loose. -
Page 15: Specifications
Specifications FAN SIZE SPEED VOLTS AMPS WATTS N.W. G.W. C.F. 0.19 1822 6.85 kgs 7.66 kgs 52” MED. 0.34 3534 1.57’ (15.08 lbs) (16.87 lbs) HIGH 0.48 5311 These are approximate measures. They do not include Amps and Wattage used by the light kit . -
Page 16: Warranty Information
Lifetime Limited Warranty (lifetime warranty on motor) The retailer warrants the fan motor to be free from defects in workmanship and material present at time of You must present a copy of the original purchase receipt to obtain warranty shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The service.
