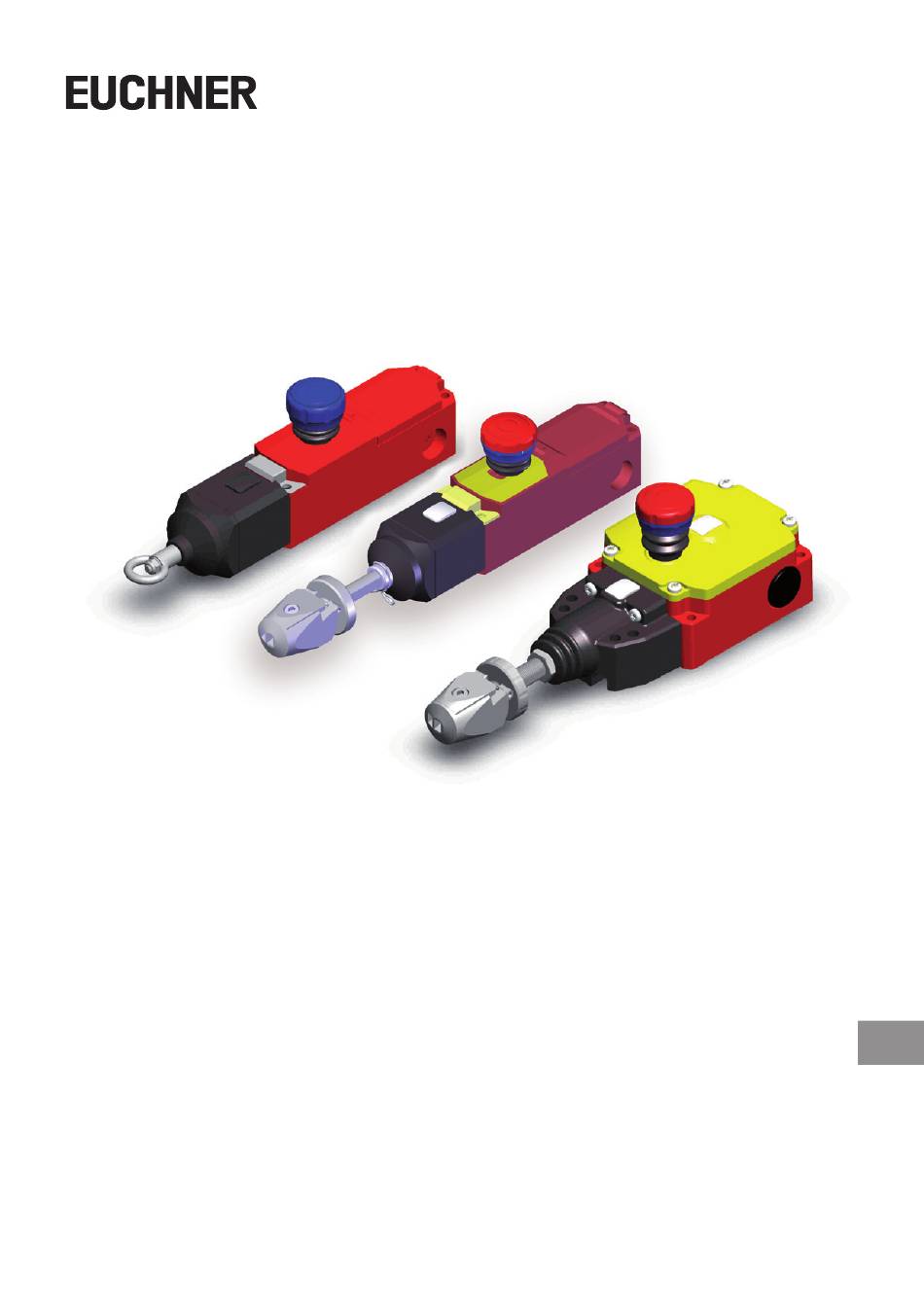

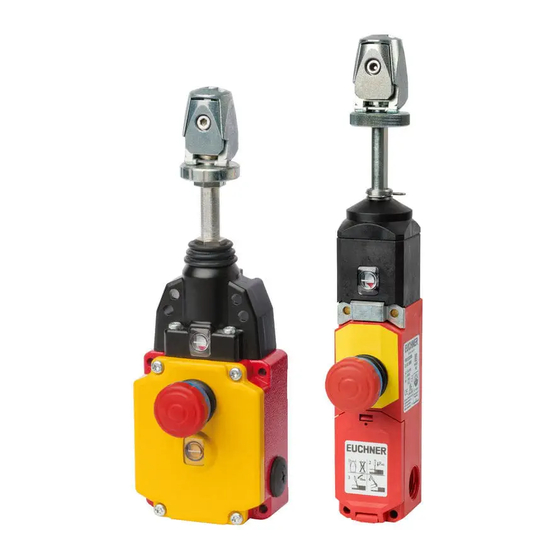

- Page 1 Operating Instructions Rope Pull Switches RPS…...
-
Page 2: Table Of Contents
Operating Instructions Rope Pull Switches RPS… Contents Correct use ......................3 Layout ........................3 Function ....................... 4 3.1. RPS…S ............................4 3.2. RPS…P ............................4 3.3. Pre-failure monitoring (optional) ......................4 Safety precautions ....................5 Identification of the rope pull switch ..............6 5.1. -
Page 3: Correct Use
Operating Instructions Rope Pull Switches RPS… 1. Correct use According to EN 60947-5-5 and EN ISO 13850, rope pull switches can be used to initiate an emergency stop function in order to avoid existing or impending hazard situations. The following applicable standards must be taken into account for this purpose: Regulations on installation and operation: Ì... -
Page 4: Function
Operating Instructions Rope Pull Switches RPS… 3. Function The system consists of the switching device, a red pull rope, support points and a counterspring. The pull device of the rope pull switch is connected with a pull rope. The emergency stop function can be tripped by pulling this rope. -
Page 5: Safety Precautions
Operating Instructions Rope Pull Switches RPS… Safety precautions Ì All system components must be mounted on surfaces that can reliably withstand all the forces that may occur. Ì Routing the rope as straight as possible results in low frictional forces in the system. From a system length of 25 m, only rope pulley blocks may be used as rope supports. -
Page 6: Identification Of The Rope Pull Switch
5.2. Identification by item number The item number of the switch is located beneath the switch designation on the switch label. Please state this number in correspondence and orders to EUCHNER GmbH + Co. KG. (translation of the original operating instructions) 2090276-10-12/20... -
Page 7: Dimensions
Operating Instructions Rope Pull Switches RPS… 6. Dimensions RPS…SC…/ RPS…PC… RPS…PR… Clamping head Pull lug Window Window P Pull-release (blue reset button) P Pull-release (blue reset button) S Emergency stop with pull-release (red button) 42,5 37,5 76,8 37,5 42,5 76,8 RPS-M…... -
Page 8: Mounting
Operating Instructions Rope Pull Switches RPS… 7. Mounting NOTICE Ì Under ideal installation conditions it is possible to achieve a maximum rope length of 75 m. Ì Depending on the actual situation, there may be increased friction in the system. This friction may be so high that automatic resetting is no longer possible as described above. -
Page 9: Selection Of System Components
This is a precondition for direction-independent activation at any point along the rope length. In order to achieve fast and simple compliance with this requirement, we recommend the use of EUCHNER tensioner springs with integrated overstretch protection (see Table 1). Additional fixing and installation materials as well as ropes are also optionally available. -
Page 10: Installation Sequence
Operating Instructions Rope Pull Switches RPS… Table 2: Permissible rope lengths Rope length L in meters [m] max. ± 40 K ± 35 K ± 30 K ± 25 K ± 20 K ± 15 K ± 10 K ± 5 K ±... - Page 11 Operating Instructions Rope Pull Switches RPS… Fasten the RPS switch with 4 M5 screws (also M6 for Display RPS-M). Maximum tightening torque M = 2 Nm. The emergency stop switches must be positioned so that the rope or emergency stop slam button can be reached without obstacles in hazardous situations.
-
Page 12: Mechanical Function Test
Operating Instructions Rope Pull Switches RPS… 10. Mechanical function test Pull button up: Ì safety contacts closed. Actuate pull rope or press button: Ì safety contacts open. For each test procedure: Ì actuate button or Ì pull rope. max. 200 N Forcefully actuate the pull rope several times to settle the rope pull section. -
Page 13: Electrical Connection
Operating Instructions Rope Pull Switches RPS… 11. Electrical connection WARNING Ì Electrical connection must be performed only by authorized personnel. Ì Strip the insulation from the ends of the individual wires over a length of 6 ± 1 mm to ensure a reliable contact. NOTICE Ì... -
Page 14: Connection Example
The following connection example shows a possible circuit structure with redundant design at the cable level as well. The signals of the emergency stop chain are evaluated by a safety relay (ESM from EUCHNER). The overall control concept into which the rope pull switch RPS is integrated must be evaluated by the end consumer/ machine designer in accordance with EN ISO 13849-2. -
Page 15: Technical Data
Operating Instructions Rope Pull Switches RPS… 14. Technical data Version RPS… RPS-M… Electrical data (refers to the switch without plug connector) Rated insulation voltage 250 V/AC Rated operating voltage 240 V Rated impulse withstand voltage 2.5 kV Conditional short-circuit current 100 A Continuous thermal current 10 A... -
Page 16: Switching Elements
In the event of a fault in the switching system or latching device, the switch must be replaced and can be sent to EUCHNER GmbH + Co. KG for inspection. (translation of the original operating instructions) 2090276-10-12/20... -
Page 17: Exclusion Of Liability
Operating Instructions Rope Pull Switches RPS… 17. Exclusion of liability If the instructions (correct use, safety regulations, mounting and connection by trained personnel, check for safe function) are violated, this renders the manufacturer’s liability null and void. 18. Accessories Designation Description/version Packaging unit Order no./item... -
Page 18: Ec Declaration Of Conformity
Operating Instructions Rope Pull Switches RPS… 19. EC declaration of conformity (translation of the original operating instructions) 2090276-10-12/20... - Page 19 Operating Instructions Rope Pull Switches RPS… 2090276-10-12/20 (translation of the original operating instructions)
- Page 20 Edition: 2090276-10-12/20 Title: Operating Instructions Rope Pull Switches RPS… (translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 12/2020 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information. 0800000912_01...
