Using a Single-port Ethernet Power Supply

Using a Single-port Ethernet Power Supply

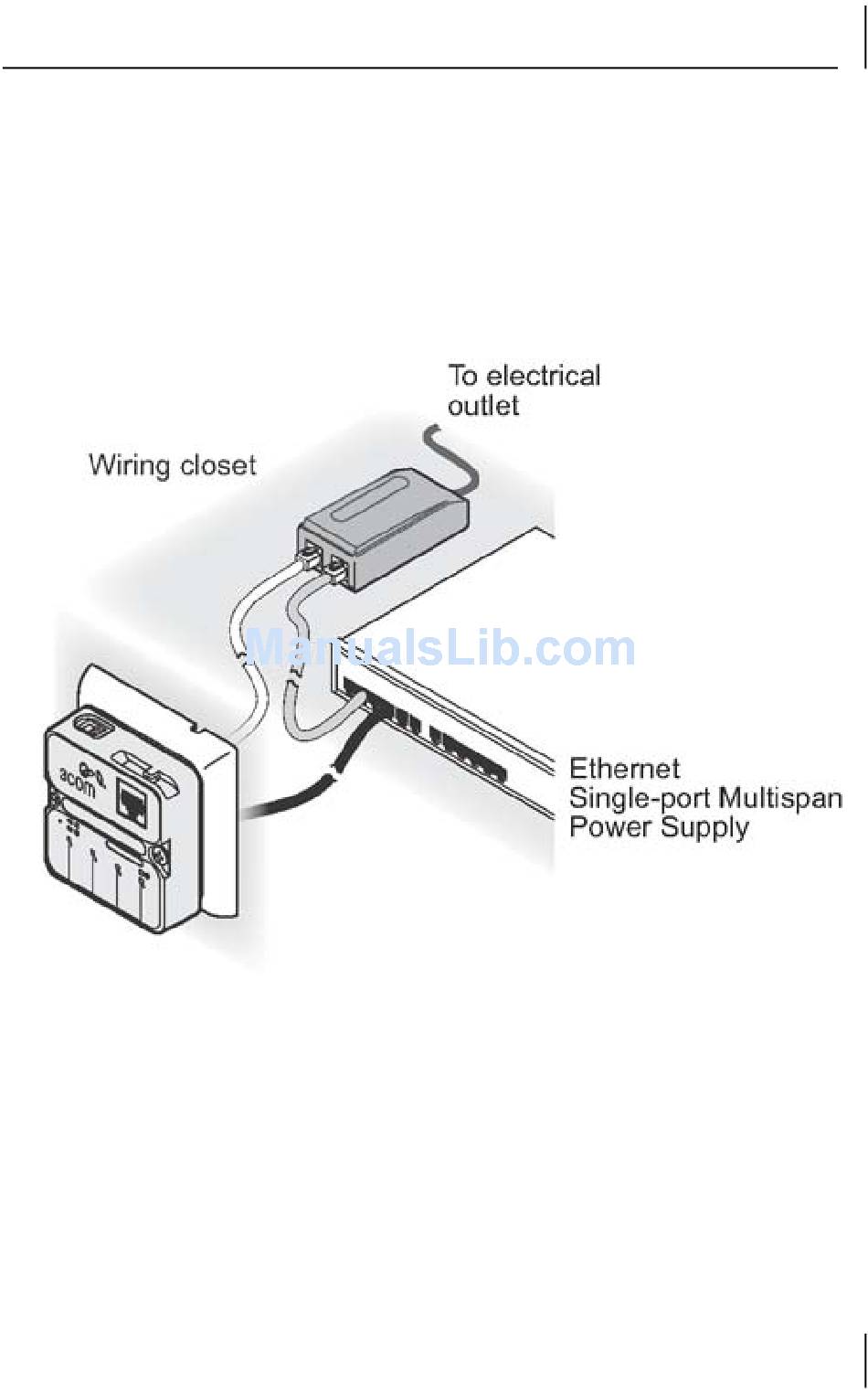

To use a single-port Ethernet power supply, connect the power
supply to the network hub or switch and to the IntelliJack white
cable, as shown in the following illustration. The black cable
should be connected to a data port on the wire closet switch.
23
