Installing the IntelliJack

Connecting Devices to the IntelliJack

Once the power source and the data source have been verified in
good working order and the IntelliJack has been installed and
mounted, connect your networking devices (such as computers,
printers, IP phones, cameras, etc.) to the IntelliJack.

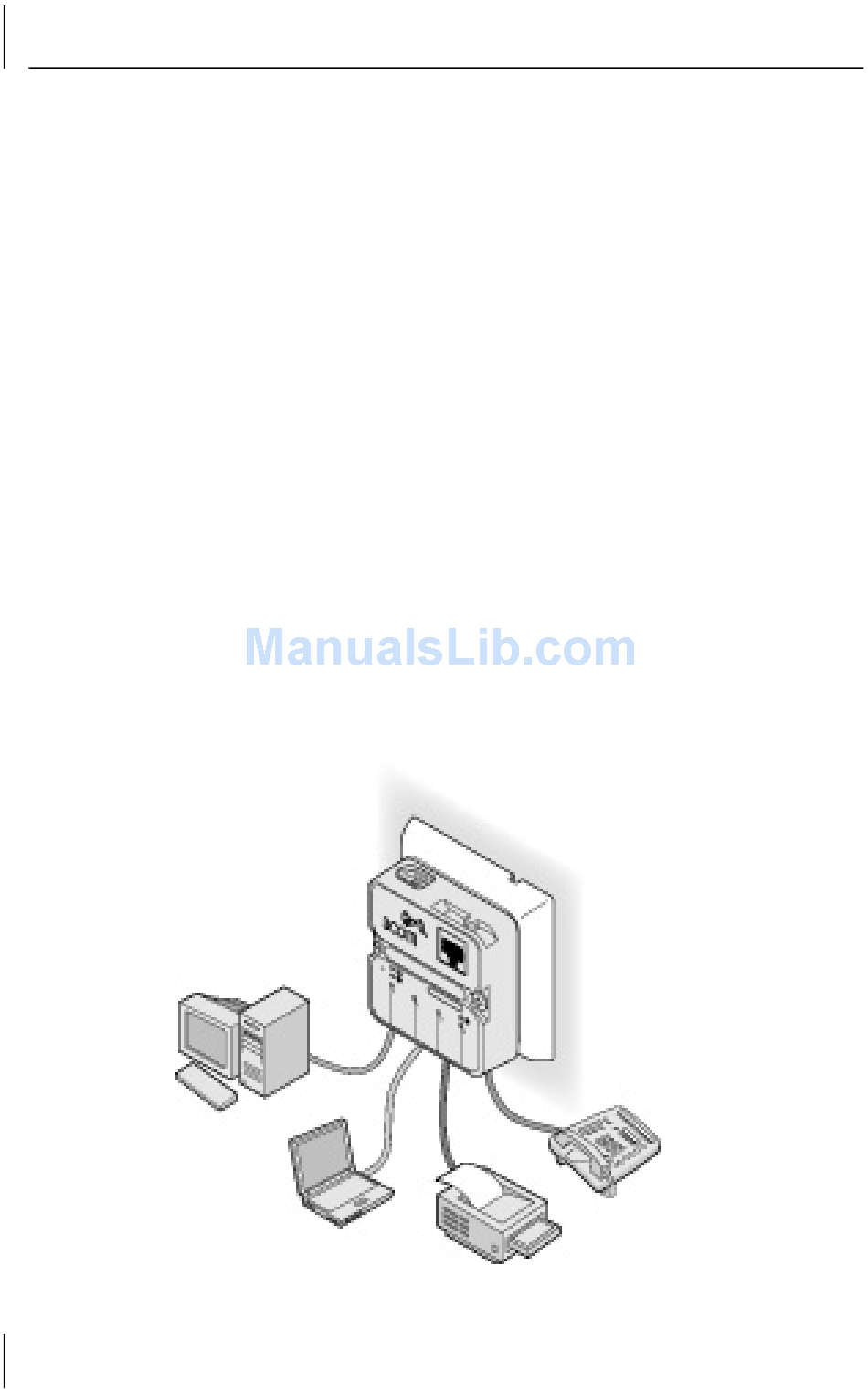

The IntelliJack has two ways to connect devices:
1 RJ-45 Personal Area Network (PAN) Ports — any of the four
switched ports on the bottom of the IntelliJack. All ports feature
10/100 Mbps auto-negotiation, which configures the NJ105
IntelliJack for 10 Mbps or 100 Mbps connections automatically.
2 Pass-through port—a single pass-through port is provided
that allows an additional device to be connected to a
separate network segment through the same IntelliJack. The
data or voice traffic that travels through the pass-through
port, passes through the IntelliJack without being switched.
