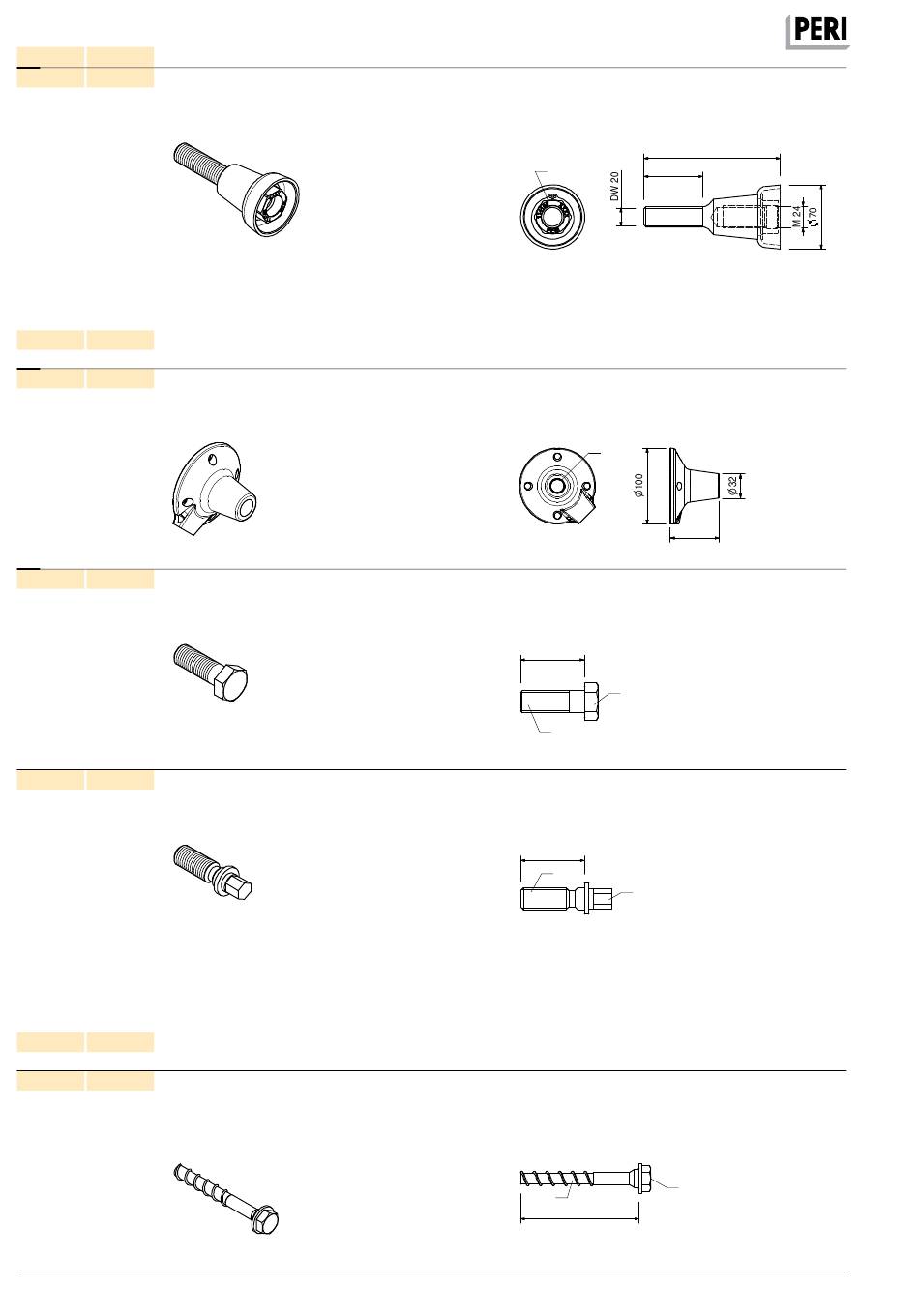

Peri LPS Screen Instructions For Assembly And Use page 162

LPS Light Climbing System
Item no. Weight kg
114158 1.030
Screw-On Cone-2 M24/DW 20, galv.
Anchor system M24.
For anchoring climbing systems.
Accessories
030860 0.792 Threaded Anchor Plate DW 20
030860 0.792
Threaded Anchor Plate DW 20
For use with Tie Rod DW 20, B 20 or Screw-On
Cone-2 M24/DW 20. For anchoring in concrete.
026430 0.334
Bolt ISO 4014 M24 x 70-10.9, glav.
High-strength bolt for anchoring climbing
systems.
029270 0.331
Advancing Bolt M24, galv.
For fixing the M24 anchor system if the plywood
formlining is drilled through.
Accessories
Anchor Positioning Plate M24, galv.
029280 0.196
124777 0.210
Anchor Bolt PERI 14/20 x 130
For temporary fixing to reinforced concrete struc-
tures.
160
Note
Separate design information on request.
65
SW 36
Note
Lost anchor part.
DW 20
65
70
SW 36
M24
70
M 24
SW 19
Note
See PERI Data Sheet!
Drilling Ø 14 mm.
SW 24
Ø14
130
150
