Instructions
SUITCASE
Trifold
AS Ramp
®
®
Portable ramp for temporary or semi-permanent use
Patented.
LIFETIME WARRANTY. Please register at www.ezaccess.com/warranty-satisfaction.
CE Technical Files kept at: Enable Access, Marshmoor Works Great North Road, North Horth Mymms Hatfield, AL9 5SD, UK.
®
© EZ-ACCESS
, a division of Homecare Products, Inc. All rights reserved.
All text and images contained in this document are proprietary and may not be shared, modified,
10258 REV 10-29-2020
distributed, reproduced, or reused without the express written permission of EZ-ACCESS.
Advertisement
Table of Contents
Related Manuals for EZ-ACCESS SUITCASE Trifold AS
Summary of Contents for EZ-ACCESS SUITCASE Trifold AS

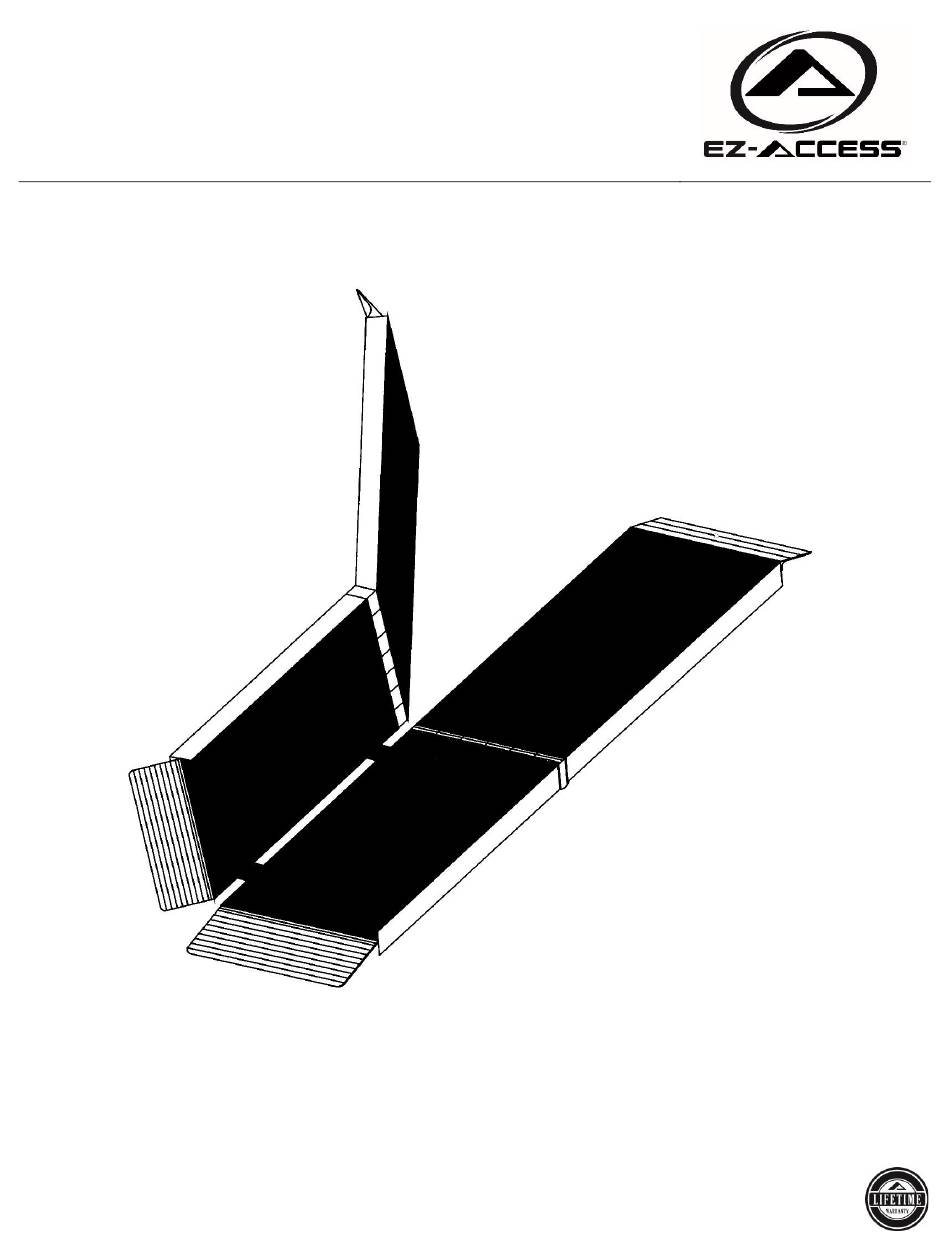

- Page 1 , a division of Homecare Products, Inc. All rights reserved. All text and images contained in this document are proprietary and may not be shared, modified, 10258 REV 10-29-2020 distributed, reproduced, or reused without the express written permission of EZ-ACCESS.
- Page 2 PACKAGE CONTENTS DESCRIPTION IMAGE* EZ-ACCESS® SUITCASE® TRIFOLD® AS RAMP CLEVIS PIN HINGE PIN INSTRUCTIONS * IMAGES NOT SHOWN TO ACTUAL SIZE Page | 2...
- Page 3 SYMBOLS AND WARNINGS The WARNING symbol indicates a potentially hazardous condition/situation. The warnings throughout this document, and on your equipment, if any, are for the protection of people and property. Failure to abide by warnings will result in a waiver of all liabilities, loss of your warranty, and could result in equipment damage and or failure, property damage, risk of serious bodily injury, and or death to operators, riders, and those nearby.
- Page 4 SET UP AND USE 1. The ramp is shipped fully assembled. To unfold for use, position the ramp approximately its full length out from a secure, unobstructed, level landing. 2. Unfold the first top half of the ramp (labeled TOP) toward the upper landing and place the ramp so that the top lip transition plate fully overlaps the landing and is securely supporting the ramp (FIG.
- Page 5 7. For stowage and transportation, or for loading unoccupied mobility equipment with a wider wheelbase, the ramp can be separated into two halves (FIG. 5) by removing (2 ea.) hinge bolts and nylon locknuts (FIG. 6). The ramp may be separated for use when loading or unloading unoccupied mobility equipment only. When the ramp is used with occupied mobility equipment, ensure that the ramp halves are rejoined as described in ‘STEP 10’.
- Page 6 OPTIONAL ACCESSORY 1. If the ramp’s top lip transition plates are not long enough to fully overlap a secure, unobstructed, level landing, a SUITCASE® Top Lip Extension (‘TLE’) is an available option that increases the standard 3” reach of the top lip transition plates to 9”, in many cases, allowing the ramp to clear an obstruction to create a smooth transition.
