1

Introduction

Router 3000 DSL Family

Router 3030

I
NTRODUCING THE
F
AMILY
The 3Com Router 3000 DSL Family products are oriented for SOHO (small
office/home office) subscribers.
The 3000 DSL Family provides ADSL ports, G.SHDSL ports and/or ISDN ports. With
one or two subscriber lines, subscribers can be connected to CO (Central Office)
for broadband Internet access. The ISDN port is often used as backup port, but it
can also serve as an uplink port when the ADSL or G.SHDSL port fails. In
downstream direction, they provide four 10/100BASE-T Ethernet ports. Data
switching between them is Layer 2 (L2) switching, which supports port isolating.
With the ports compliant with the international standards. The Router 3000 DSL
Family products can interoperate with the products of other manufacturers on all
levels.
Router 3030 (3C13630) ADSL over POTS (Annex A)
Router 3031 (3C13631) ADSL over POTS (Annex B)
Router 3032 (3C13632) ADSL over ISDN (Annex B)
Router 3033 (3C13683) G.SHDSL
Router 3034 (3C13634) G.SHDSL
Router 3035 (3C13635) ADSL over ISDN (Annex B)

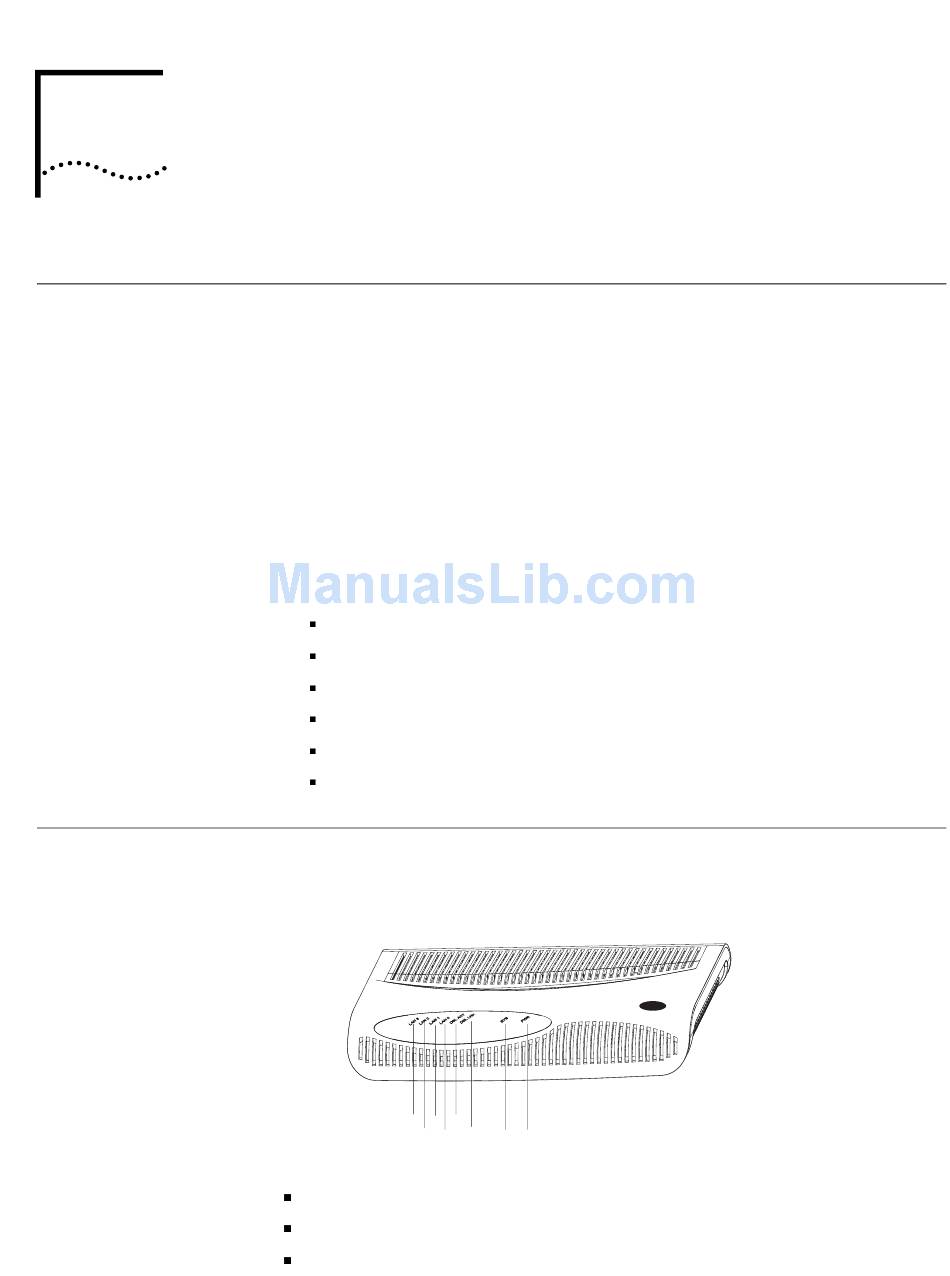

The following illustrations depict the components of the 3030 Router.
Figure 1 Router 3030 Front Panel
5
1 3
2 4
1. ETH LED (LAN3)
2. ETH LED (LAN2)
3. ETH LED (LAN1)
R
OUTER
7 8
6
3000 DSL
