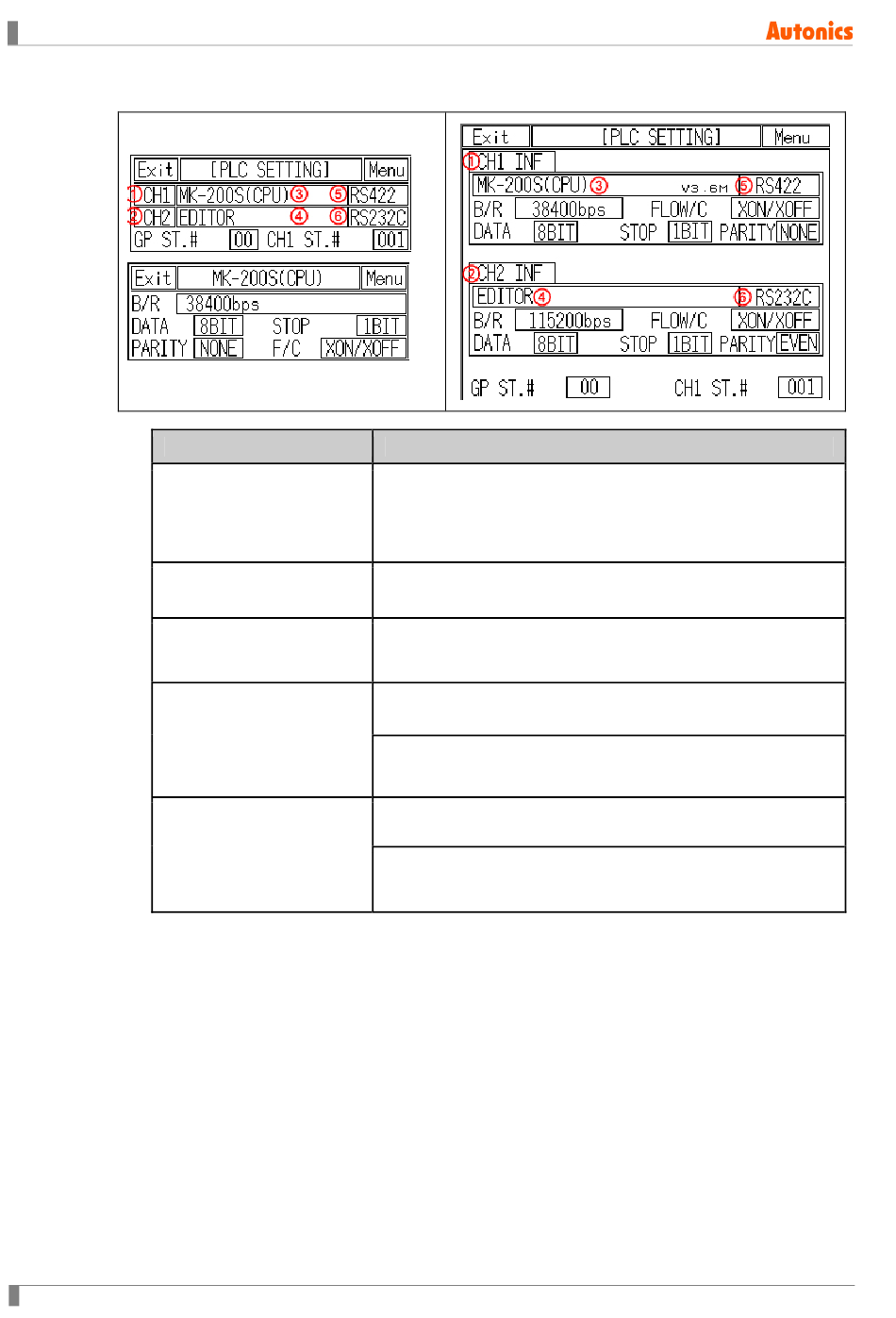

6 System Screen
(1) In case of using only CH1 configured in GP Editor
Item
①, ② Communication
configuration by channel
Displays CH1 protocol
③
Displays CH2 protocol
④
(as EDITOR for default)
Displays CH1 connect
⑤
port
(Designates automatically
as non-using port in ④)
Displays CH2 connect
⑥
port
(Designates automatically
as non-using port in ②)
46
Operation with touching
Moves communication configuration setting window for
selected connected device.
You can designate baudrate, data bit, parity, stop bit, and flow
control for each channel.
Rotates in order as downloaded protocol
PRINTER → BARCODE → UNIVERSAL → DEFAULT protocol
Rotates in order as
EDITOR → PRINTER → BARCODE→
If CH1 is SLAVE, MONITOR does not appear.
MONITOR (
GP-S0□□-S1D0: RS422 A PORT↔RS 232C B PORT
GP-S0□□-S1D1: RS232C A PORT↔RS232C B PORT
GP-S0□□-S1D0: RS422 A PORT↔RS 232C B PORT
GP-S0□□-S1D1: RS232C A PORT↔RS232C B PORT
© Copyright Reserved Autonics Co., Ltd.
→ EDITOR →
)
