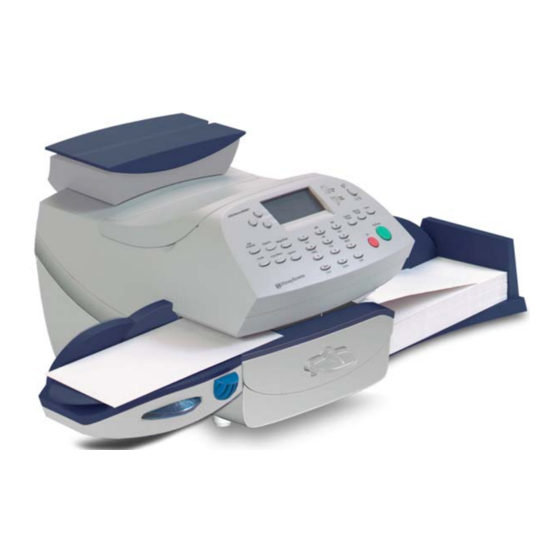

Pitney Bowes DM125 Instructions

DM125 / DM225
Barcode Scanner Kit Instructions

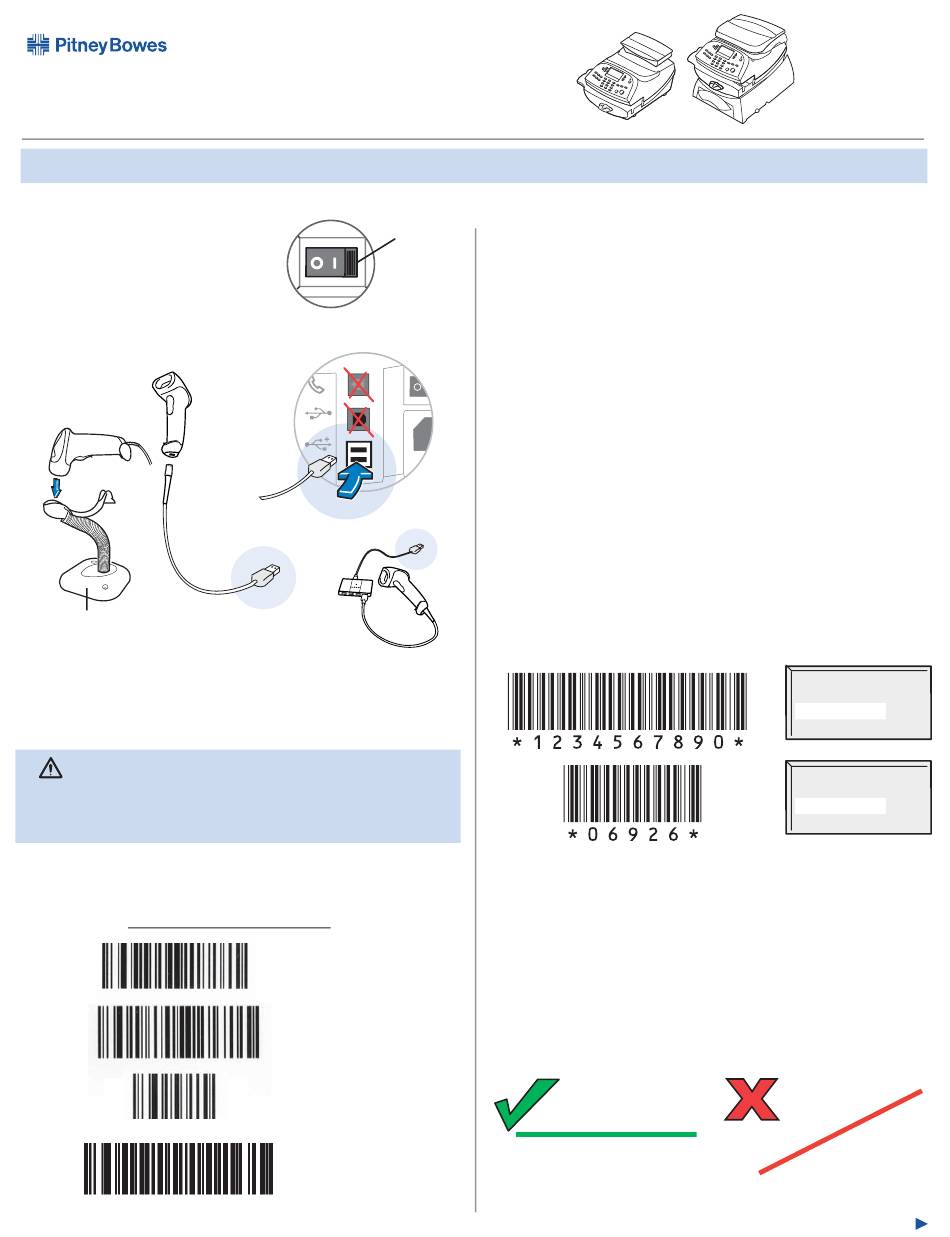

These instructions describe how to install the Barcode Scanner on the DM125 / DM225 mailing machine.
Installing the Barcode Scanner
1
Be sure the meter is turned OFF.
The ON-OFF switch is located
on the back of the meter.
2
Plug the USB connector from the barcode scanner into the
USB port on the DM125/DM225 mailing machine or into a
hub port.
Intellistand for
Hands-Free Mode
3
Turn the meter ON. After the meter is powered up
(approximately 1 minute), a low /medium/high beep will
sound which indicates that the meter detects the attached
barcode scanner. If the scanner beep did not occur,
refer to the Troubleshooting section.
Warning:
Only follow installation instructions for DM125/DM225.
Do not scan other barcodes shown in other documents
because it may disable the barcode scanner.
Configuring the Barcode Scanner
4
Using the barcode scanner, scan in the following
barcodes, in the sequence shown here:
On/ Off Switch
Rear of Meter
or
Scan Options
<DATA> <SUFFIX>
Enter
Enable Code 39
Full ASCII
Now your barcode scanner is ready to scan the
following formats for your meter: UCC/EAN 128,
Code 39, Code 39, Full ASCII, Code 128, and
Code 128 Full ASCII.
For scanning additional barcode types, please
refer to the product reference guide at
http://www.motorola.com/ls2208.
Checking the Barcode Scanner
5
Press the Options key, followed by pressing Page
Down twice and selecting
6
From the ADVANCED FEATURES
select Barcode Scanner.
7
To verify that the scanner is working properly,
select Diagnostics.
a. Scan the sample barcodes below to verify the
scanner is configured correctly and properly
displayed on the meter's
b. When finished, press
the Home screen.
Ensure the scan line crosses every bar and space
of the barcode.
*123456789*
AW22526
ADVANCED FEATURES.
screen,
BARCODE INPUT screen.
BARCODE INPUT
ASCII Character:
1234567890 1234567890
BARCODE INPUT
ASCII Character:
06926 06926
Clear until you return to
*123456789*
Continue on reverse side.
