GETTING STARTED

SOFTWARE INSTALLATION PROCEDURES

Perform the following steps before plugging any of the USB
devices into the PC:
1. Close all open applications on the PC.
2. After downloading the
ftp://ftp.analog.com/pub/microconverter/ADucM410, double
click ADuCM410Installer-V0.1.0.0.exe and follow the
instructions shown in Figure 3. The ADuCM410-Installer
Setup window displays the installation method and
component selection as shown in Figure 3. The end user
license agreement (EULA) is displayed after proceeding
through the ADuCM410Installer Setup window. Accepting
the EULA extracts the installer, and rejecting the EULA
cancels the installer.

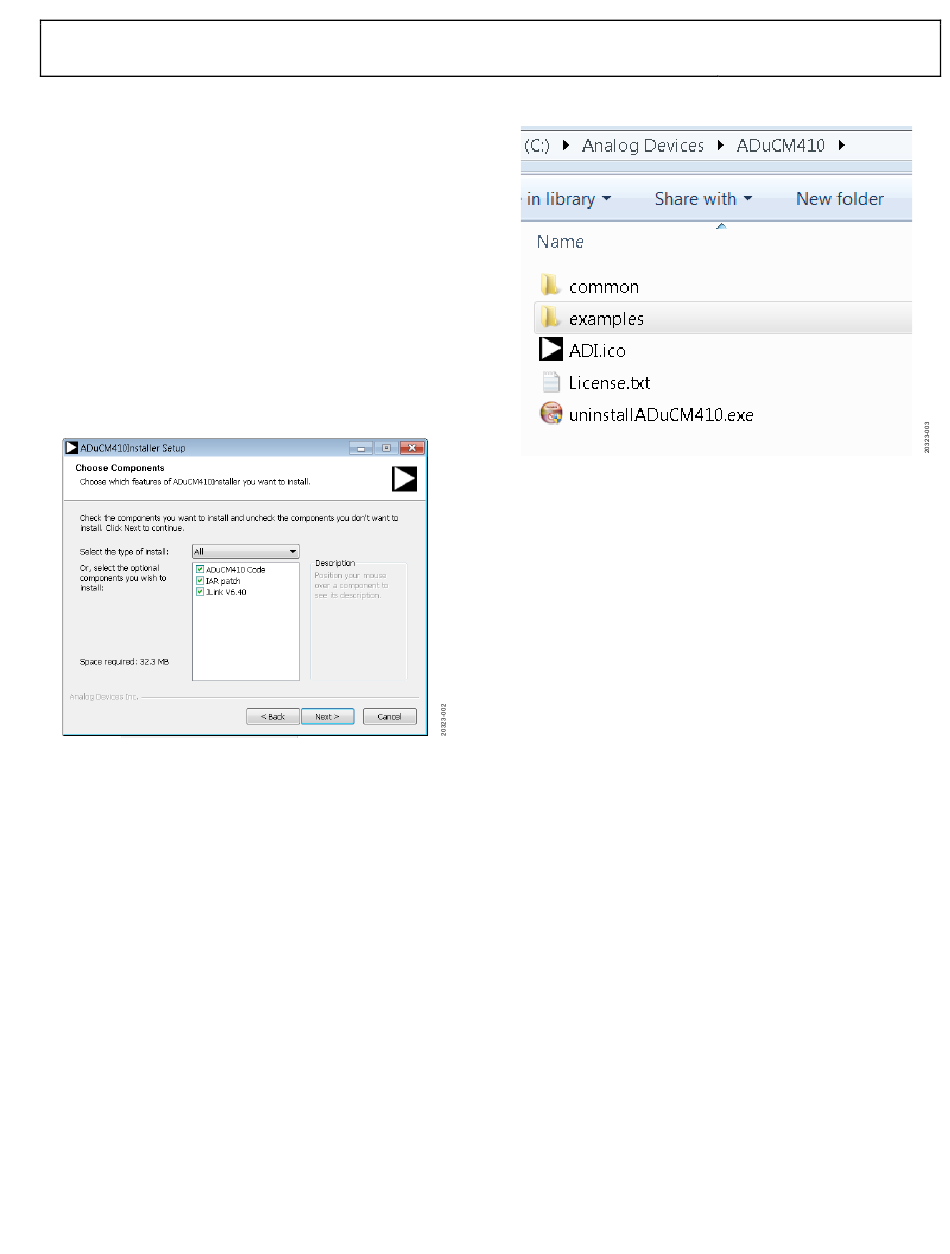

Figure 3. Installation Options
3. After installation, the \AnalogDevices\ADuCM410 folder
opens. This location contains the examples folder that stores
the example codes for the ADuCM410 (see Figure 4).
ADuCM410 installer from
User Guide
Figure 4. ADuCM410 examples Folder with Projects
KEIL μVISION5
The Keil μVision5® integrated development environment (IDE)
integrates all the tools necessary to edit, assemble, and debug
code. The fastest way to begin running the Keil IDE is to open
an existing project by using the following steps:
1. In Keil, click Project > Open Project.
2. Browse to the folder where the ADuCM410 software is
installed (C:\AnalogDevices\ADuCM410...).
3. Open the M410_GPIO.uvprojx file, located in the
ADuCM410\examples\M410_GPIO\ARM folder.
Opening the file launches an example project.
4. Set up the Cortex microcontroller software interface
standard (CMSIS) pack before proceeding through the
source. See the CMSIS Pack in Keil μVision5 section for
details on how to import the CMSIS pack.
5. Compile and download the source code to the EVAL-
ADUCM410QSPZ or EVAL-ADUCM410QSP1Z board
through the menu bar on the IDE.
6. To run the source code, press RESET on the EVAL-
ADUCM410QSPZ or EVAL-ADUCM410QSP1Z board
and then press RUN.
7. When running the code, the green LED on the board
marked DISPLAY flashes.
