EVAL-ADUCM410QSPZ/EVAL-ADUCM410QSP1Z

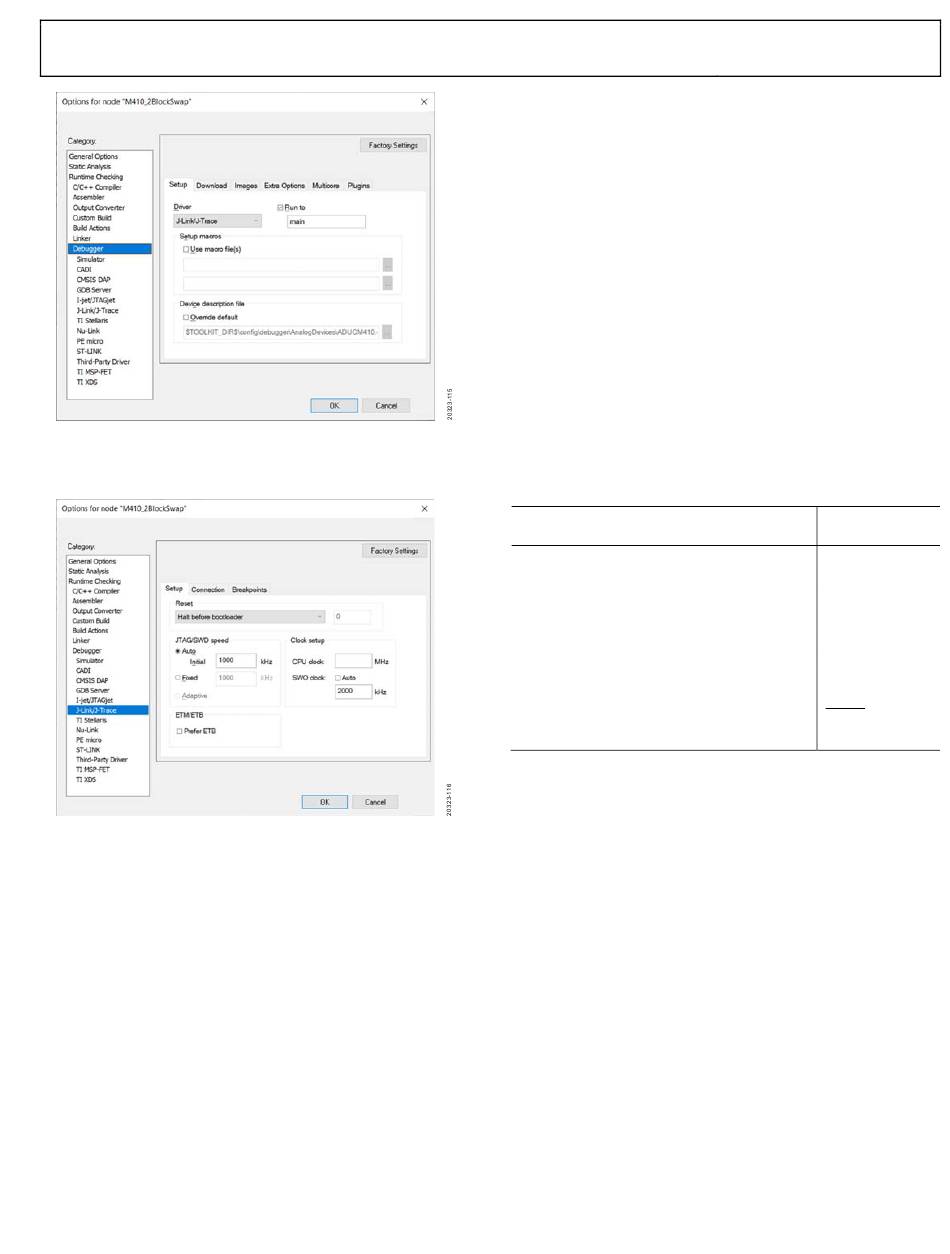

Figure 15. J-Link/J-Trace Selected in Setup Tab
5. Check that the J-Link/J-Trace settings in the Setup tab
match those as shown in Figure 16.
Figure 16. J-Link/J-Trace Settings
6. Click OK, and the user can start configuring the example
program for the ADuCM410 in the IAR IDE.
Rev. 0 | Page 11 of 20
User Guide
mIDAS-LINK CONNECTOR—CONNECTING THE
HARDWARE
Use the following steps to connect the mIDAS-Link to the
EVAL-ADUCM410QSPZ or EVAL-ADUCM410QSP1Z:
1. Connect the provided USB cable between the PC and the
mIDAS-Link connector.
2. The yellow LED lights up on the mIDAS-Link to indicate
the connection to the EVAL-ADUCM410QSPZ or EVAL-
ADUCM410QSP1Z is initializing.
3. Install the driver for the ADuCM410. Driver installation
details are included in a .exe file in the ADuCM410
installer.
After connecting the mIDAS-link hardware to the EVAL-
ADUCM410QSPZ or EVAL-ADUCM410QSP1Z, the mIDAS-
Link can be used in Keil μVision5 and IAR Embedded
Workbench development.
Table 4 shows the mIDAS-Link pin configuration.
Table 4. mIDAS-Link Pin Labels
EVAL-ADUCM410QSPZ/EVAL-
ADUCM410QSP1Z Header Pin No.
1, 2
3, 11, 19
4, 6, 8,10, 12, 14, 16, 18
5
7
9
13
15
17

EVALUATING THE MDIO DOWNLOAD MODE

The MDIO downloader can be extracted from the installer on
the ftp://ftp.analog.com/pub/microconverter/ADucM410
website. Use the MDIO downloader with the MDIOWSD
software to download the hexadecimal files. Use the SUB-20
multiple interface USB adapter (not included) to connect the
EVAL-ADUCM410QSPZ or EVAL-ADUCM410QSP1Z to the
PC via the MDIOWSD software tool. The Windows 10
Operating System section outlines the procedure to download
code and the example programs from the installer to the
ADuCM410 device using the MDIO interface.
Windows 10 Operating System
After connecting the SUB-20 multiple interface USB adapter to
the PC, the USB adapter automatically installs the needed SUB-20
software. To ensure the software properly installs and connects
to the EVAL-ADUCM410QSPZ or EVAL-ADUCM410QSP1Z,
follow these steps:
1. Double click the SUB-20 firmware updater.exe file
installed on the PC after the SUB-20 adapter is connected
to open the graphical user interface (GUI) shown in Figure 17.
UG-1541
mIDAS-Link Pin
Labels
DVDD
NC
DGND
P1.0/SIN0
SWDIO
SWCLK
P2.2/SWO
option via JP4
RESET
P1.1/SOUT
