Keil SRAM Mode
Several .sct and .s files from the example program allow users to
select the desired SRAM: M410_SramModeX.sct and
SetSramModeX.s. The X in the file name specifies mode
number (0 to 3) for the SRAM.
1. After the example program is opened from the Keil IDE, the
files located in the same folder are shown. Ensure that the
.sct and .s files from the example folder (see Figure 34) are
used with the corresponding SRAM mode being tested.

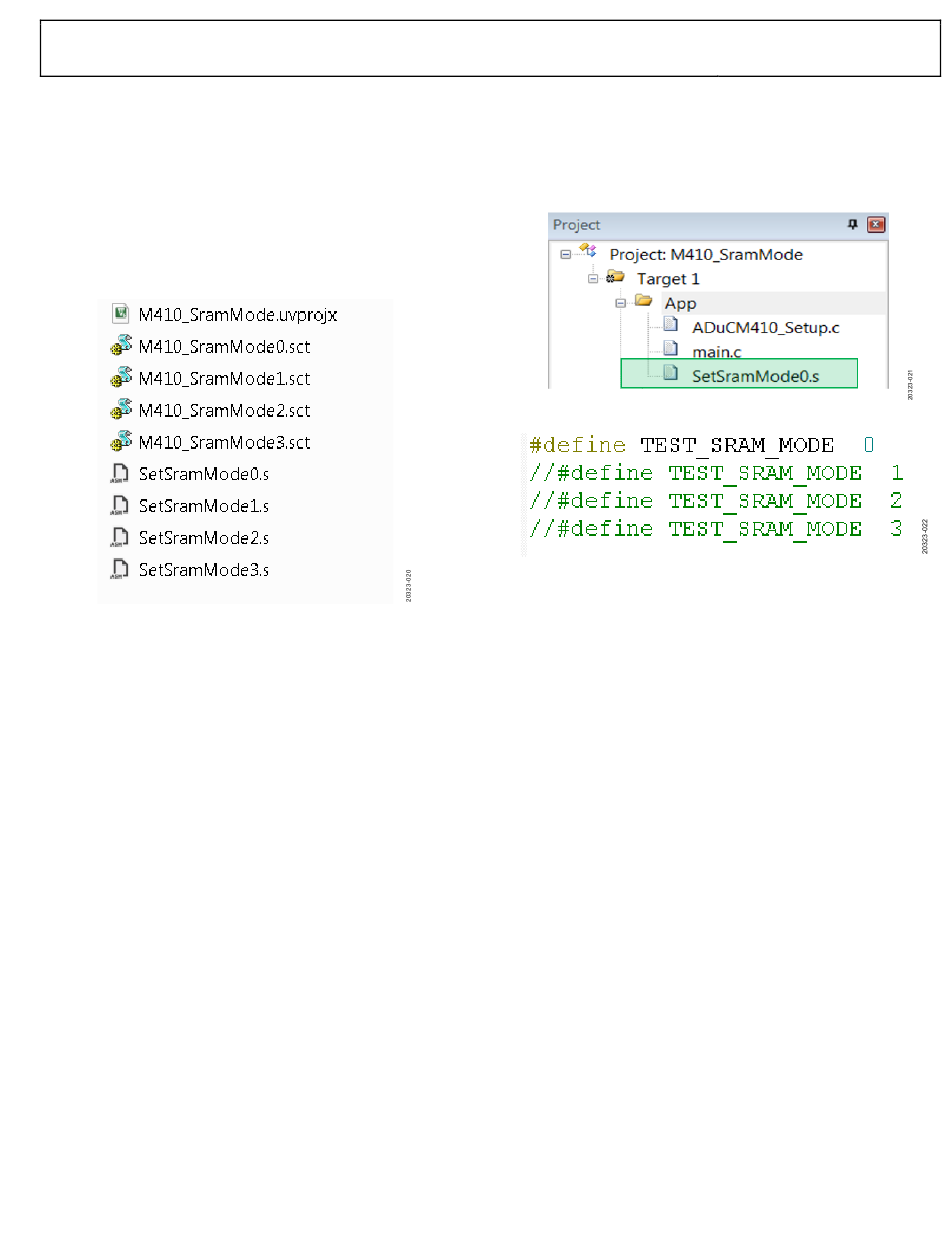

Figure 34. SRAM Mode .sct and .s Files
User Guide
7. By default, the M410_SramMode macro uses SRAM
Mode 0. The SetSramMode0.s assembly file is added to
the subdirectory shown in Figure 35. Specify which SRAM
mode to test in the main.c file. By default, SRAM Mode 0 is
tested (see Figure 36).
Figure 36. Set Up M410_SramMode0.sct
8. After following Step 1 and Step 2, proceed to set up the .sct
file located in Flash > Configure Flash Tools > Linker. Refer
to Figure 37 to check the settings circled in green are
correct and that the correct scatter file is chosen (based on
the SRAM mode configuration).
9. Running the settings in Figure 38 shows that the ISRAM is
placed in debug mode via the Disassembly window.
