3. INITIAL OPERATION

Before the initial operation of the awning, remove all objects (e.g. ladders, tools etc.) from the full travel range (in/out) of
the awning and from underneath the awning.
During the trial operation, ensure that nobody is in this area – there is a risk of injury in case of a malfunction.

3.1 WITH HAND CRANK

Insert hook of the hand crank in the eye of the driving gear and fully extend awning.
The end position of the awning (fully out) is factory set, but adjustments may be possible (please contact the system manufacturer).
In fully extended condition, the awning is optimally stretched.
when winding up the awning for the first time, check that the covering is wound up properly and that the articulated arms fold
correctly (parallel).
When the end positions (in and out) are reached, do not force hand crank further. Otherwise the gearing may be
damaged.
3.2 WITH DRIVING GEAR
For trial operation, always use the test cable (no automatic control units etc.). In addition, the operator must be able to
see the awning.
If the test cable has not yet been connected, connect to the drive cable. The end position switches of the motors are
factory set. If corrections are necessary on location, these can be carried out in accordance with the "Driving Gear
Instruction Manual".
Fully extend awning and check switch-off point. In fully extended condition, the awning is optimally stretched. when
winding up the awning for the first time, check that the covering is wound up properly and that the articulated arms fold
correctly (parallel).
Electrical installation work and connections to the mains must be carried out exclusively by a licensed electrical company.
In the case of awnings operated with a switch, the switch must be positioned in sight of the drop profiles, but at least
0.4 m away from moving parts, and at a height corresponding to national regulations concerning handicapped persons
(preferably less than 1.30 m).

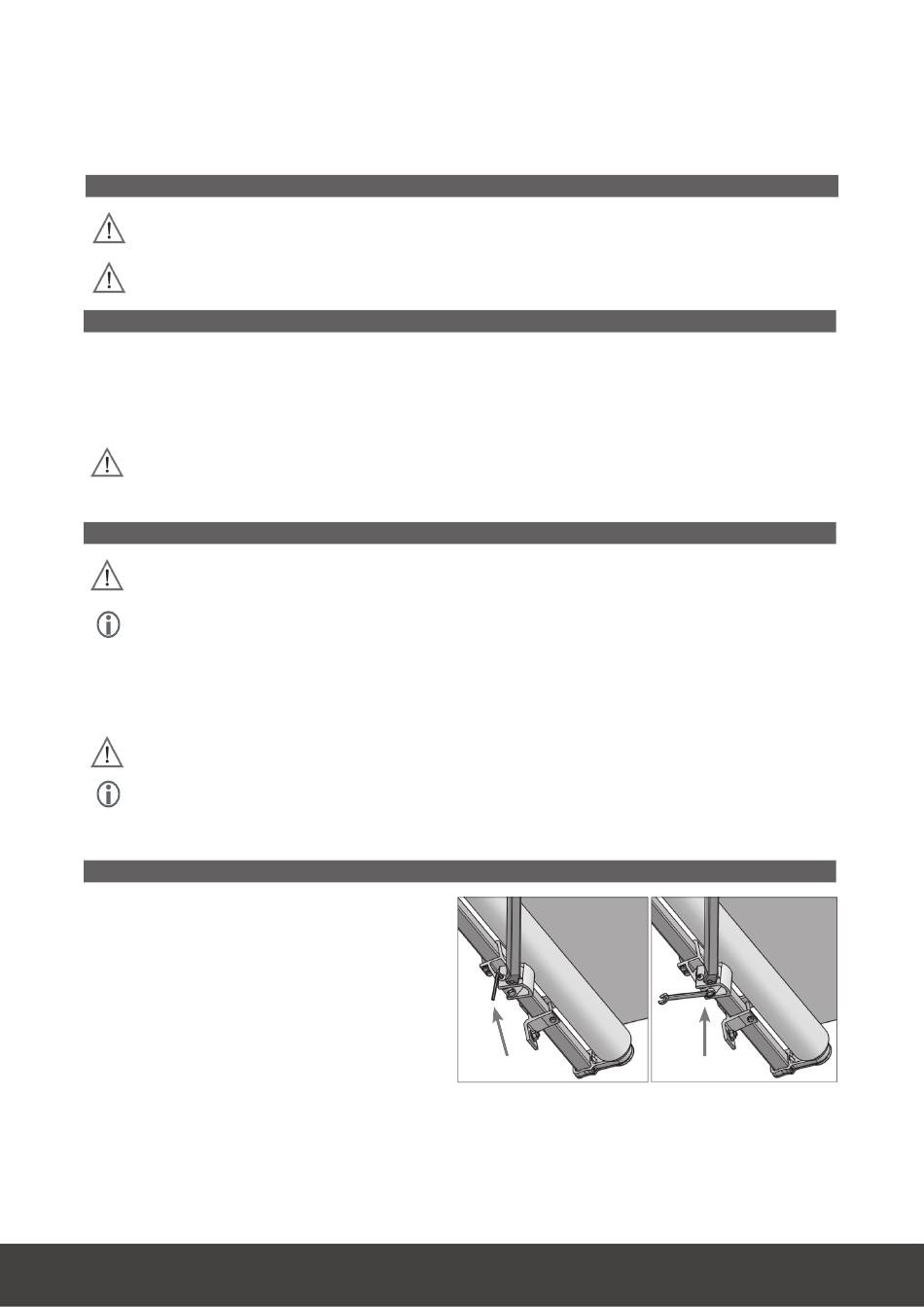

3.3 SETTING THE INCLINATION OF THE AWNING

aDjuStMent of the arM inclination:
• Extend awning approximately half way.
• Loosen both lateral bolts of the brackets with a SW 6
Allen key.
• Relieve the tilting part by lifting the arm and set the
inclination by turning the bolt on the underside
with a Sw 17 ring spanner.
turning counter-clockwiSe →awning iS lowereD
turning clockwiSe
In the event of a significant change of the inclination setting (more than 10°), the arms must be adjusted alternately.
• After having performed the arm adjustment, firmly retighten lateral screws.
www.helioscreen.com.au | Phone 1300 766 319
→ awning iS raiSeD
Loosen screws
Helioscreen Neo
Adjusting the inclination
• INSTALLATION GUIDE | 8
