2.6 fitting the awning
Ensure that sufficient personnel is available to lift the awning.
The awning weighs up to 75kg; the weights are
defined on the packaging.

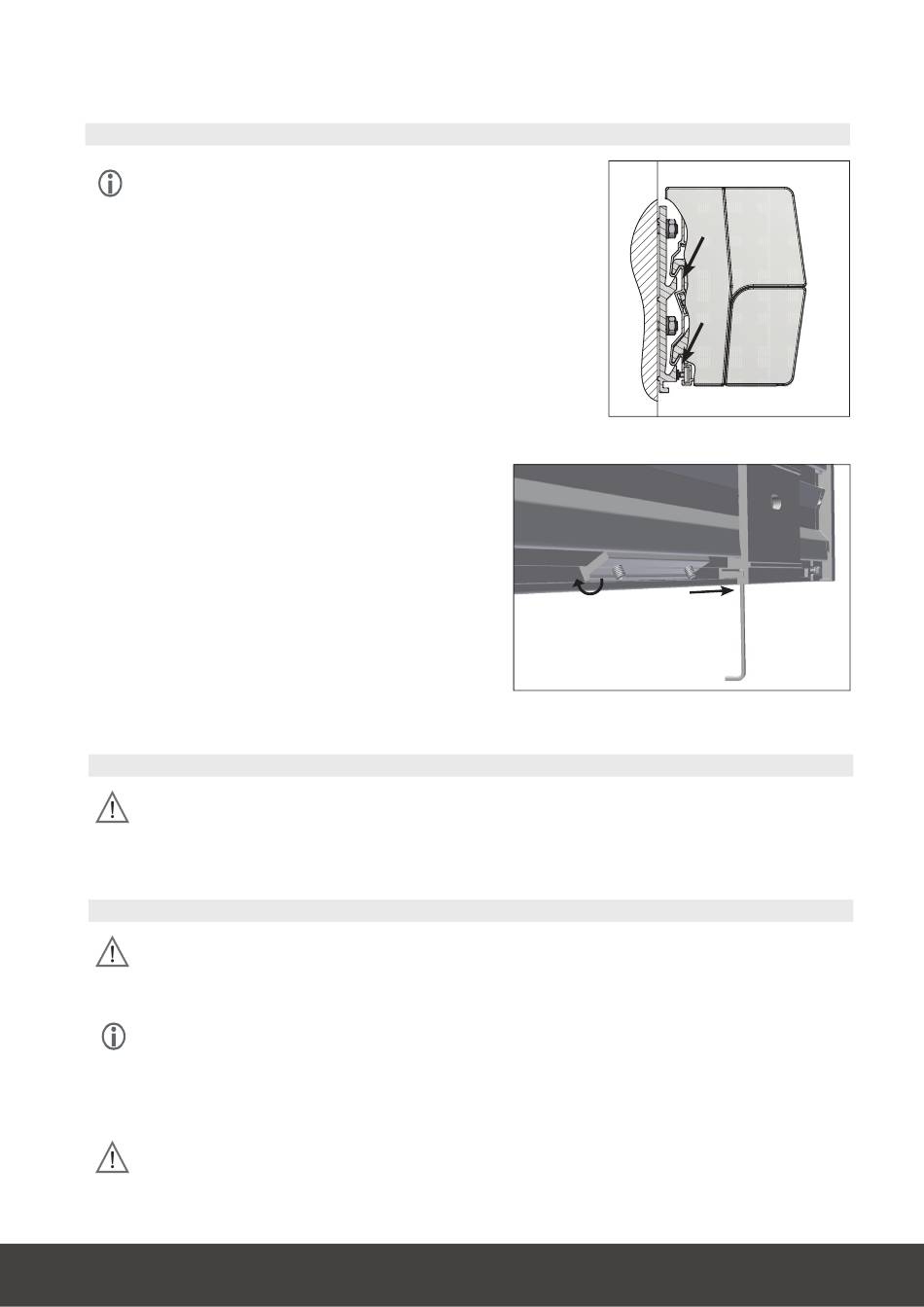

Hook awning with the base profile into the bracket profile. Ensure that the position
of the brackets coincides with the marked positions of the central supports.
If the assy is hooked in correctly and if the length of the installation bolts is right,
the awning will stay in place, but it must still be secured.
Insert the bracket fasteners in the appropriate channel of the base
profile, move to the right position and tighten the threaded pins with
SW3 Allen key.
This secures the awning and prevents it from falling down.

3. initial oPeration

Before the initial operation of the awning, remove all objects (e.g. ladders, tools etc.) from the full travel range (in/out)
of the awning and from underneath the awning.
During the trial operation, ensure that nobody is in this area – there is a risk of injury in case of a malfunction.

3.1 with motor driVe

For trial operation, always use the test cable (no automatic control units etc.). In addition, the operator must be able to
see the awning.
If the test cable has not yet been connected, connect to the cable of the driving gear.
The end position switches of the motors are factory set. However, readjustments on location according to the "motor
adjustment manual" are possible.
Fully extend awning and check switch-off point. In fully extended condition, the awning is optimally stretched. When winding up
the awning for the first time, check that the covering is wound up properly and that the articulated arms fold correctly (parallel).
Electrical installation work and connections to the mains must be carried out exclusively by a licensed electrical com-
pany. Electrical installation work and connections to the mains must be carried out exclusively by a licensed electrical
company.
