2.5 MOUNTING TECHNIQUE

2.6 FASTENING THE AWNING

Ensure that sufficient personnel is available to lift the awning.
The awning weighs up to 80kg; the weights are defined on the
packaging.
Slide the awning and support tube into the brackets from the front. Lightly
grease the threads of the fixing screws and insert them into the drillholes
from below, then secure them with square nuts.
Straighten the awning laterally. Tighten all fixing screws.
www.helioscreen.com.au | Phone 1300 766 319

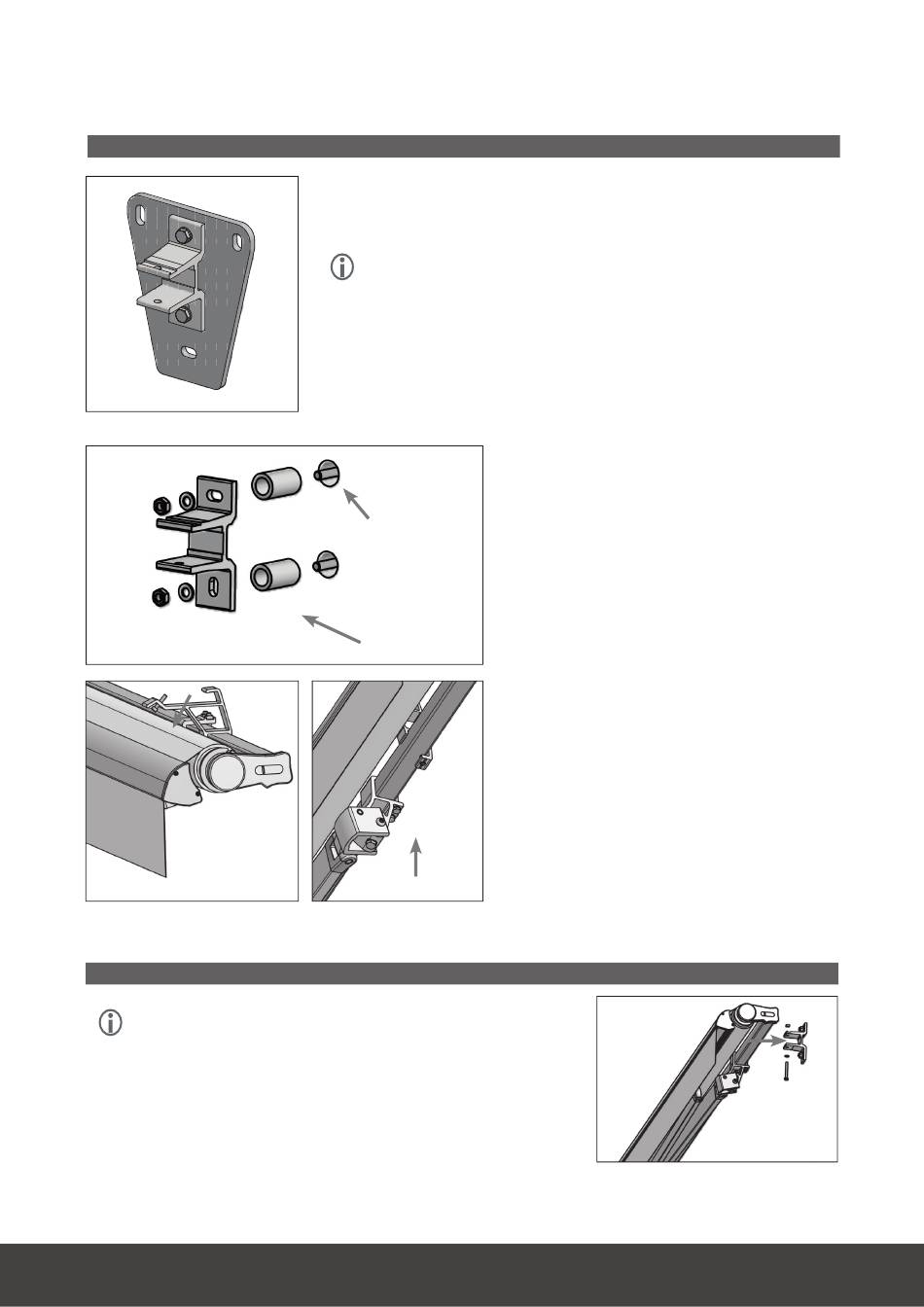

Reduction of forces can be achieved by increasing the number of brackets in
the vicinity of the arms or by using bracket plates (see adjoining figure).
Insulating layer removed
Spacer tube
Mounting on therMally inSulateD façaDeS:
Insulating plaster and full multi-layer thermal insulation
are not pressure stable. Therefore, it is necessary to use
distancers for the entire surface of the awning brackets or
at least for the area around the screws. The picture on the
right illustrates one possible variant:
bracket Mounting:
First attach and align both outer brackets. Using a string,
accurately align all other brackets precisely to the outer
brackets. Even out irregularities of the base by using
suitable spacers. Then tighten all screws and check that
brackets are firmly attached.
for a rain pelMet:
Prior to mounting the system, push the support
onto the installation tube and secure it with the threaded
pin on the underside.
(For the final installation of the rain pelmet,
see Section 3.4. of the Installation Instructions).
Helioscreen Neo • INSTALLATION GUIDE | 7
