poSition of the bracketS:

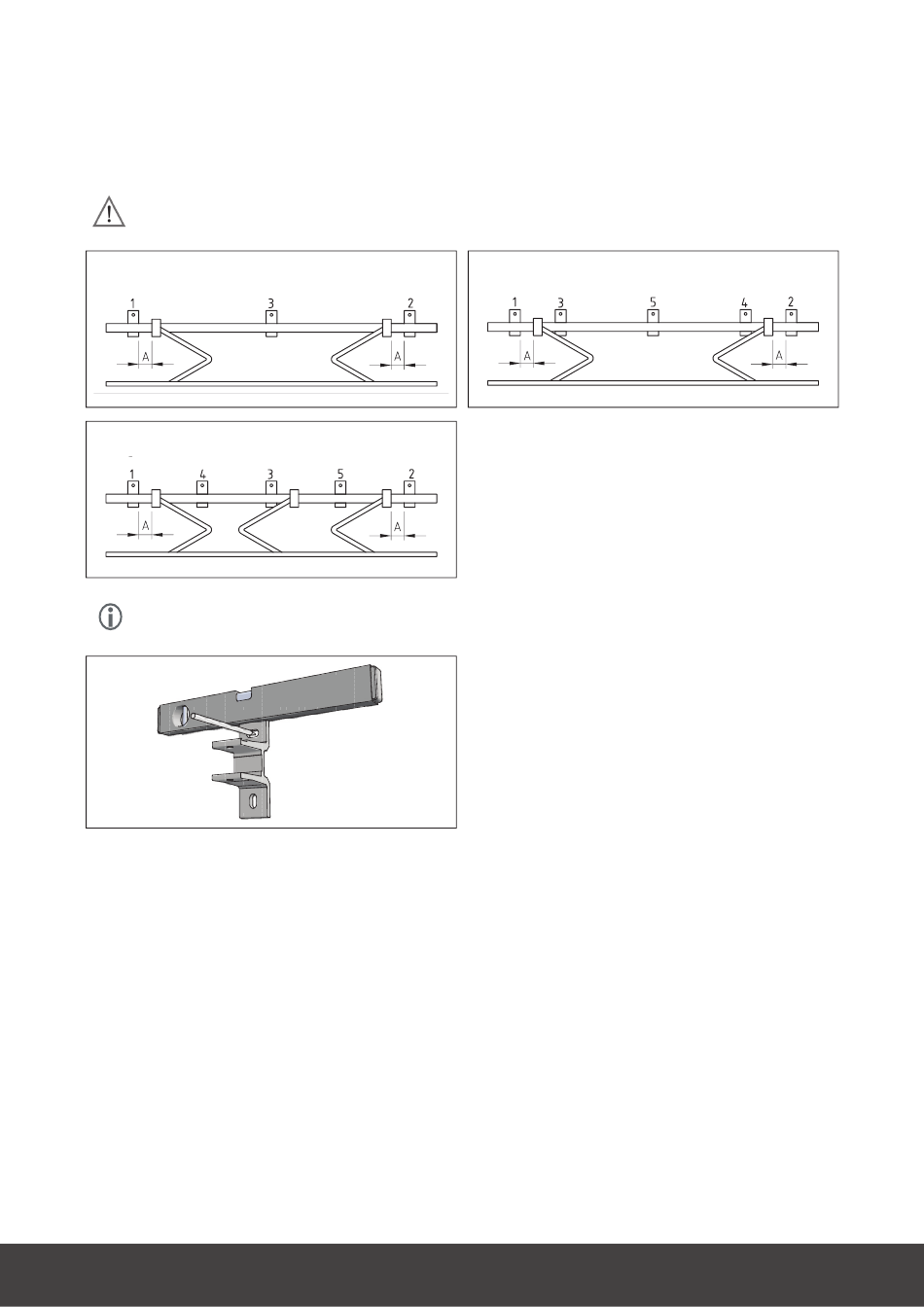

The brackets should be placed as close as possible to the connection points on the arms. The following sketches illustrate
the best possible distribution of brackets. Dimension >A< should be a maximum of 300 mm.
System with 2 arms and 2 resp. 3 brackets
System with 3 arms and 3 resp. 5 brackets
In coupled systems, note that after insertion into the brackets, the systems
have to be pushed about 7 cm towards one another.
www.helioscreen.com.au | Phone 1300 766 319
System with 2 arms and 4 resp. 5 brackets
DrillingS for bracketS:
Transfer the drilling outlines of the brackets to the deter-
mined bracket positions.
Select the appropriate drill bit for the respective
base material and mounting method.
