Foglio Istruzioni
Instruction Leaflet CSA08914-C

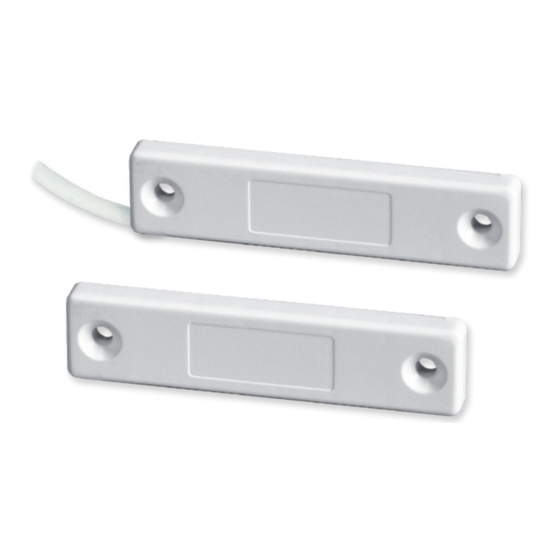

Contatto magnetico a scomparsa
Concealed magnetic contact
401-TF: colore bianco, cavo 1,2m / white, 1.2m cable
401-TF-M: colore marrone, cavo 1,2m / brown, 1.2m cable
401-TF-3: colore bianco, cavo 3m / white, 3m cable
401-TF-M-3: colore marrone, cavo 3m / brown, 3m cable
EN50131-2-6
Specifiche Generali/General Specifications
Materiale contenitore/Housing material
Funzionamento/Operation
Temp. di funzionamento/Operating temperature
Grado di protezione/IP degree
V max
I max
W max
Identificazione/Identification
I contatti magnetici sono componenti passivi, le grandezze elettriche indicate sono le massime applicabili
Magnetic contacts are passive components, max applicable voltage and current are displayed in table
Installazione conforme alla norma/Installation as per standard
La certificazione decade per installazioni diverse da quelle rappresentate nelle figure.
Certification is void if the devices are installed differently.
GR 2
CL III
Termoplastico/Thermoplastic
NC con i due componenti vicini/NC when the two components are near
-25°C ÷ +50°C
Certificato IPx2 (dichiarato IP65 da Cooper CSA)/Certified IPx2 (declared IP65 by Cooper CSA)
42,4 Vpeak - 60 Vdc
1 A
10 W
Numero seriale/Lotto su ogni componente/Serial number/Batch on each component
June 2019
OK
OK
KO
401-TF
401-TF-3
401-TF-M
401-TF-M-3
OK
OK
KO
