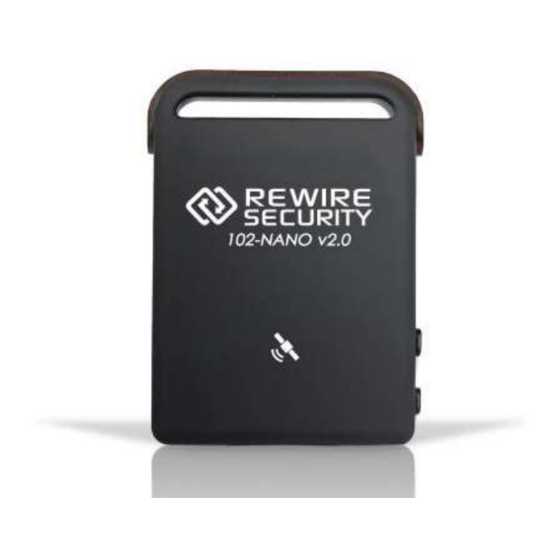

REWIRE SECURITY 102-NANO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
102-NANO USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 102-NANO and is the answer not in the manual?

Questions and answers

Related Manuals for REWIRE SECURITY 102-NANO

Summary of Contents for REWIRE SECURITY 102-NANO

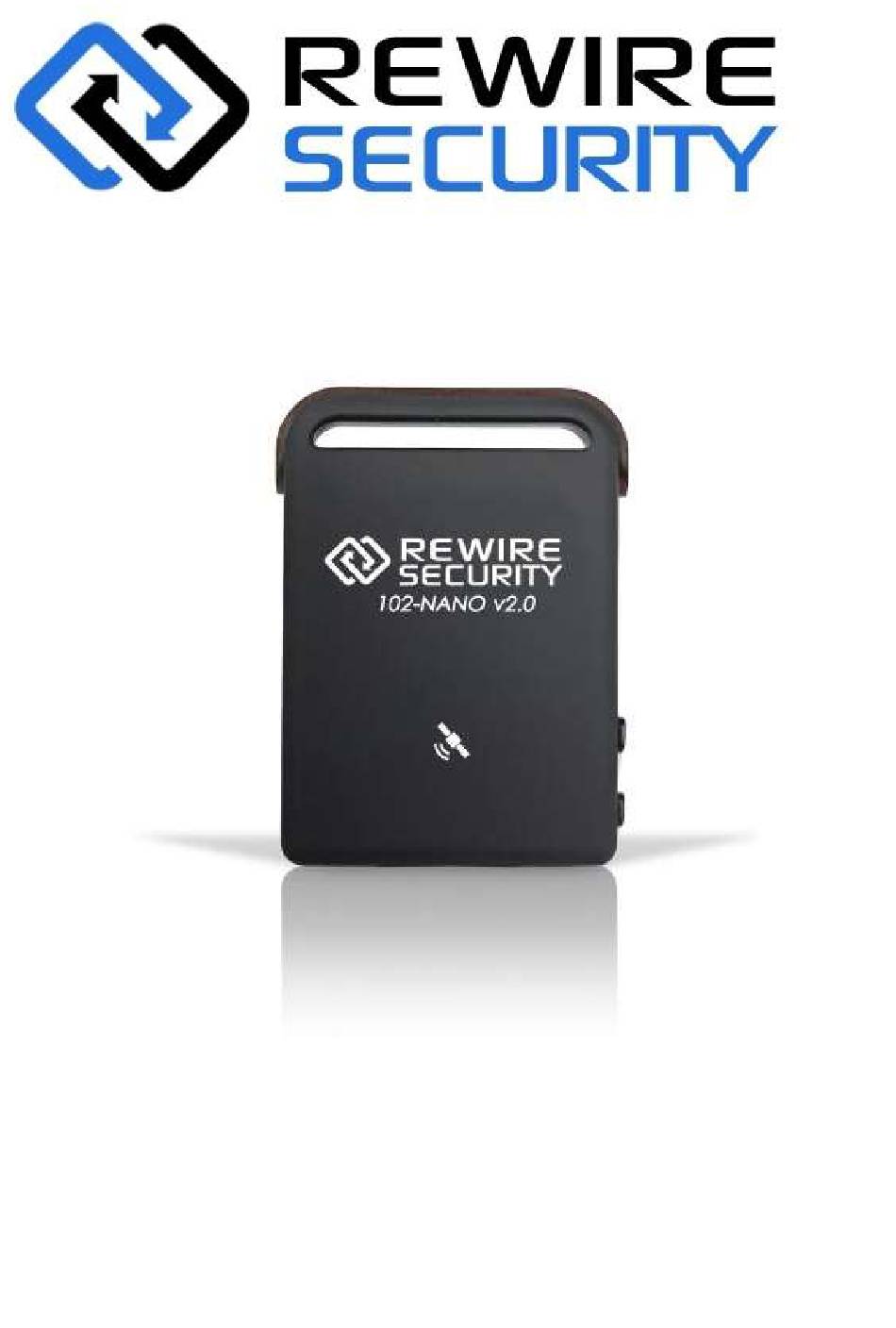

  • Page 1 102-NANO USER MANUAL...

  • Page 2: Table Of Contents

    Contents 1. Summary ..............................3 2. Applications ..............................3 3. Hardware Description ..........................4 3.1 Side ................................ 4 3.2 Bottom ..............................4 3.3 Front ..............................4 3.4 Interior ..............................5 4. Specifications ............................... 5 5. Usage ................................6 5.1 SIM Card Installation ..........................6 5.2 Battery and Charger ..........................

  • Page 3: Summary

    SMS or Internet reports to the user by using GSM and GPRS network. 102-Nano can be used and tracked by either SMS or via our GPS tracking software – GPSLive. GPSLive allows its users to track and locate their personal, vehicle and assets in real-time.

  • Page 4: Hardware Description

    Even with its small compact design, the 102-Nano does not lack on function or features, with the ability to track by turn or distance with updates from as little as every 10 seconds.

  • Page 5: Interior

    3.4 Interior 4. Specifications Specs. Content 64mm x 46mm x 17mm ( 1.8” x 2.5” x 0.65” ) Dimensions Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GPS chip SIRF3 chip GPS sensitivity -159dBm GPS accuracy Cold status 45s Time To First Fix Warm status 35s Hot status 1s (Optional) 12—24V input...

  • Page 6: Usage

    PIN code. If you are using a free contract SIM card and would like to use the 102-NANO via GPSLive GPS tracking platform, you may need to contact your SIM card network to check if your internet data access is active.

  • Page 7: Battery And Charger

    Li-ion battery technology, and a fully charged battery can power the 102-NANO from 16 hours up to 10 days depending on usage and standby mode. After the first use, the battery should be charged for 2-4 hours every time.

  • Page 8: Changing Your Password

    +447776665544 Additional authorized numbers have to be set-up by the first authorized number. Once a user (phone number) is authorized, 102-NANO will not reply to phone calls from unauthorized numbers with a location report. However, it will still respond to SMS commands as long as the password is correct. Alarm notifications can only be sent to the authorized numbers as well.

  • Page 9: Easy Sms Text Message Locating

    SMS text messages. If GPRS tracking mode is active, updates will be uploaded to the online tracking server. Command: fix030s***n+password 102-NANO will not respond to this message but it will start updating its location continuously at 30 seconds intervals. e.g.

  • Page 10: Exact Street Address

    To activate monitor mode: Command: monitor+password Response: monitor ok! e.g. monitor123456 Now 102-NANO will answer your calls and you will be able to listen through the built-in high sensitivity microphone.

  • Page 11: Data Logging

    5.11 Data Logging Auto logging：If the 102-NANO loses GSM or GPRS signal, it can store the tracking position and alerts automatically on the flash drive upon the pre-set conditions. When GSM reception is re-established, all the event alerts will be auto-sent to the authorized numbers or online tracking server.

  • Page 12: Shock Sensor Alarm

    Shock sensor alarm is deactivated by default. To activate: Command: shock+password Response: Shock is activated! e.g. shock123456 Now when 102-NANO detects vibration, it will send SMS “Sensor alarm+location” to the authorized numbers. To cancel shock sensor alarm: Command: noshock+password e.g. noshock123456 Shock sensor sensitivity configuration: The shock sensor module has three different sensitivity settings;...

  • Page 13: Geo-Fence

    3 5.13 Geo-fence This feature allows you to create safe zones. When the 102-NANO enters or leaves this zone, the device will send geo-fence alarm warnings to the authorized numbers. To be able to configure geo-fence 102-NANO has to stay stationary for 5 minutes.

  • Page 14: Over Speed Alarm

    The fault alert occurs if GPS position is miscalculated due to bad GPS reception. Inaccurate GPS reading will cause the 102-NANO to think that it is in a different location, possibly farther from its current location, thus the processor will accept this as a movement and trigger the movement alarm.

  • Page 15: Sos Alarm

    5.17 Low Battery Alarm Low battery alert helps users to know when the battery of 102-NANO is low. It sends 3 notifications to authorized numbers; at %10, at %5 and just before it's completely flat. Low battery alert is activated by default.

  • Page 16: Gps Blind Spot Alarm

    When activated, after having no activity (call or SMS commands) for 5 minutes, 102-NANO will change to standard standby mode; GPS module and led light will be OFF, GSM module (phone line) will still be ON. It will wake up and turn the GPS module ON only if you call it to request position or send an SMS command.
  • Page 17 Standby with shock/movement sensor: With this mode 102-NANO will change to shock sensor standby mode after being stationary for 5 minutes without any vibration or movement, GPS module and the LED light will shut off, GSM module will still be ON. As the GSM module will be ON, you will still be able to communicate with 102-NANO.
  • Page 18 (SMS or internet) and switch OFF. If you are using 102-NANO in live internet tracking mode and would like to use schedule work mode, do not forget to activate less GPRS mode as otherwise, the auto-update interval setting will override the standby.

  • Page 19: Forwarding Incoming Sms Messages

    Switching standby modes OFF: Select the sleep mode that suits you best before starting to use your 102-NANO. Real-Time GPS Tracking consumes a significant amount of battery power and standby duration of your 102-NANO will be reduced to 5-10 hours if there aren’t any standby modes active.

  • Page 20: Status Enquiry

    5.23 IMEI Number Request: To request the IMEI number of your 102-NANO use the command below; Command: imei+password Response: 8647150022365548 (example) e.g. imei123456 5.24 Time Setting This setting can be used to change the time zone of your 102-NANO. Command: time+space+zone+password+space+local time zone...

  • Page 21: Tcp/Udp Switch

    Command: gprs+password,1,1 UDP without keepalive data 5.26 Reset This command will restart/reboot GSM & GPS modules of 102-NANO. Please note that this is only a hardware reboot, it will not restore 102-NANO's settings to factory defaults. Command: reset+password Response: reset ok e.g.

  • Page 22: Gprs (Internet) Tracking

    5.28 GPRS (Internet) Tracking GPRS Tracking mode allows the 102-NANO to upload its location data to a web server at pre-set intervals. All Rewire Security products are designed to be used with online tracking server www.gpslive.co.uk.
  • Page 23 Command: up+password+space+user+space+password e.g. apn123456 internet contract password 5.29 Server IP Address and Port Setup This setting will configure 102-NANO to upload its location to the selected online tracking server. Command: adminip+password+space+ip address+space+port number Response: adminip OK e.g. dns123456 listener.gpslive.co.uk 10200 If you are going to use Rewire Security's UK based server www.gpslive.co.uk, use...
  • Page 24 Any changes will be integrated into the latest release. The manufacturer assumes no responsibility for any errors or omissions in this document. By purchasing the 102-Nano you agree our terms and conditions, view Terms and Conditions here : https://www.rewiresecurity.co.uk/terms...
