REWIRE SECURITY

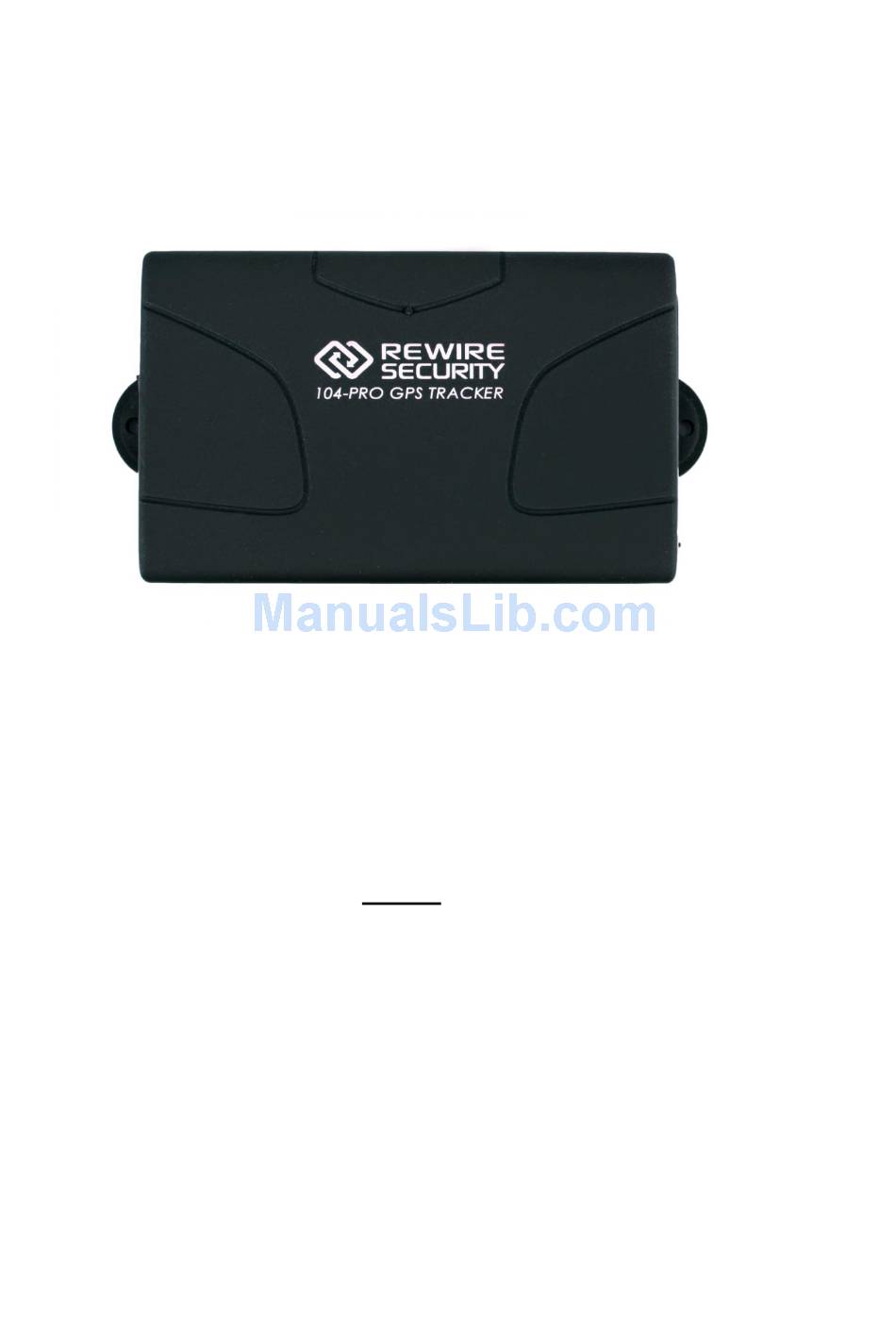

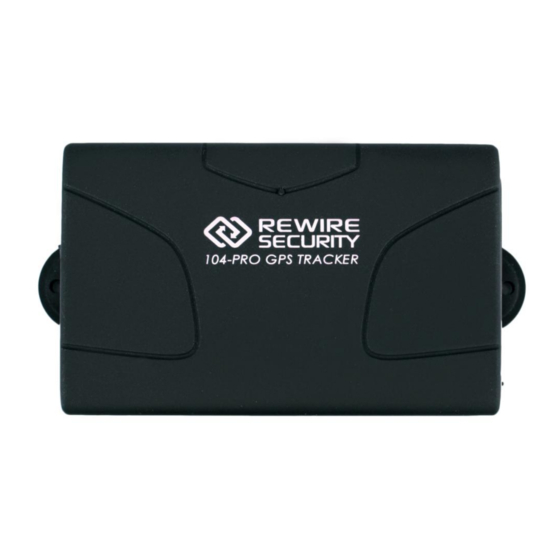

104 PRO GPS TRACKER
DETAILED USER GUIDE
VER. 3
Preface
Thank you for purchasing 104-PRO Please read this manual carefully before
using this product. Please note that product specifications and information in
this user guide are subject to changes without prior notice. Any changes will be
integrated in the latest release. The manufacturer assumes no responsibility for
any errors or omissions in this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 104 PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REWIRE SECURITY 104 PRO

Summary of Contents for REWIRE SECURITY 104 PRO

  • Page 1 REWIRE SECURITY 104 PRO GPS TRACKER DETAILED USER GUIDE VER. 3 Preface Thank you for purchasing 104-PRO Please read this manual carefully before using this product. Please note that product specifications and information in this user guide are subject to changes without prior notice. Any changes will be integrated in the latest release.

  • Page 2: Table Of Contents

    Contents Introduction............................. 2 1. Main Features ............................. 2 2. Applications ............................2 3. Hardware Description ......................... 3 4. Accessories ............................4 5. Specifications ............................5 Installation .............................. 5 III. Functions ..............................8 1. Switching your tracker ON/OFF ......................8 2. Changing your tracker's password ...................... 8 3.

  • Page 3: Introduction

    Introduction 104 PRO can locate any remote target by using Geographic Locating System and send instant SMS or Internet reports to the user by using GSM and GPRS network. It is an ideal security solution for your vehicle as it is able to send real time alerts and it enables you to immobilise your vehicle remotely at any time.

  • Page 4: Hardware Description

    3. Hardware Description 3.1 Front Face 3.2 Rear Face Built-in GPS ANT Built-in Built-in powerful magnet & large Battery LED Indicator EXT. GSM ANT EXT. GPS ANT 灯 3.3 Side Face & antenna switch SIM Slot MicroSD Slot ON/OFF EXT. Power, Relay 3.4 Side Face 3.5 Side Face Built-in shock sensor...

  • Page 5: Accessories

    4. Accessories Pictures Name Specs AC Adapter Input: AC 110-220V， Output DC: 1.5A，12V Cigarette lighter socket Charging adapter 3m cable GPS Antenna 2m cable GSM Antenna Harness 4PIN 12V/40A OR 24V/40A Relay (12v default, 24v optional)

  • Page 6: Specifications

    5. Specifications Content specifications DIM. 94mm*60mm*38mm Weight 300g Network GSM/GPRS Band 850/900/1800/1900Mhz GPS sensitivity -159dBm GPS Accuracy Cold status GPS Start time Hot status EXT. power DC 12 V -24V Sleep Current 1.8mA Deep sleep 0.6mA Operating Current GSM operating Current 68mA±3mA GPRS Current(data transfer) 82mA±10mA...
  • Page 7 1.3 If you intend to install in humid conditions, use weatherproof pouch accessory provided. 1.4 For permanent vehicle installation, use the 4 pin vehicle wiring loom supplied. WIRING DIAGRAM 2. Internal / External antenna switch If you wish to use your 104-PRO self contained, without connecting external antennas, please move this switch to INT position (default position).
  • Page 8 3. SIM Card Installation 3.1 Please make sure that your SIM card has been activated and that PIN code request is disabled. If you are using contract SIM card and would like to use GPRS tracking, make sure your SIM card's Internet is enabled. 104-PRO will only work with standard full size sim cards.

  • Page 9: Functions

    III. Functions Note: With SMS text message commands, you will notice that we have used “+” and “space” between some words; “+” between two words means they should be written as one word, with no spaces between. "space" between two words means you should leave one character space.

  • Page 10: Authorization Process

    Please note that you only need to change your password if you intend to share your tracker's phone number with other users and do not wish to give them access to its settings. Example : password123456 99999 Response: password OK 3.

  • Page 11: Sms Text Message Locating

    4. SMS text Message Locating If there aren't any authorized numbers set-up, 104 PRO will reply to all calls with a location report. If there are authorized numbers set-up, only authorized numbers will be able to receive location report from the tracker.

  • Page 12: Smart Update

    The tracker will upload its location at pre selected time intervals and distance. Example: distance123456 0050 Response: distance OK This will configure the 104 PRO to update its location every 50 meters. 5.3 Turning interval tracking "OFF" : To cancel interval tracking send SMS command “nofix+password” to your tracker. Example: nofix123456 6.

  • Page 13: Gps Drift Suppression

    7. GPS drift suppression 7.1 This function is deactivated by default. Send "suppress+password" to the tracker to activate, it will reply" suppress drift ok". The GPS data will stop updating if the vehicle is stationary . GPS data will update automatically once vehicle starts moving.

  • Page 14: Cell-Id Tracking (Lbs)

    9. Cell-ID locating (LBS) If 104 PRO is unable to establish a solid GPS fix, it will calculate its location using Cell-id info. Location reports will include the GPS coordinates of the last known position as well as a LAC code. You can also send command "address+password"...

  • Page 15: Voice Surveillance

    Response: time o 13. Voice Surveillance 104 Pro is in Tracking mode by default. When voice surveillance mode is activated, it will automatically answer incoming calls rather than replying with an SMS location report. To activate the voice surveillance mode, send SMS "monitor+password"...

  • Page 16: Data Logging

    14. Data Logging 14.1 Auto logging：If 104 PRO loses GSM or GPRS signal, it can store GPS information automatically on to the flash drive upon the pre-set conditions. When GSM signal is back to normal, all the event alerts will be auto-sent to the authorized numbers or live tracking server.

  • Page 17: Forwarding Incoming Sms Messages

    USB connection. 15. Forwarding incoming SMS messages 15.1 104 PRO can forward incoming messages from pre-set third party number . To activate this function, send "forward+password+space+third parties phone number" from an authorized phone number. The tracker will reply "forward ok", and start forwarding SMS messages received from that...

  • Page 18: Reboot

    Remote fuel resume Send “resume+password" to tracker, it will reply "Resume engine succeed", this means the 104 PRO will now resume the fuel & power supply. Example: resume123456 Response: Resume engine succeed 17. Reboot Send SMS “reset+password” to the tracker to restart the GSM module and will reply “reset ok”.
  • Page 19 Standby with shock sensor In standby with shock sensor mode 104-PRO will enter sleep mode if it has been stationary (no vibration) for 5 minutes. GPS module and LED lights will shut off, GSM module will still stay ON. As the GSM module will be ON, you will still be able to communicate with the unit directly.
  • Page 20 interval setting used for live tracking will override this the standby and keep the TK102-NANO awake so GPRS economy mode should also be activated. Please use both commands ; "sleep+password+space+deepshock" "less+space+gprs+password+space+on" Example: sleep123456 deepshock Response: sleep shock ok! Example: less gprs123456 on Response: sleep shock ok! Please note that by default each time the 104-PRO wakes up from deep sleep, it will send a notification SMS message to authorized numbers.
  • Page 21 To activate schedule work standby mode send schedule work sms command Gprs economy mode command; "schedule+password+space+time interval" "less+space+gprs+password+space+on" Time interval settings are ; m= minutes , h=hours, d= days. Maximum schedule setting is 30 days. Example: schedule123456 30m Example: schedule123456 5h Example: less gprs123456 on Response: sleep shock ok! Schedule work standby mode will provide the longest standby duration as...

  • Page 22: Alarms

    Switching standby modes OFF All standby modes can be switched off by sending SMS command: "sleep+password+space+off". Please note if you are using your 104-PRO in self contained , self powered mode, we do not recommend turning standby modes off as the battery standby duration will be reduced to 3 days.

  • Page 23: Multi-Area Management

    Example: stockade123456 51.460959, -2.622643; 51.456842, -2.604446 Response: stockade ok! You can obtain coordinates of any location from Google Maps by clicking on desired location and selecting "what's here?" 1.2 To Cancel: Send SMS “nostockade+password” to deactivate this function. Example: nostockade123456 Response: nostockade ok! 2.
  • Page 24 2.3 Rename and set distance Send command "rename+password+space+old name;new name,distanceM" to the tracker. If name is not repeated and area doesn't cover other areas, it will reply "rename ok!" if configuration was successful. Example: rename123456 area01;school,800M Response: rename ok! 2.4 Activate multi-area management Send SMS command "area+password+space+on"...

  • Page 25: Movement Alarm

    However, this may only occur if the 104 PRO is installed improperly in a place where it can't receive good signal.

  • Page 26: Over Speed Alarm

    4. Over Speed alarm 4.1 Over speed alarm will be triggered when tracker exceeds speed limit predetermined by you. Setup: Send SMS “speed+password+space+speed” to the tracker and it will reply “speed ok!”. This means that you have set up over speed alarm successfully. For example: “speed123456 080”...

  • Page 27: Shock Sensor Alarm

    6. Shock Sensor alarm 6.1 Setup: Shock sensor alarm is deactivated by default. To activate send SMS “shock+password” to the tracker, and it will reply “Shock is activated!”, this means shock sensor alarm has set up successfully. When the tracker detects vibration, it will send SMS “Sensor alarm+location”...

  • Page 28: Low Battery Alarm

    7. Low Battery alarm 8.1 Low battery alarm helps users to know when the battery of 104-PRO is low. It sends 3 notification SMS messages to authorized numbers; at %10, at %5 and just before it's completely flat. Low battery alarm is active by default, send SMS “lowbattery+password+space+off”...

  • Page 29: Restore To Factory Defaults

    Response: begin ok! V. Live internet tracking (GPRS) Setting GPRS tracking mode allows 104 PRO to upload its location data to a web server at preset intervals. Live tracking server provides access to real-time tracking, tracking history, statistics and many more.
  • Page 30 Note: 123456 is password of tracker, data is the user name for GPRS login, access is the password for GPRS login. 3. IP and Port Setup This setting will configure the 104 PRO to upload its location to the selected server. Send SMS “adminip+password+space+IP+space+port” to the tracker. It will reply “adminip ok”...
  • Page 31 104-PRO is set to work with our UK based server www.gpslive.co.uk's ip address and port by default. 4. Modes Switch Between “SMS” and “GPRS” 4.1 The default mode is “SMS”. 4.2 Send SMS “GPRS+password” to the unit, and it will reply “GPRS ok!” This means tracker has switched to “GPRS”...

  • Page 32: Live Tracking Server

    VI. Live tracking server All Rewire Security Products are offered with free lifetime subscription to our online live tracking platform. registration please visit www.rewiresecurity.co.uk. Once you have created an account please e-mail us with the imei number of your device and your registered e-mail address so we that we can activate your subscription.

  • Page 33: Led Indicator Status

    VIII. LED indicator status LED Indicator Status Red LED flash Low power Red LED ON Charging Power LED (Red) Red LED OFF Fully charged NO GSM reception GSM LED（Green） Quick flash for each second GSM Mode Slowly flash for each 3 seconds GPRS Mode No GPS reception GPS LED（Blue）...
